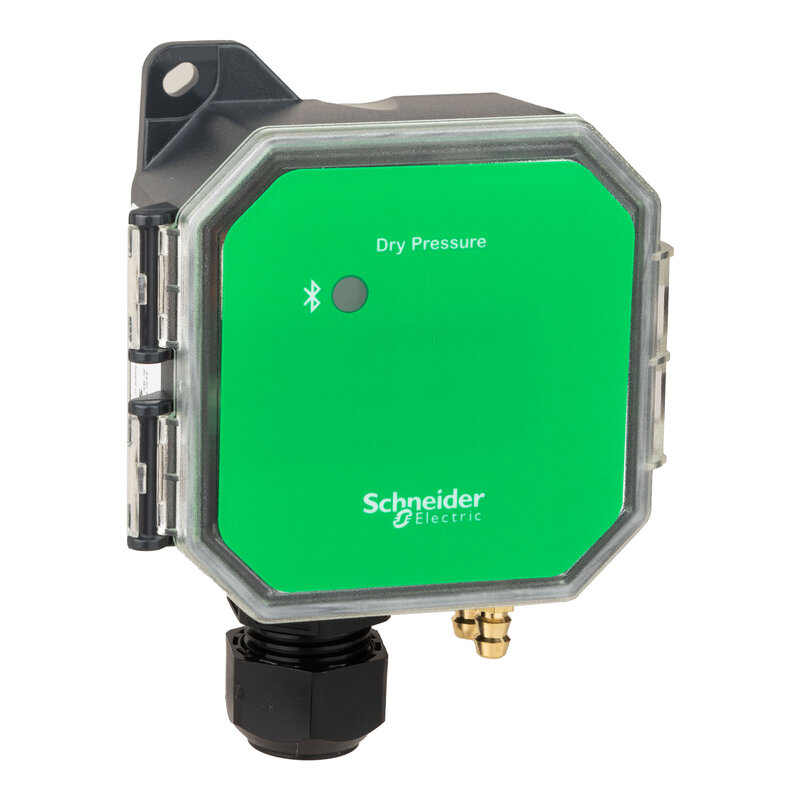

Differential Air Pressure Trans: For the monitoring of air ducts, filters and fans, SPD310-100/300/500/1000Pa
EPD302
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
Instruction sheet
|
Download |
|
Specification sheet
|
Download |
|
Catalog
|
Download |
|
CAD
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | EP |
| Produkt- oder Komponententyp | Drucktransmitter-Sensor |
| Sensor-Modell | EPD302 |
| Messwerttyp | Differenzdruck |
| Geräteanwendung | Überwachung des Kanaldrucks Filterüberwachung Gebläseüberwachung VAV-Regelung Luftgeschwindigkeitsüberwachung |
| Berstdruck | 5 psid (34,5 kPa) |
| Produktzertifizierungen | CE |
| Kontrollflüssigkeit | Luft Gas |
| Passende Größe | 6 mm (0,24 Zoll) |
| Passender Typ | Stecker |
| Schutzart (IP) | IP65 |
| Position | Betriebsraum |
| Montagehalterung | Kanal |
| Tiefe | 42 mm |
| Höhe | 112 mm |
| Durchmesser der Sonde | 7 mm |
| Sondenlänge | 188 mm |
| Produktgewicht | 0,125 kg |
| Breite | 88 mm |
| Abweichung der Druckmessung | Weniger als 0,5 % |
| Bereich der Druckmessung | 0 - 1 Zoll Wassersäule (0 - 250 Pa) 0 - 2,5 Zoll Wassersäule (0 - 500 Pa) 0 - 5 Zoll Wassersäule (0 - 1.000 Pa) 0 - 10 Zoll Wassersäule (0 - 2.500 Pa) |
| Umgebungstemperatur bei Betrieb | -20…60 °C |
| Normen | EN 61000-6-3 EN 61000-6-1 EN 61326-1 EN 61326-2-3 |
| Kalibrierungszertifikat | Kein(e) |
| Lokale Signalisierung | Rot/grün/blaue LED |
| [UH,nom] Bemessungs-Betriebsspannung | 12 - 30 V DC 24 V AC |
Zusatzmerkmale |
| Montagemodus | Platte |
| Ausgangstyp | Analog 3-adrig 0 - 5 V DC Analog 3 Drähte 0 - 10 V DC Analog 4 - 20 mA |
| Genauigkeit | ± 1 % FS |
| Material | Messing: Armatur |
| Elektrischer Anschluss | - AWG 22 |
| Displaytyp | LCD | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 15 cm |
| VPE 1 Breite | 21,1 cm |
| VPE 1 Länge | 7,4 cm |
| Verpackungsgewicht (Lbs) | 160 g | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 18 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| SCIP-Nummer | 57dc65ec-83cc-4ead-9500-efce8e489275 |
| Verpackung ohne Kunststoff | Ja |
| Rücknahme | Ja |
| CO2-Bilanz (kg CO2 eq.) | 1 |
| Total lifecycle Carbon footprint | 0 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 2.551601651702048 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 3 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.04877869103280818 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 0 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.03209242315981944 |
| CO₂-Fußabdruck der Installationsphase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 23.011071377349715 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 23 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.33019814350329074 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 0.3 kg CO2 eq. |
| Verpackung mit Recycling-Karton | Ja |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| Recyclingfähigkeitspotential in % | 33 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=EPD302_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=EPD302_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
