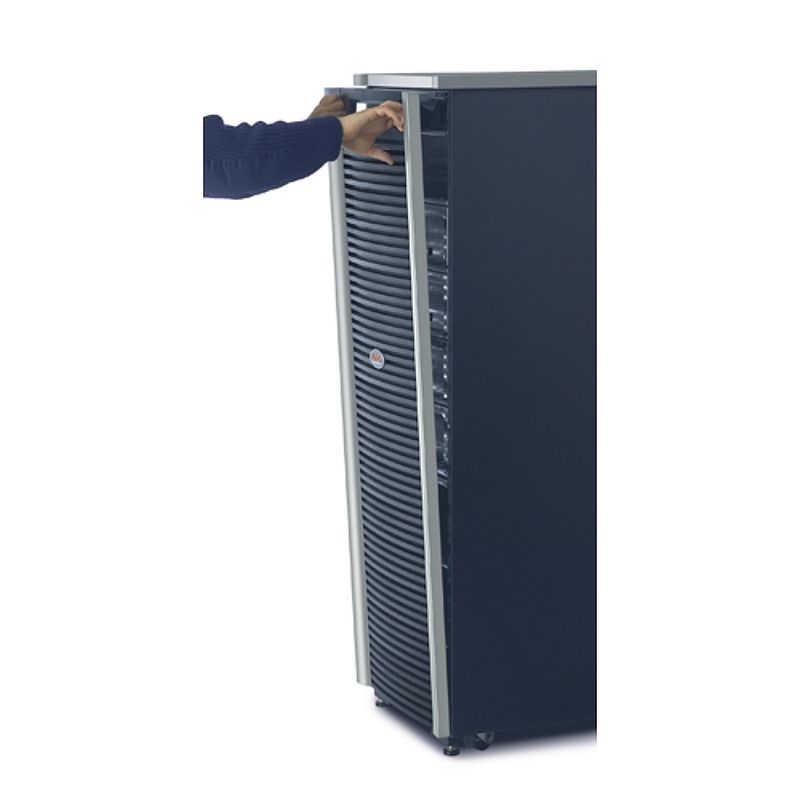

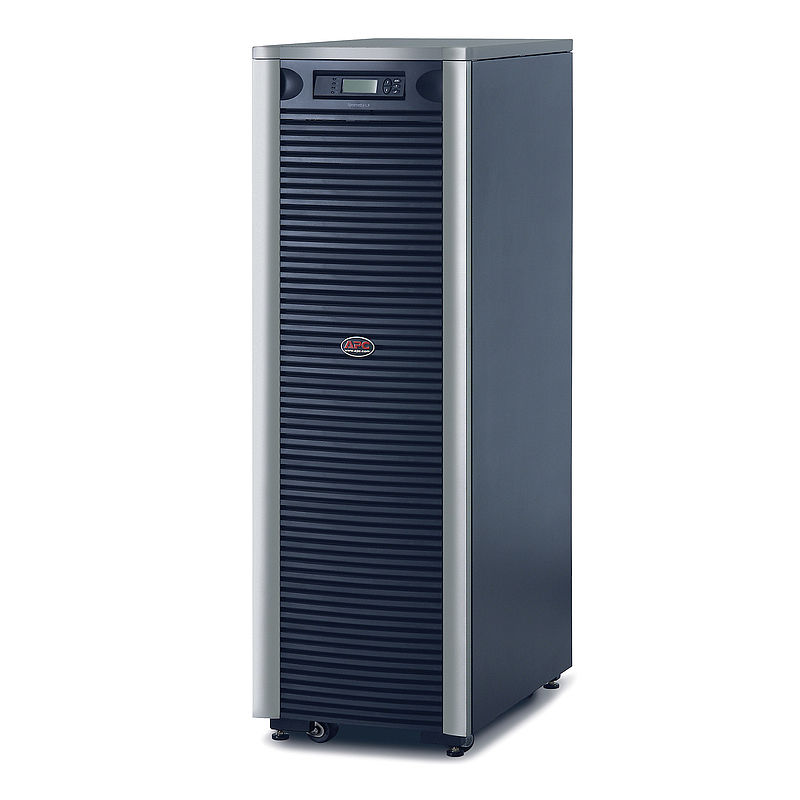

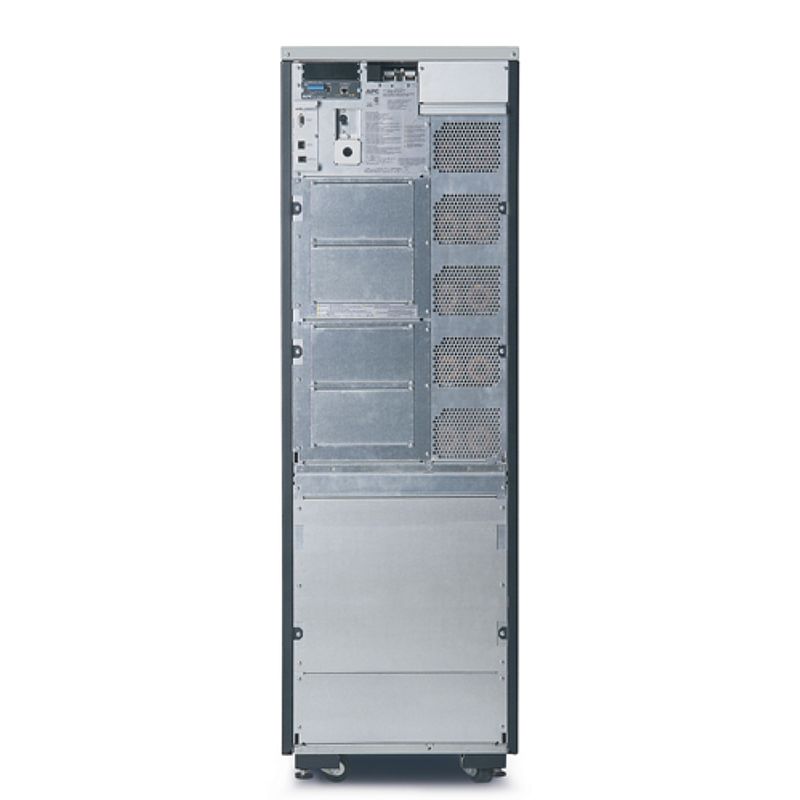

APC Symmetra LX 16 kVA, skalierbar auf 16 kVA N+1 Erweiterung Run Tower, 220/230/240 V oder 380/400/415 V
SYA16K16IXR
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
Technical Drawing
|
Download |
|
Specification guide
|
Download |
|
Instruction sheet
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Firmware
|
Download |
|
Circularity Profile
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
|
Quick start guide
|
Download |
Dieses Produkt ist kompatibel mit
Battery Accessories: Kompatible Produkte
Battery Accessories (8)
Service Bypass Panel Sensoren: Kompatible Produkte
Sensoren (2)
Leistungsmodule: Kompatible Produkte
Leistungsmodule (1)
Smart Slots: Kompatible Produkte
Smart Slots (1)
: Kompatible Produkte
(7)
: Kompatible Produkte
(7)
: Kompatible Produkte
(7)
: Kompatible Produkte
(7)
: Kompatible Produkte
(7)
: Kompatible Produkte
(7)
PDUs Schnittstellen-Anschlüsse: Kompatible Produkte
Schnittstellen-Anschlüsse (7)
Montage-Artikel: Kompatible Produkte
Montage-Artikel (2)
: Kompatible Produkte
(7)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Nicht zur Verwendung durch Verbraucher bestimmt. Redundante Hochleistungs-USV mit skalierbarer Kapazität und Überbrückungszeit für beengte Serverräume sowie Sprach- und Datennetzwerke | Hauptmerkmale |
| Main input voltage | 220 V AC 1 Phase 400 V AC 3 Phasen 230 V AC 1 Phase 240 V AC 1 Phase 380 V AC 3 Phasen 415 V AC 3 Phasen |
| Other input voltage | 220 V 240 V 380 V 415 V |
| Output voltage | 220 V AC 1 Phase 230 V AC 1 Phase 240 V AC 1 Phase |
| Other output voltage | 220 V 240 V |
| Rated power in W | 11200 W |
| Rated power in VA | 16000 VA |
| Output connection | Fest verdrahtet 3-adrig (H N + E) for 1 zone(s) |
| Input frequency | 45 - 65 Hz automatische Erfassung |
| Input connection | 1 fest verdrahtet 3-adrig (1PH + N + G) 1 fest verdrahtet 5-adrig (3P + N + E) |
| Efficiency at full load | 155 - 276 V 1:1 290 - 480 V 3:1 |
| Input harmonic distortion | Weniger als 7 % bei Volllast |
| Cos phi | 0,98 |
| Maximum configurable power in W | 11200 W |
| Harmonic distortion | Weniger als 5 % bei Volllast |
| Output frequency | 47 - 63 Hz Netzsynchronisation 60 Hz +/-0,1 % für 60 Hz Nominal nicht synchronisiert 50 Hz +/-0,1 % für 50 Hz Nominal nicht synchronisiert |
| Crest factor | Bis zu 5:1 |
| UPS topology | On-Line |
| Waveform type | Sinuswelle |
| Bypass type | Interner Bypass (automatisch und manuell) |
| Maximum output current | 73 A |
| Maximum configurable power in VA | 16000 VA | Zusatzmerkmale |
| Battery type | Bleisäurebatterie |
| Provided equipment | CD mit Software Dokumentations-CD Benutzerhandbuch Web/SNMP-Managementkarte |
| Additional specification | 4kVA power increments |
| Performance multiplier | 1 |
| Number of power module free slots | 1 |
| Number of power module filled slots | 4 |
| Redundant | Yes |
| Size UPS version | Internetanbindung Server Telekommunikation |
| UPS size | L |
| Value multiplier | 1 |
| Color | Schwarz Silber |
| Height | 1516 mm |
| Width | 483 mm |
| Depth | 726 mm |
| Product weight | 503,64 kg |
| Mounting location | Frontseite |
| Mounting preference | No preference |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | No |
| Curve equation | Efficiency |
| Curve fixed loss | 0,0352 |
| Curve load maximum | 100 % |
| Curve load minimum | 4 % |
| Curve proportional loss | 0,0265 |
| Curve square loss | 0,0252 |
| Curve x-axis maximum | 100 % |
| Curve test cond ID | Kurve wurde an die gemessenen Effizienzwerte angepasst. Alle Messungen wurden im normalen Betriebsmodus vorgenommen, unter typischen Umgebungsbedingungen mit Nenneingangsleistung und ohmscher Ausgangslast. |
| Curve x-axis minimum | 0 % |
| Curve x-axis title | Load |
| Curve x-axis unit | Percentage |
| Curve y-axis maximum | 100 % |
| Curve y-axis minimum | 50 % |
| Curve y-axis title | Efficiency |
| Curve y-axis unit | Percentage |
| Graph display | 1 |
| Operating temperature note | No |
| Included battery module | 9 |
| Empty battery slot | 4 |
| Typical recharge time | 7,5 h |
| Additional information | Konfigurierbar für 220, 230 oder 240 V Nennausgangsspannung |
| Battery charging power | 1035 W bewertet |
| Battery life | 3…5 Jahre |
| Extendable runtime | 1 |
| Free slot | 1 |
| Preinstalled device | Network management card 2 with environmental monitoring |

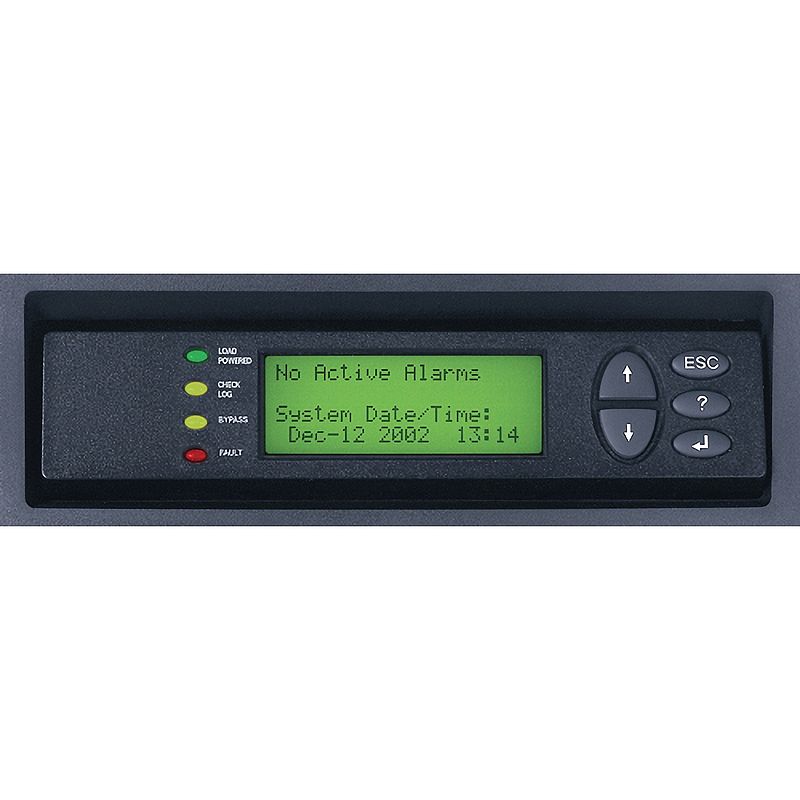

| Control panel | Multifunktions-LCD-Status- und Steuerkonsole |
| Emergency power off | Ja |
| Alarm | Akustische und sichtbare Alarme : priorisiert nach Schweregrad |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Symmetra LX |
| Battery type | Lead-acid internal included |
| UPS connectivity | Serial port Available expansion slot Pre-installed network management card 3 |
| Mounting mode | Tower | Allgemein |
| Tare power | 380 W | Montage |
| Product certification | C-Tick CE GOST VDE |
| Standard | EN 50091-1 EN 50091-2 EN 55022 Klasse A EN 55024 EN 60950 IEC 60950 |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage relative humidity | 0…95 % |
| Storage altitude | 0…4572 m |
| Acoustic level | 62 dBA |
| Heat dissipation | 3707 Btu/h | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 535,45 kg |
| VPE 1 Höhe | 188 cm |
| VPE 1 Breite | 99,7 cm |
| VPE 1 Länge | 59,9 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| CO2-Bilanz (kg CO2 eq.) | 48644 |
| Total lifecycle Carbon footprint | 48 644 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 7168.166627504 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 7 168 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 69.0850970745 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 69 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 66.8250910533 |
| CO₂-Fußabdruck der Installationsphase [A5] | 67 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 41159.3771078709 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 41 159 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 180.6589364389 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 181 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SYA16K16IXR_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SYA16K16IXR_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 66 |
