Spezifikationen

Hauptmerkmale

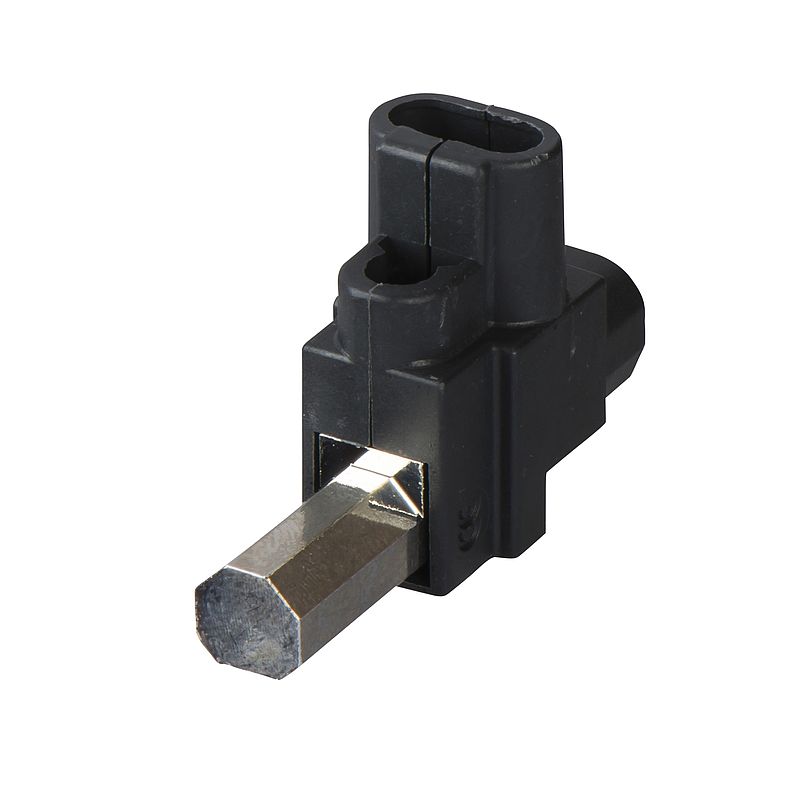

Produkt- oder Komponententyp Klemme
Zubehör / Teilekategorie Anschlusszubehör
Kompatible Produktfamilie ComPact ComPacT INS
Multi 9
Menge pro Satz Satz à 3
Zusatzmerkmale
Montagemodus Durch Schrauben
Lokalisierung am Gerät Auf Anschlussklemmen
[In] Bemessungsstrom 0…160 A
Verpackungseinheiten
VPE 1 Art PCE
VPE 1 Menge 1
VPE 1 Gewicht 45,000 g
VPE 1 Höhe 1,500 cm
VPE 1 Breite 4,500 cm
VPE 1 Länge 8,000 cm
VPE 2 Art BB1
VPE 2 Menge 20
VPE 2 Gewicht 988,000 g
VPE 2 Höhe 9,000 cm
VPE 2 Breite 11,700 cm
VPE 2 Länge 35,500 cm
VPE 3 Art S03
VPE 3 Menge 140
VPE 3 Gewicht 7,327 kg
VPE 3 Höhe 30,000 cm
VPE 3 Breite 30,000 cm
VPE 3 Länge 40,000 cm
Vertragliche Gewährleistung
Gewährleistung 18 months

Nachhaltigkeit

Environmental data
WEEE Das Produkt muss nach der spezifischen Abfallsammlung auf den Märkten der Europäischen Union entsorgt werden und darf nicht in Abfalleimer gelangen
SCIP-Nummer 90215406-b6bf-44f8-b463-8540d32a6f6b
Kreislaufwirtschaftsprofil Keine besonderen Recycling-Verfahren erforderlich
Verpackung ohne Kunststoff Nein
Verpackung mit Recycling-Karton Ja
Rücknahme No

Dokumente

Aktueller Filter
  • Dokumentenkategorie
  • Sprache
7 Dokumente
19096 China-RoHS-Erklärung
25/02/25 · Umweltzertifikat  (ROHS/REACH)
0,2 MB Download
multistandard protection for oem applications brochure multi9 15/02/25 · Broschüre 1,1 MB Download
distribution connectors for 3 cables - set of 3 - 3D CAD 15/02/25 · CAD 0,2 MB Download
ComPacT NSX - ComPacT INS INV - MasterPacT NW - DC-DC PV-DC EP catalog 15/02/25 · Katalog 74,9 MB Download
Multi9 - Catalog 19 December 2024 - Multistandard protection for OEM applications
15/02/25 · Katalog
49,5 MB Download
Installationsgeräte 15/02/25 · Katalog 36,5 MB Download
Insulated sub-distribution terminal - Instruction Sheet
15/02/25 · Gebrauchsanleitung
0,3 MB Download
