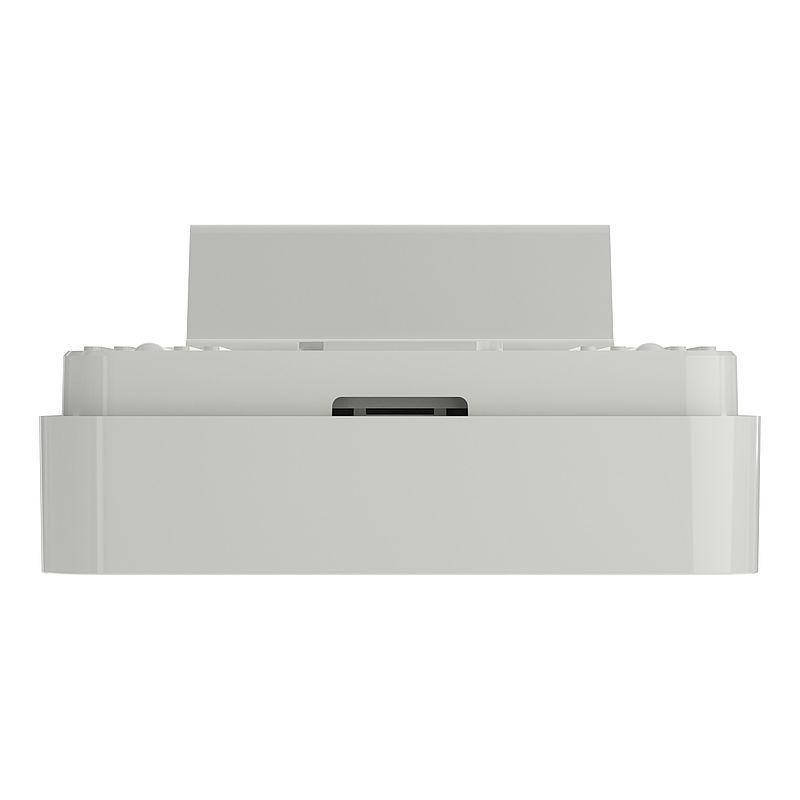

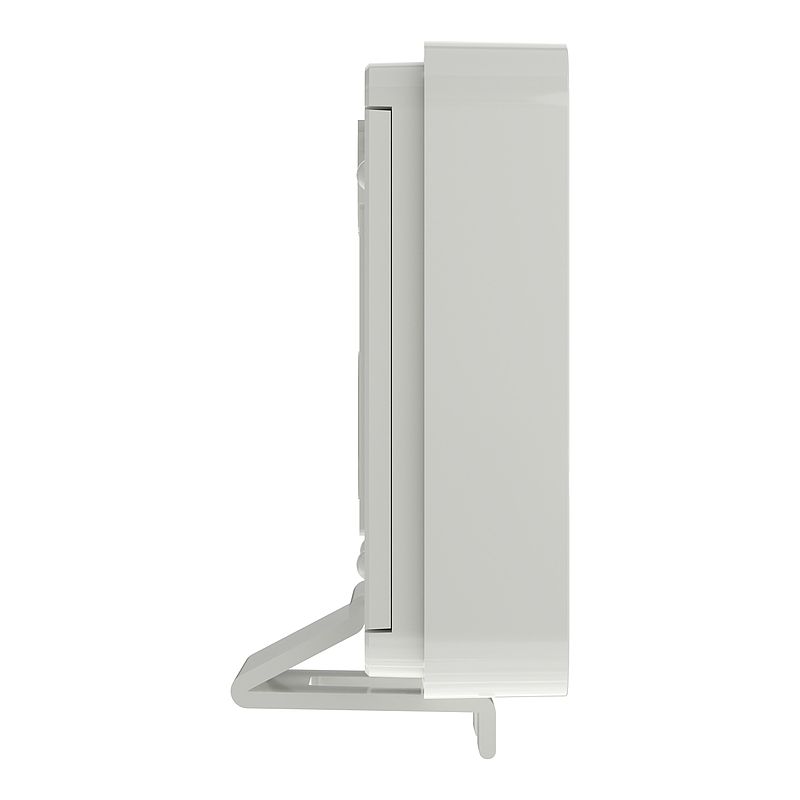

Wiser Raumthermostat mit Display

CCTFR6400

Hauptdokumente

Produktdatenblatt Download
Declaration of Conformity (Sustainability) Download
System user guide Download
Declaration of conformity Download
Circularity Profile Download
Presentation Video anzeigen
Instruction sheet Download
User guide Download
Catalog Download
Brochure Download
Handout Download
Environmental Disclosure Download
Technical illustration Download

Dieses Produkt ist kompatibel mit


Spezifikationen

Hauptmerkmale
Baureihe Wiser
Baureihe Wiser
Produkt- oder Komponententyp Angeschlossener Thermostat
Batterietyp AA alkalisch 1,5 V
Farbton Weiß (RAL 9003)
Kompatibilität des Konzentrators Wiser hub Generation 2
Name der mobilen App Wiser Home
Zusatzmerkmale
Geliefertes Zubehör 2 x Batterien
1 x Wandhalterung
1 x Standfuß
Typ der Technologie Elektronisch
Geräteanwendung Raum
Displaytyp Integriertes Farb-TFT-LCD Display 2,4 Zoll
Funktion verfügbar Mit Feuchtesensor
Angezeigte Informationen Raumtemperatur
Relative Luftfeuchtigkeit
Temperatur-Sollwert
Batteriestand
Boost-Status
Heizungssymbol
Signalstatus
Kommunikationsnetztyp Drahtlos ZigBee (2,4 GHz), 2,5 mW at < 50 m
Max. Funkleistung 13 dBm (20 mW)
[Sd] Schaltabstand 0…30 m
Kontrolltyp 2 Touch-Typ, für Temperatureinstellung
1 Touch-Typ, für Temperaturerhöhung
durch mobile Anwendung
Fernsteuerung
Lokale Signalisierung LED Blitzlicht rot für keine Signalunterbrechung
LED Blitzlicht rot für Anzeige für schwache Batterie
Testbezeichnung Kugeldruck 75°C
Software-Klasse Klasse A
Montageort Wandmontage
Montagehalterung Wandhalterung
Standfuß
Breite 76 mm
Höhe 76 mm
Tiefe 25 mm
Max. Anzahl kompatibler Produkte Wiser - Nabe
Produktspezifische Anwendung Heizung
Montage
Umgebungstemperatur bei Betrieb 0…45 °C
Umgebungstemperatur bei Lagerung -10…55 °C
Temperatureinstellungsbereich 5…35 °C
0,5 °C pro Schritt
Relative Luftfeuchtigkeit 25…90 % Betrieb
15…95 % Speicher
Schutzart (IP) IP20
Normen EN 60730-1
EN 60730-2-7
EN 60730-2-9
EN 300-328
Produktzertifizierungen CE
Richtlinien 2014/53/EU - Funkanlagenrichtlinie
2006/66/EC - Batterierichtlinie
Verpackungseinheiten
VPE 1 Art PCE
Anzahl der Geräte pro Packung 1
Verpackungsgewicht (Lbs) 161,000 g
VPE 1 Höhe 5,500 cm
VPE 1 Breite 8,100 cm
VPE 1 Länge 8,500 cm
VPE 2 Art S03
VPE 2 Menge 69
VPE 2 Gewicht 11,700 kg
VPE 2 Höhe 30,000 cm
VPE 2 Breite 30,000 cm
VPE 2 Länge 40,000 cm
Vertragliche Gewährleistung
Gewährleistung 18 Monate

Nachhaltigkeit

Nachhaltigkeit
Frei von REACh-SVHC Ja
EU-RoHS-Richtlinie Konform mit Ausnahmen
EU-RoHS-Deklaration
Quecksilberfrei Ja
Sustainable packaging Ja
Verpackung ohne Kunststoff Ja
Verpackung mit Recycling-Karton Ja
Rücknahme Nein
CO2-Bilanz (kg CO2 eq.) 8
Total lifecycle Carbon footprint 8 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3] 5.5585481999225
CO2 Fußabdruck am Ende der Betriebsdauer ​ 6 kg CO2 eq.
Carbon footprint of the distribution phase [A4] 0.0887526913618265
Durchschnittlicher Prozentsatz der ReponsibleSteel zertifizierten Metalle 0.1 kg CO2 eq.
Carbon footprint of the installation phase [A5] 0.0311154088990281
CO2 Fußabdruck während der Einrichtung 0 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6] 1.7576236320879
Carbon footprint of the use phase [B2, B3, B4, B6] 2 kg CO2 eq.
Carbon footprint of the end-of-life phase [C1 to C4] 0.440469518780892
Carbon footprint of the end-of-life phase [C1 to C4] 0.4 kg CO2 eq.
WEEE Label Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen.
