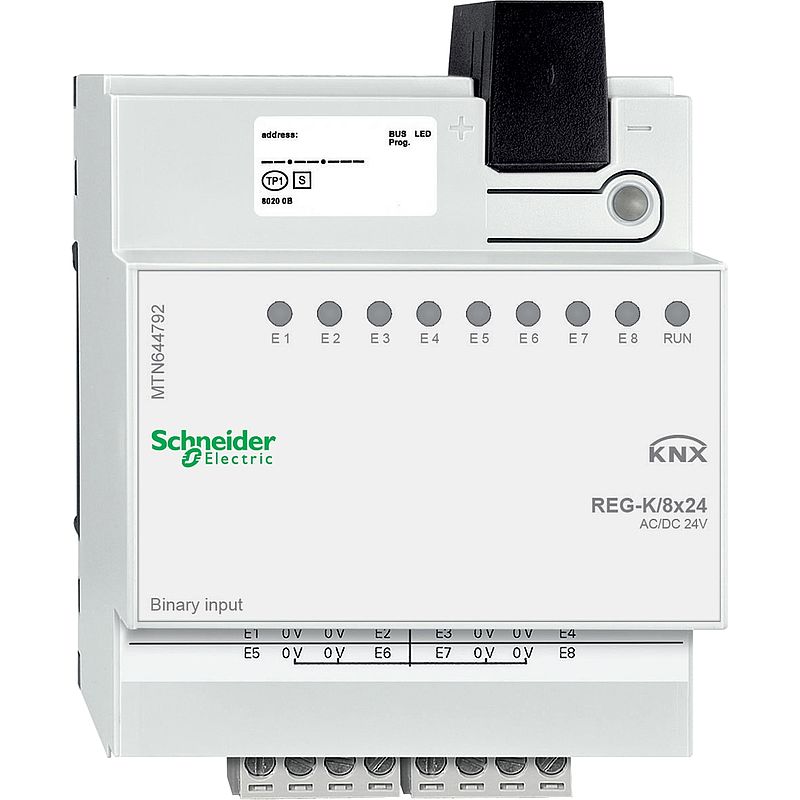

Binäreingang REG-K/8x24, lichtgrau
MTN644792
Farbton: Hellgrau
Materialpreisgruppe
: G2
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
User guide
|
Download |
|
Declaration of conformity
|
Download |
|
BIM Model
|
Download |
|
Software - Data Library
|
Download |
|
Other technical guide
|
Download |
|
Certificate
|
Download |
|
Catalog
|
Download |
|
CAD
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
Dieses Produkt ist kompatibel mit
Softwares: Kompatible Produkte
Softwares (1)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | SpaceLogic KNX |
| Produkt- oder Komponententyp | Binäreingang |
| Bustyp | KNX |
| Material | Kunststoff |
| Farbton | Hellgrau |
| Baureihe | SpaceLogic KNX |
| Stromversorgungs-Eingangsstrom | 18 mA | Zusatzmerkmale |
| Gesamtzahl 18-mm-TE | 4 |
| Befestigung Geräteverdrahtung | DIN-Schiene |
| [Ue] Bemessungs-Betriebsspannung | 24 V AC/DC 50 Hz |
| Anzahl der Eingänge | 8 |
| Eingangstyp | Binär |
| Lokale Signalisierung | LED |
| Hauptfarbton | Hellgrau | Montage |
| Schutzart (IP) | IP20 | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 232,000 g |
| VPE 1 Höhe | 8,200 cm |
| VPE 1 Breite | 13,400 cm |
| VPE 1 Länge | 15,900 cm |
| VPE 2 Art | CAR |
| VPE 2 Menge | 10 |
| VPE 2 Gewicht | 2,700 kg |
| VPE 2 Höhe | 19,800 cm |
| VPE 2 Breite | 30,900 cm |
| VPE 2 Länge | 40,400 cm | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 18 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| Total lifecycle Carbon footprint | 11 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 11 |
| Carbon footprint of the manufacturing phase [A1 to A3] | 2.2388358470886103 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 2 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.40909978479228803 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 0.4 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.07075037098432746 |
| CO₂-Fußabdruck der Installationsphase [A5] | 0.1 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 8.105474318908046 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 8 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.5340667435823618 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 0.5 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.schneider-electric.com/files?p_Doc_Ref=MTN644792_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| SCIP-Nummer | E8633433-f0bd-4c71-9f86-14eae4e071b8 |
| Durchschnittlicher Prozentsatz der ReponsibleSteel zertifizierten Metalle | Halogenfreies Produkt |
| PVC-frei | Ja |
| REACh-Verordnung | https://download.schneider-electric.com/files?p_Doc_Ref=MTN644792_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
26 Dokumente
| Merten Katalog
15/09/25 · Catalog |
81,4 MB | Download |
| SpaceLogic KNX CAD Library-2D DWG
04/04/25 · CAD |
15,7 MB | Download |
| MTN644792 REACh-Erklärung
04/04/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| MTN644792 EU-RoHS-Erklärung
04/04/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| MTN644792 China-RoHS-Erklärung
04/04/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| KNX Catalogue 05-2024
15/03/25 · Catalog |
84,5 MB | Download |
| EU-megfelelőségi nyilatkozat 15/03/25 · Declaration of conformity | 0,0 MB | Download |
| KNX MTN644792 Dimension/Wiring/Symbol -2D CAD Drawing
15/03/25 · CAD |
0,0 MB | Download |
| SpaceLogic KNX- Entrada binária REG-K/8x24-Instruções de utilização (PT) 15/03/25 · User guide | 0,2 MB | Download |
| SpaceLogic KNX-Entrada binaria REG-K-Descripción del software ETS (ES) 15/03/25 · User guide | 0,8 MB | Download |
| SpaceLogic KNX-Entrée binaire REG-K-Description du logiciel ETS (FR) 15/03/25 · User guide | 0,8 MB | Download |
| SpaceLogic KNX- Binary Input REG-K/8x24-Operating instructions (EN) 15/03/25 · User guide | 0,4 MB | Download |
| SpaceLogic KNX- Binäreingang REG-K/8x24-Gebrauchsanweisung (DE) 15/03/25 · User guide | 0,3 MB | Download |
| KNX Binary input REG-K/8x24, light grey-Technical leaflet
15/03/25 · Other technical guide |
0,1 MB | Download |
| MTN644792-00 Software ETS4-ETS5.x (knxprod) 15/03/25 · Software - Data Library | 0,8 MB | Download |
| MTN644792-00 Software ETS3d-ETS5.x (Vdx) 15/03/25 · Software - Data Library | 5,7 MB | Download |
| KNX Schneider Electric BIM data (Building Information Modeling)
15/03/25 · BIM Model |
67,4 MB | Download |
| SpaceLogic KNX- Binary Input REG-K-ETS Software Description (EN) 15/03/25 · User guide | 0,6 MB | Download |
| SpaceLogic KNX- Binäreingang REG-K-ETS-Software-Beschreibung (DE) 15/03/25 · User guide | 0,6 MB | Download |
| DoC for commutators 15/02/25 · Declaration of conformity | 0,8 MB | Download |
| KNX Certificate 15/02/25 · Certificate | 0,1 MB | Download |
| EU declaration of conformity 15/10/24 · Declaration of conformity | 0,8 MB | Download |
| UK Declaration of Conformity 17/09/24 · Declaration of conformity | 0,4 MB | Download |
| SpaceLogic KNX- Entrée binaire REG-K-Mode d'emploi (FR) 12/09/24 · User guide | 0,2 MB | Download |
| 01/01/70 Environmental Disclosure | 0,0 MB | Download |
| 01/01/70 Circularity Profile | 0,0 MB | Download |
