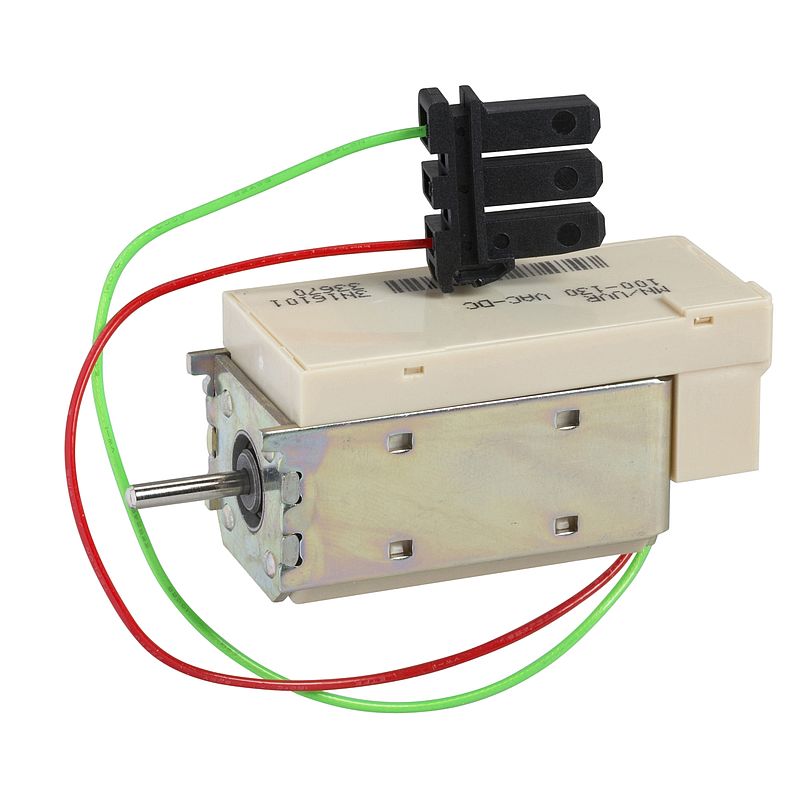

Arbeitsstromauslöser/Einschaltspule MX ou XF,unverz.-24-30VDC/AC,50-60Hz
33659
Materialpreisgruppe
: DA
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Substitution document
|
Download |
|
Instruction sheet
|
Download |
|
User guide
|
Download |
|
Catalog
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
|
Declaration of conformity
|
Download |
|
Certificate
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | ComPacT neue Generation |
| Baureihe | ComPacT NS630b - 1600 neue Generation ComPacT NS1600b - 3200 neue Generation Galaxy VL |
| Kurzbezeichnung des Geräts | MX |
| Produkt- oder Komponententyp | Spannungsauslösung |
| Geräteanwendung | Steuerung |
| Typ des Spannungsauslösers | Öffnerspule Unverzögerter Spannungsauslöser |
| Steuerungstyp | Standard |
| [Uc] Steuerkreisspannung | 24 V AC 50 Hz 24 - 30 V DC |
| Montageart des Leistungsschalters | Fest |
| Kompatible Produktfamilie | ComPact ComPact NS630b - 1600 ComPact ComPact NS1600b - 3200 |
| Kompatible Produktfamilie | Galaxy VL | Zusatzmerkmale |
| Betriebsschwelle | 0,7 - 1,1 x Un Öffnung |
| [tA] Antwortzeit | 50 ms +/-10 % für ComPact NS630b - 1600 50 ms +/-10 % für ComPact NS1600b - 3200 55 ms +/-10 % für MasterPact NT 70 ms +/-10 % für MasterPact NW |
| Stromversorgung-Halteleistung | 4,5 VA |
| Zubehör / Teilekategorie | Ersatzteil für MasterPact NT Ersatzteil für MasterPact NW Ersatzteil für ComPacT NS630b - 1600 neue Generation Ersatzteil für ComPacT NS1600b - 3200 neue Generation |
Verpackungseinheiten |
| VPE 1 Art | PCE |
| VPE 1 Menge | 1 |
| VPE 1 Höhe | 3,300 cm |
| VPE 1 Breite | 6,000 cm |
| VPE 1 Länge | 8,400 cm |
| VPE 1 Gewicht | 151,800 g |
| VPE 2 Art | BB1 |
| VPE 2 Menge | 10 |
| VPE 2 Höhe | 9,000 cm |
| VPE 2 Breite | 18,500 cm |
| VPE 2 Länge | 13,200 cm |
| VPE 2 Gewicht | 1,570 kg |
| VPE 3 Art | S03 |
| VPE 3 Menge | 120 |
| VPE 3 Höhe | 30,000 cm |
| VPE 3 Breite | 30,000 cm |
| VPE 3 Länge | 40,000 cm |
| VPE 3 Gewicht | 19,303 kg | Vertragliche Gewährleistung |
| Gewährleistung | 18 months |
Nachhaltigkeit
Environmental data
EU-RoHS-Richtlinie
|
Konform mit Ausnahme EU-RoHS-Deklaration |
|
Quecksilberfrei
|
Ja |
| SCIP-Nummer | Ad764790-535b-4a4e-825e-50fd804b5824 |
| Verpackung ohne Kunststoff | Ja |
| Verpackung mit Recycling-Karton | Ja |
| WEEE | Das Symbol der durchgestrichenen Mülltonne weist darauf hin, dass Elektro- bzw. Elektronik(alt)geräte nicht im Hausmüll entsorgt werden dürfen, sondern vom Besitzer einer getrennten Sammlung für Elektro- und Elektronikaltgeräte zugeführt werden müssen. |
| Halogengehalt Leistung | Produkt enthält Halogen über den Schwellenwerten |
| Rücknahme | No |
| CO2-Bilanz (kg CO2 eq.) | 3 |
| PVC-frei | Ja |
| Global warming ; Total life cycle | 3 kg CO2 eq. |
| Nachhaltige Verpackung | Ja |
