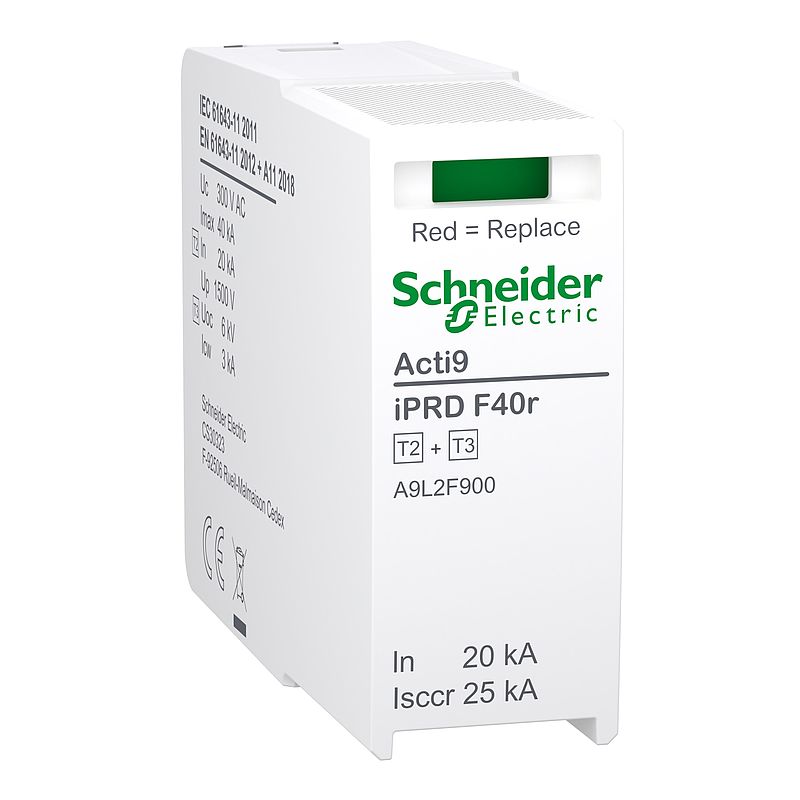

Ersatzschutzmodul für Überspannungsableiter iPRD F40r 3P/3P+N, Typ 2+3, L-PE/N Modul, integr. Sicherung

A9L2F900

Hauptdokumente

Produktdatenblatt Download
Instruction sheet Download
Promotional video Video anzeigen
Brochure Download
Declaration of Conformity (Sustainability) Download
CAD Download
Environmental Disclosure Download
Declaration of conformity Download
Other technical guide Download
Certificate Download
Offer Marketing Illustration Download

Spezifikationen

Hauptmerkmale
Produktbereich Acti9
Produkt- oder Komponententyp Kartusche
Kurzbezeichnung des Geräts iPRD F40r
Kompatible Produktfamilie Acti9 iPRD F40r
Typ des Überspannungsableiters Elektrisches Verteilungsnetzwerk
Normen IEC 61643-11:2011
EN 61643-11:2012
EN 61643-11:2018/A11
Produktzertifizierungen CE
Zusatzmerkmale
Typ der Überspannungsableiter-Klasse Typ 2 + 3
Technologie des Überspannungsableiters MOV
Produktbestimmung iPRD F40r
geliefertes Zubehör Sicherung (integriert)
Erdungssystem TT
TN-S
TN-C
[Ue] Bemessungs-Betriebsspannung 240 V AC 50/60 Hz
[In] Nennableitstoßstrom Differentialbetrieb: 20 kA (L/N)
[Imax] Max. Ableitstoßstrom Differentialbetrieb: 40 kA L/N
[Uc] höchste Dauerspannung Differentialbetrieb: 300 V L/N
[Up] Schutzpegel Differentialbetrieb 1,5 kV L/N
[Uoc] Leerlaufspannung 6000 V Differentialbetrieb L/N
[Ut] Zeitweilige Überspannung TOV 337 V L/N 5 s Festigkeit
442 V L/N 120 min sicherer Ausfallmodus
Kurzschlussfestigkeit 50 kA
Lokale Signalisierung Betriebszustand: Kennbit (grün)
Fehleranzeige: Kennbit (rot)
Montagemodus Steckbar
Montagehalterung In das SPD-Modul
9-mm-Raster 2
Höhe 45 mm
Breite 18 mm
Tiefe 57,2 mm
Produktgewicht 69 g
Farbe Weiß (RAL 9003)
Material Thermoplastisch
[tA] Antwortzeit < 25 ns
Produktbestimmung iPRD F40r
Montage
Schutzart (IP) IP20
Relative Luftfeuchtigkeit 5…95 %
Betriebshöhe 0 - 4000 m
Umgebungstemperatur bei Lagerung -40…85 °C
Verpackungseinheiten
VPE 1 Art PCE
Anzahl der Geräte pro Packung 1
VPE 1 Höhe 3,200 cm
VPE 1 Breite 8,800 cm
VPE 1 Länge 5,800 cm
Verpackungsgewicht (Lbs) 78,000 g
VPE 2 Art S02
VPE 2 Menge 24
VPE 2 Höhe 15,000 cm
VPE 2 Breite 30,000 cm
VPE 2 Länge 40,000 cm
VPE 2 Gewicht 2,378 kg
VPE 3 Art P12
VPE 3 Menge 768
VPE 3 Höhe 75,000 cm
VPE 3 Breite 80,000 cm
VPE 3 Länge 120,000 cm
VPE 3 Gewicht 88,128 kg
Vertragliche Gewährleistung
Garantie (in Monaten) 18

Nachhaltigkeit

Nachhaltigkeit
Frei von giftigen Schwermetallen Ja
Quecksilberfrei Ja
Verpackung ohne Kunststoff Ja
Verpackung mit Recycling-Karton Nein
SCIP-Nummer A9614fa2-07f8-47d1-a2fe-e27b32003d8d
Rücknahme Ja
Circular Econmomy-Eignung Keine besonderen Recycling-Verfahren erforderlich
Total lifecycle Carbon footprint 2 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3] 1.4185443141144496
CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] 1 kg CO2 eq.
Carbon footprint of the distribution phase [A4] 0.017634402978309236
CO₂-Fußabdruck der Distributionsphase [A4] 0 kg CO2 eq.
Carbon footprint of the installation phase [A5] 0.12393787777297285
CO₂-Fußabdruck der Installationsphase [A5] 0.1 kg CO2 eq.
CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] 0 kg CO2 eq.
Sustainable packaging Nein
Carbon footprint of the end-of-life phase [C1 to C4] 0.28810060211736144
CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] 0.3 kg CO2 eq.
CO2-Bilanz (kg CO2 eq.) 2
WEEE-Kennzeichnung Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen.
Recyclingfähigkeitspotential in % 51
EU-RoHS-Richtlinie https://download.se.com/files?p_Doc_Ref=A9L2F900_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29
REACh-Verordnung https://download.se.com/files?p_Doc_Ref=A9L2F900_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29
PVC-frei PVC-freies Produkt
