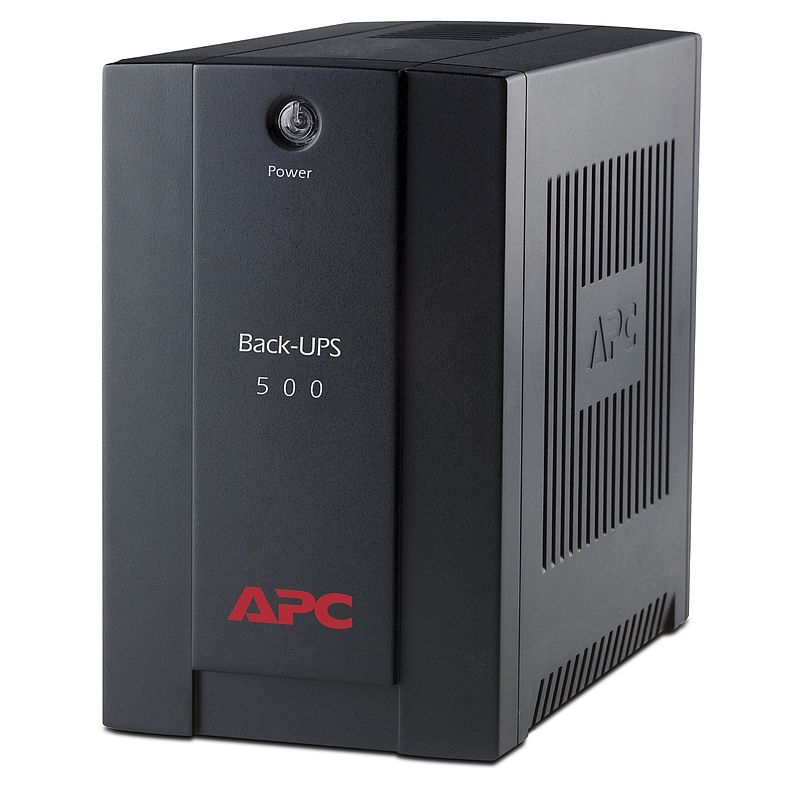

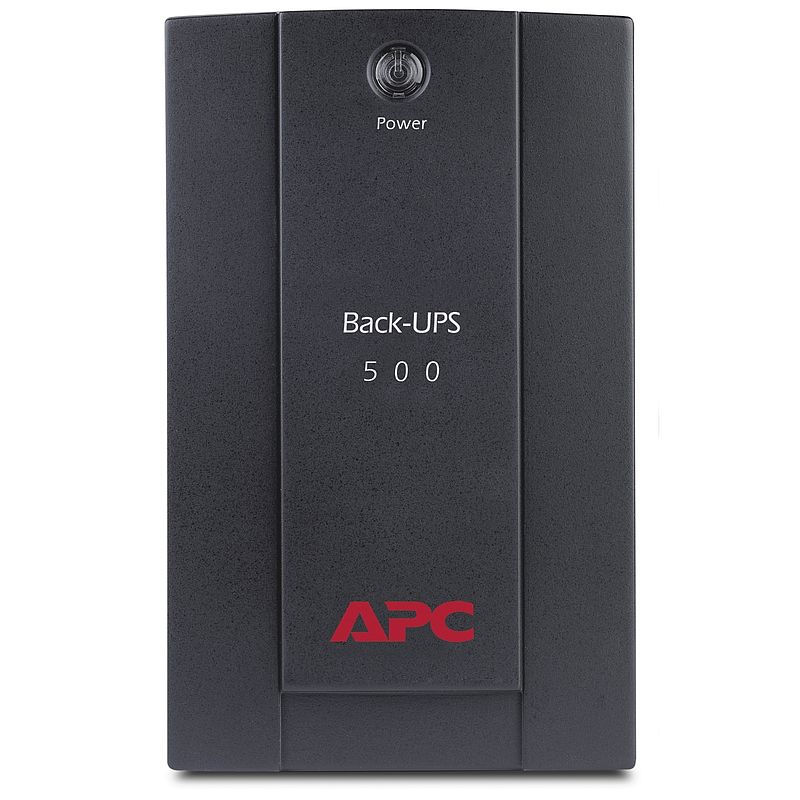

APC Back-UPS 500 VA, AVR, IEC-Ausgänge, Batterie 12V, 6.4Ah
BX500CI
Lieferbar solange Restbestän…
EAN Code: 0731304307365
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
Circularity Profile
|
Download |
|
Brochure
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Software - Release
|
Download |
|
Environmental Disclosure
|
Download |
Dieses Produkt ist kompatibel mit
: Kompatible Produkte
(1)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 230 V |
| Rated power in W | 300 W |
| Rated power in VA | 500 VA |

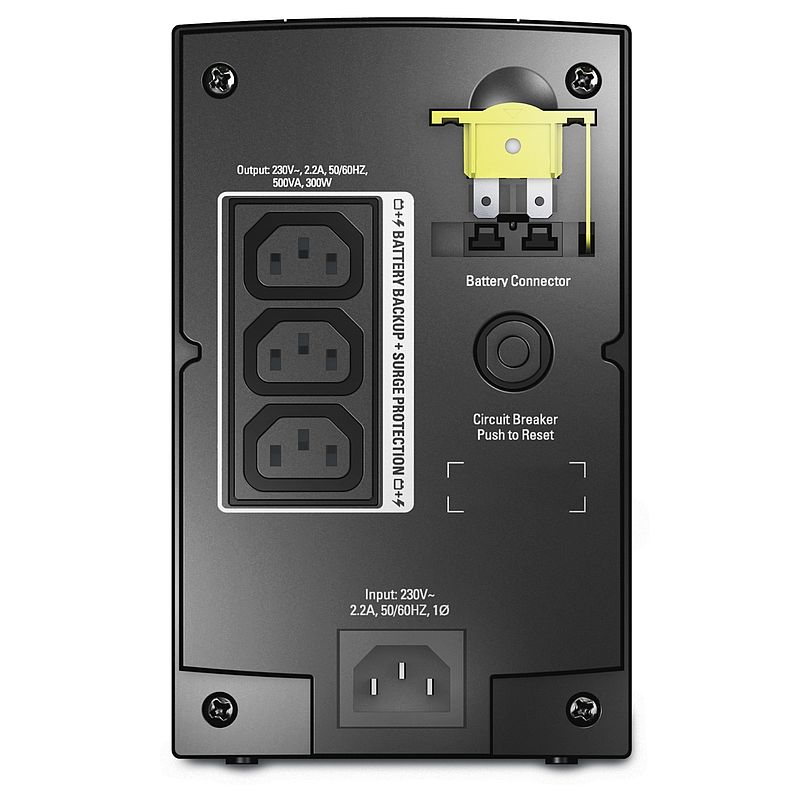

| Output connection | 3 IEC 60320 C13 1 IEC-Steckbrücken |
| Input frequency | 45 - 65 Hz |
| Efficiency at full load | 160 - 280 V |
| Maximum input current | 2 A |
| Switching current capacity | 7 A |
| Maximum configurable power in W | 300 W |
| Output frequency | 50 Hz Netzsynchronisation 50 Hz +/-0,1 % für 50 Hz Nominal nicht synchronisiert |
| UPS topology | Line Interactive |
| Waveform type | Stufenweise Annäherung an eine Sinuswelle |
| Maximum configurable power in VA | 500 VA |
| Transfer time | 6 ms typisch, 10 ms max. |
| Input connection | IEC 60320 C13 | Zusatzmerkmale |
| Cable length | 1,8 m |
| Number of cables | 1 |
| Additional specification | Entry level |
| Redundant | No |
| Color | Schwarz |
| Height | 185 mm |
| Width | 115 mm |
| Depth | 213 mm |
| Product weight | 5,2 kg |
| Mounting support | Desktop |
| Mounting preference | No preference |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | No |
| Battery capacity | 6,4 AH |
| Control panel | LED Statusanzeige mit On-Line: Batteriebetrieb |
| Surge energy rating | 273 J |
| Control panel | LED-Statusanzeige mit On-Line : auf Batteriebetrieb : Batterie und Überlastungsanzeigen ersetzen |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : Überlast-Dauertonalarm |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Back-UPS | Montage |
| Product certification | CE |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage relative humidity | 0…95 % |
| Storage altitude | 0…15240 m |
| Acoustic level | 45 dBA |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Batterien und Überbrückungszeit |
| Battery voltage | 12 V |
| Battery charging power | 4700 W bewertet |
| RBC quantity | 1 |
| Battery type | Bleisäurebatterie | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 5,68 kg |
| VPE 1 Höhe | 25,7 cm |
| VPE 1 Breite | 29,1 cm |
| VPE 1 Länge | 19 cm |
| SCC14 | 60731304307367 |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 USV|12 Batterie |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| SCIP-Nummer | 2865c725-ae95-4049-a9bf-6bb481ddb592 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Nein |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=BX500CI_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=BX500CI_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
