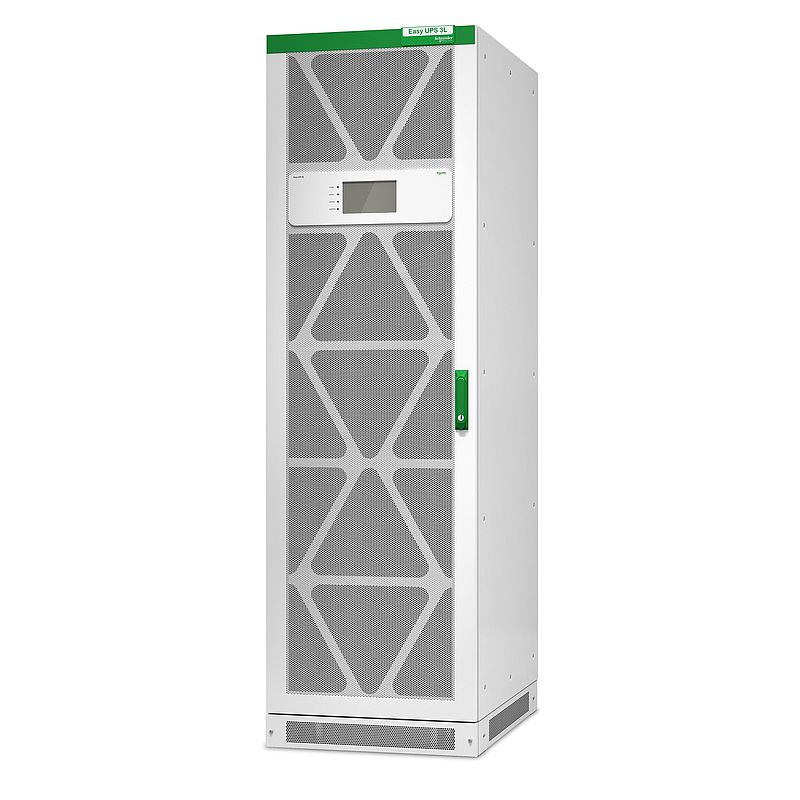

Easy UPS 3L 400kVA 400V 3:3 UPS, Startup 5x8
E3LUPS400KHS
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
Technical Drawing
|
Download |
|
Specification guide
|
Download |
|
BIM Model
|
Download |
|
User guide
|
Download |
|
Brochure
|
Download |
|
Promotional video
|
Video anzeigen |
|
Certificate
|
Download |
|
Certificate of Origin
|
Download |
|
Handout
|
Download |
|
Catalog
|
Download |
|
Circularity Profile
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
Zubehörteile
Ersatzteil-Kits Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (1)
Kommunikations-Artikel: Kompatible Produkte
Kommunikations-Artikel (1)
Batterien Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Easy-to-configure, easy-to-use and easy-to-service 400 kVA 3 phase UPS with an exceptional combination of competitive specifications, compact footprint, and highly available parallel and redundant designs. The EcoStruxure connected Schneider Electric Easy UPS 3L is the easy choice for business continuity on your shop floor or in your electrical room. Includes 5x8 start-up service. | Hauptmerkmale |
| Main input voltage | 400 V AC 3 Phasen |
| Other input voltage | 380 V 415 V |
| Output voltage | 400 V AC 3 Phasen |
| Other output voltage | 380 V 415 V |
| Rated power in W | 400 kW |
| Rated power in VA | 400 kVA |
| Maximum input current | 719 A |
| Max short time withstand current | 35 kA |
| Input harmonic distortion | Weniger als 3 % bei Volllast |
| Load power factor | 0,5 voreilend bis 0,5 nacheilend ohne Leistungsminderung |
| Efficiency at full load | 323 - 477 V |
| Input frequency | 40 - 70 Hz |
| Maximum configurable power in VA | 400 kVA |
| Maximum configurable power in W | 400 kW |
| Output frequency | 50 Hz Netzsynchronisation 60 Hz Netzsynchronisation |
| Output harmonic distortion | < 2% linear load and < 4% non-linear load |
| Output overload operation | 10 Minuten bei 125 % und 60 Sekunden bei 150 % |
| UPS topology | Online-Doppelwandlung | Zusatzmerkmale |
| Provided equipment | Staubfilter Installationshandbuch Inbetriebnahme-Service |
| Color | Weiß (RAL 9003) |
| Height | 197 cm |
| Width | 60 cm |
| Depth | 85 cm |
| Product weight | 538 kg |
| USB compatible | Yes |
| Maximum short-circuit current | 35 kA |
| Control panel | LCD-Benutzeroberfläche mit Touchscreen |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Easy UPS 3L |
| Battery type | Lead-acid external | Montage |
| Product certification | CE EAC RCM |
| Ambient air temperature for operation | 0…30 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 4.921 ft |
| Ambient air temperature for storage | -25…55 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…14999,8 m |
| Acoustic level | 70 dB |
| Heat dissipation | 79181 Btu/h |
| IP protection | IP20 | Batterien und Überbrückungszeit |
| Battery type | Externes Batteriesystem |
| Battery voltage | +/-216 - +/-300 V |
| Discharge battery voltage | +/-172,8 - +/-240 V | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 584 kg |
| VPE 1 Höhe | 2117 mm |
| VPE 1 Breite | 1000 mm |
| VPE 1 Länge | 800 mm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 12 |
Nachhaltigkeit
Nachhaltigkeit
| SCIP-Nummer | 409c68a1-39a6-4e5f-b080-12befe783ad8 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| CO2-Bilanz (kg CO2 eq.) | 512737 |
| Total lifecycle Carbon footprint | 513 ton CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 8852.779866418094 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 8 853 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 161.66512919963503 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 162 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 44.13265646298427 |
| CO₂-Fußabdruck der Installationsphase [A5] | 44 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 502748.2781875662 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 503 ton CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 930.1125071439268 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 930 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=E3LUPS400KHS_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=E3LUPS400KHS_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
