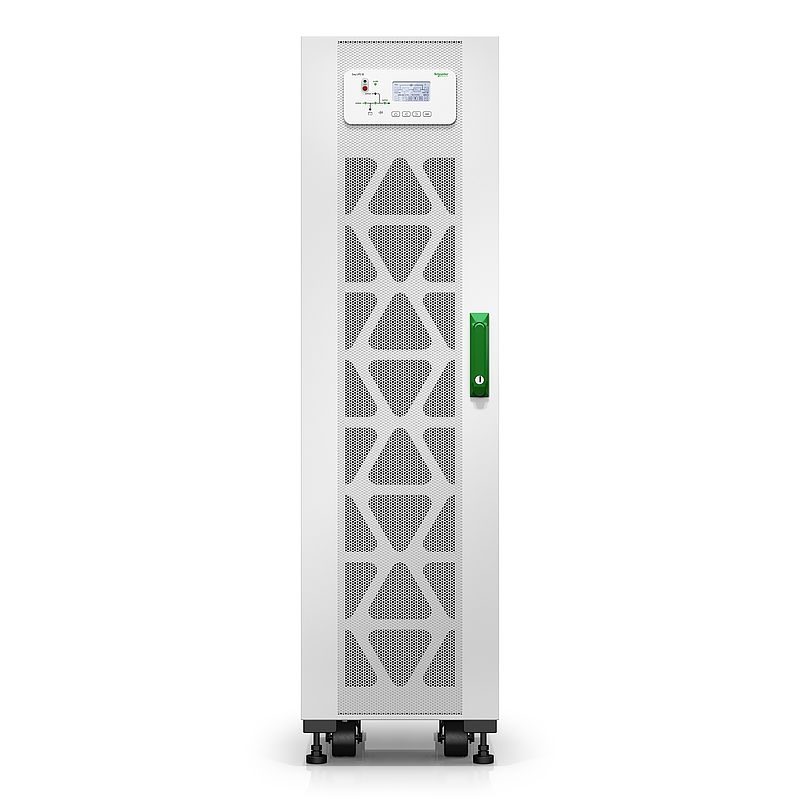

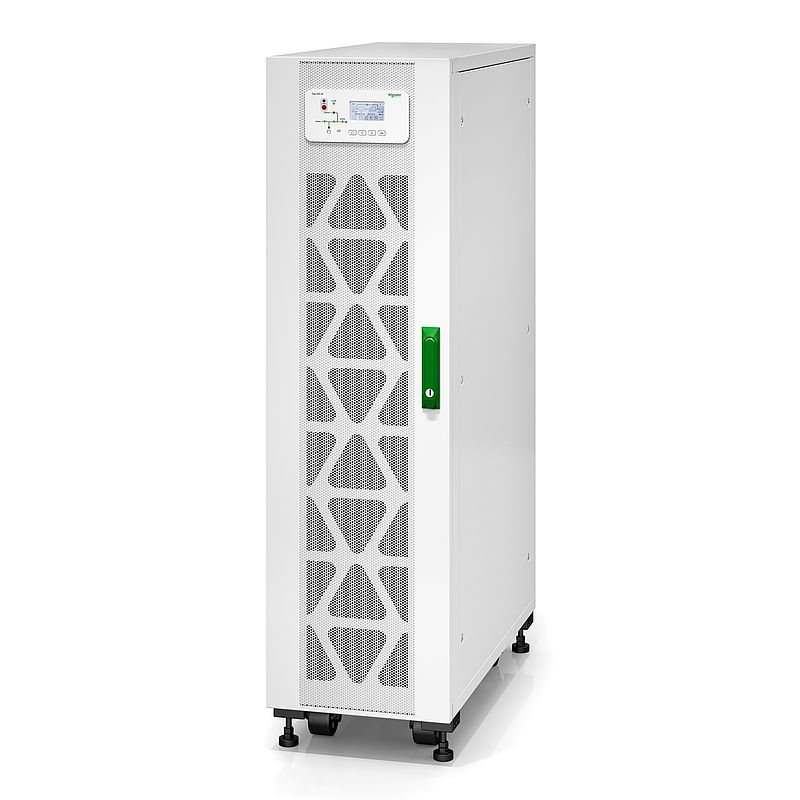

Easy UPS 3S USV, 10 kVA, 400 V, 3:1, für interne Batterien
E3SUPS10K3IB
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Specification guide
|
Download |
|
Brochure
|
Download |
|
BIM Model
|
Download |
|
Technical Drawing
|
Download |
|
Instruction sheet
|
Download |
|
User guide
|
Download |
|
Promotional video
|
Video anzeigen |
|
Certificate
|
Download |
|
Certificate of Origin
|
Download |
|
Declaration of conformity
|
Download |
|
Circularity Profile
|
Download |
|
Handout
|
Download |
|
Catalog
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
Ersatzteil-Kits: Kompatible Produkte
Ersatzteil-Kits (4)
Batterien Kabel: Kompatible Produkte
Kabel (1)
Schnittstellen-Anschlüsse: Kompatible Produkte
Schnittstellen-Anschlüsse (2)
: Kompatible Produkte
(1)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Hocheffiziente dreiphasige USV mit modernsten Funktionen, herausragenden Spezifikationen und robuster Elektrik – für maximale Geschäftskontinuität im Datacenter oder Technikraum. Diese USV mit 10 kVA lässt sich leicht installieren, bedienen und warten. Sie eignet sich ideal für kleine und mittlere Unternehmen. Das System enthält Staubfilter und speziell beschichtete Leiterplatten für anspruchsvolle Raumbedingungen. Diese USV wurde für interne Batterien konzipiert, wird jedoch ohne Batterien geliefert. So kann sie mit den entsprechenden Batteriemodulen leicht für verschiedene Autonomiezeiten angepasst werden. | Hauptmerkmale |
| Main input voltage | 400 V AC 3 Phasen 380 V AC 3 Phasen 415 V AC 3 Phasen |
| Other input voltage | 380 V 415 V |
| Output voltage | 230 V AC 3 Phasen 220 V AC 3 Phasen 240 V AC 3 Phasen |
| Other output voltage | 220 V 240 V |
| Rated power in W | 10 kW |
| Rated power in VA | 10 kVA |
| Maximum input current | 18 A |
| Input harmonic distortion | Weniger als 4 % bei Volllast |
| Cos phi | 0,99 |
| Efficiency at full load | 304 - 477 V |
| Input frequency | 45 - 65 Hz |
| Maximum configurable power in VA | 10 kVA |
| Maximum configurable power in W | 10 kW |
| Output frequency | 50 Hz Netzsynchronisation 60 Hz Netzsynchronisation |
| Harmonic distortion | Weniger als 3 % |
| Output harmonic distortion | < 5.5% at 100% non-linear load |
| Output overload operation | 10 Minuten bei 125 % und 60 Sekunden bei 150 % |
| Output voltage tolerance | +/-1,5 % |
| UPS topology | Online-Doppelwandlung |
| Crest factor | 3:1 | Zusatzmerkmale |
| Provided equipment | Staubfilter Installationsanleitung |
| Color | Weiß (RAL 9003) |
| Height | 140 cm |
| Width | 38 cm |
| Depth | 90,7 cm |
| Product weight | 130 kg |
| USB compatible | Yes |
| Maximum short-circuit current | 10 kA |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Easy UPS 3S |
| Battery type | Lead-acid internal |
| UPS connectivity | Optional network management card 3 | Montage |
| Product certification | CE EAC RCM |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 3.281 ft |
| Ambient air temperature for storage | -25…55 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15240 m |
| Acoustic level | 60 dBA |
| Heat dissipation | 516 W |
| IP protection | IP20 | Batterien und Überbrückungszeit |
| Battery type | VRLA |
| Battery voltage | 240 V |
| Empty battery slot | 3 |
| Discharge battery voltage | +/-198 V DC | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 145,000 kg |
| VPE 1 Höhe | 164,000 cm |
| VPE 1 Breite | 101,400 cm |
| VPE 1 Länge | 56,300 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 12 |
Nachhaltigkeit
Nachhaltigkeit
| SCIP-Nummer | Dc6af940-cee3-4c52-a4a7-fc487db91a72 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| CO2-Bilanz (kg CO2 eq.) | 22599 |
| Total lifecycle Carbon footprint | 22 599 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 1398.3700372226758 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 1 398 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 28.25568132027222 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 28 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 28.202603193931758 |
| CO₂-Fußabdruck der Installationsphase [A5] | 28 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 20816.499021472442 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 20 816 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 327.30683748027167 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 327 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=E3SUPS10K3IB_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=E3SUPS10K3IB_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 82 |
