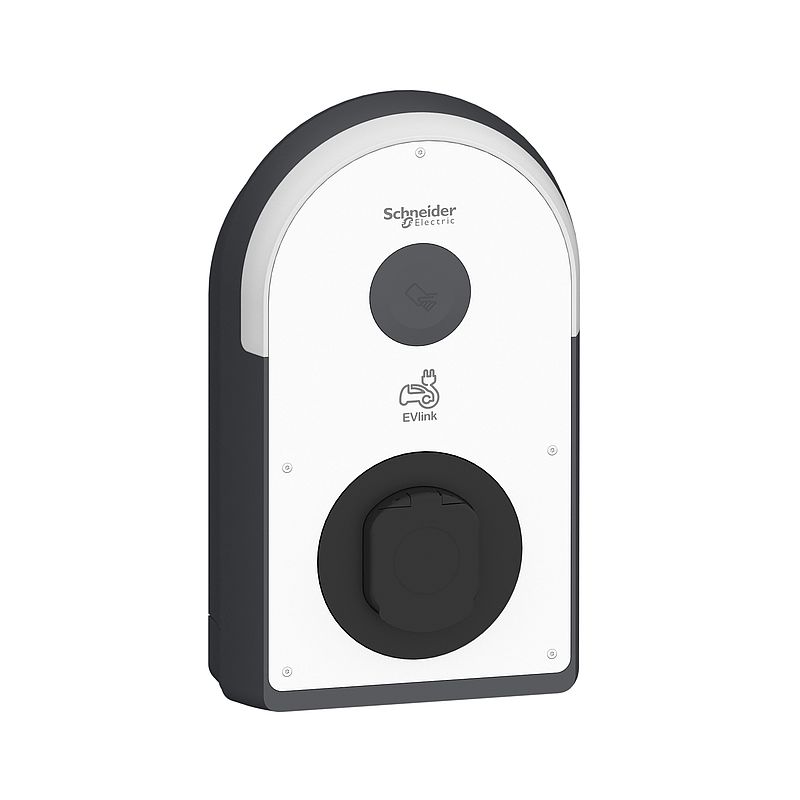

Pro AC Wallbox, 22kW, T2S Steckdose, MID, 6mA, IP55, IK10, NFC/RFID Reader
EVB3S22N40M
Materialpreisgruppe
: AZ
1.560,00 EUR
EAN Code: 3606482213166
Hauptdokumente
Download | |
|
Download |
|
Download |
|
Download |
|
Download |
|
Download |
|
Download |
|
Download |
|
Download |
|
Download |
|
Download |
|
Download |
|
Download |
|
Download |
|
Download |
|
Download |
|
Video anzeigen |
|
Download |
|
Download |
|
Download |
|
Video anzeigen |
|
Download |
|
Download |
Dieses Produkt ist kompatibel mit
Zubehörteile: Kompatible Produkte

Abdeckrahmen: Kompatible Produkte

: Kompatible Produkte

Kommunikations-Module: Kompatible Produkte

Boxen: Kompatible Produkte

: Kompatible Produkte

Spezifikationen
Hauptmerkmale | |
---|---|
Baureihe | EVlink |
Produktname | EVlink Pro AC |
Produkt- oder Komponententyp | Ladestation |
Kurzbezeichnung des Geräts | EVB3 |
Richtlinien | 2014/32/EU - Messgeräterichtlinie (MID) |
Kommunikationsnetztyp | Ethernet Bluetooth 3G/4G Modem Optional Modbus TCP |
Steckertyp | 2 RJ45 für Ethernet LAN-Anschluss |
Kommunikationsprotokoll | OCPP 1.6 |
Kommunikationsdienst | JSON Smart Charging für OCPP 1.6 |
Betriebsmodus | Clusterarchitektur Inselbetrieb |
Funktion verfügbar | Diagnosefunktionen Ladestatus Lademanagement |
Zusatzmerkmale |
Kompatible Produktfamilie | EVlink EcoStruxure EV Charging Expert EVlink EVlink Pro AC Metal EcoStruxure EcoStruxure EV Advisor |
Installationstyp | Innenraum Außeneinsatz |
gelieferte Ausrüstung | 1 Gleichfehlerstromerkennung (RDC-DD) integriert 1 Energiezähler integriert 1 MID-Zähler integriert |
Genauigkeitsklasse des Energiezählers | Klasse 1 |
Schutzgerätetyp | Gleichfehlerstromerkennung (RDC-DD) - 6 mA |
Beschreibung der Pole | 3P + N für Stromkreis |
Montagemodus | Wandmontage Wandmontage (Bausatz-Gehäuse) Bodenstehend (Stele) Bodenstehend (Bausatz-Gehäuse) |
Montagehalterung | Stele, separat zu bestellen Bausatz-Gehäuse, separat zu bestellen |
Kabeleinführung | Untere Durchführung Kabeleinführung von oben Kabeleinführung von hinten |
[UH,nom] Bemessungsbetriebsspannung | 380 - 415 V AC 50/60 Hz |
Nennausgangsleistung | 22 kW 32 A 380 - 415 V |
Anzahl der Steckdosen | 1 |
Ausgangstyp | Frontseite Seite T2 mit Klappe Steckdose / versilberte Kontakte |
Authentifizierungssystem | Plakette RFID entspricht ISO/IEC 14443 A und B Plakette RFID entspricht ISO/IEC 15693 Plakette NFC Freier Zugang |
RFID-kompatible Technologie | MIFARE Classic MIFARE Ultralight MIFARE Plus |
NFC-Frequenz | 13,56 MHz |
NFC-Tag Typ | Typ 1 Typ 2 Typ 4 Typ 5 |
Anzahl der Eingänge | 3 |
Eingangstyp | Binär für Ladeleistungsreduzierung Schließkontakt Binär für verzögerte Aufladung Schließkontakt Binär für Fahrzeugerkennung Schließkontakt |
Betätigungsart | kann dezentral gesteuert werden |
Lokale Signalisierung | 1 grün LED-Lichtleiste, Funktion: verfügbar 1 blau LED-Lichtleiste, Funktion: Laden 1 rot LED-Lichtleiste, Funktion: Fehleranzeige |
Normen | EN/IEC 61851-1:Hrsg. 3 EN/IEC 62196-1:ed. 2 EN/IEC 62196-2:ed. 1 EN 61000-6-2:2019 EN 61000-6-3:2007 EN 61000-6-3:2011/A1 IEC 60884-1 NF C 61314 ISO 15118 |
Produktzertifizierungen | EV Ready CE |
Aufstellungshöhe | 2.000 m ohne Leistungsreduzierung |
Höhe | 529 mm |
Breite | 317 mm |
Tiefe | 153 mm |
Produktgewicht | 7,2 kg |
Farbe | Vorderseite: weiß (RAL 9003) Gehäuse: dunkelgrau (RAL 7016) Rückseite: schwarz (RAL 9005) |
Erdungssystem | TT TN-S TN-C-S IT (single phase network only allowed, 400V 3 phases network forbidden) |
Einsatzbedingungen | 3x230VAC (ph-ph) distribution forbidden | Montage |
Schutzart (IP) | IP55 |
Umgebungstemperatur bei Betrieb | -30…50 °C |
Umgebungstemperatur bei Lagerung | -40…80 °C |
Schutzart (IK) | IK10 |
Relative Luftfeuchtigkeit | 5…95 % | Verpackungseinheiten |
VPE 1 Art | PCE |
VPE 1 Menge | 1 |
VPE 1 Gewicht | 8,489 kg |
VPE 1 Höhe | 28,000 cm |
VPE 1 Breite | 35,700 cm |
VPE 1 Länge | 57,500 cm |
VPE 2 Art | P12 |
VPE 2 Menge | 4 |
VPE 2 Gewicht | 41,000 kg |
VPE 2 Höhe | 71,000 cm |
VPE 2 Breite | 80,000 cm |
VPE 2 Länge | 120,000 cm | Vertragliche Gewährleistung |
Gewährleistung | 18 Monate |
Nachhaltigkeit
Environmental data
SCIP-Nummer | 0a787687-ca4b-4982-8684-548a3b52ac76 |
Verpackung ohne Kunststoff | Nein |
Verpackung mit Recycling-Karton | Ja |
CO2-Bilanz (kg CO2 eq.) | 1 |
