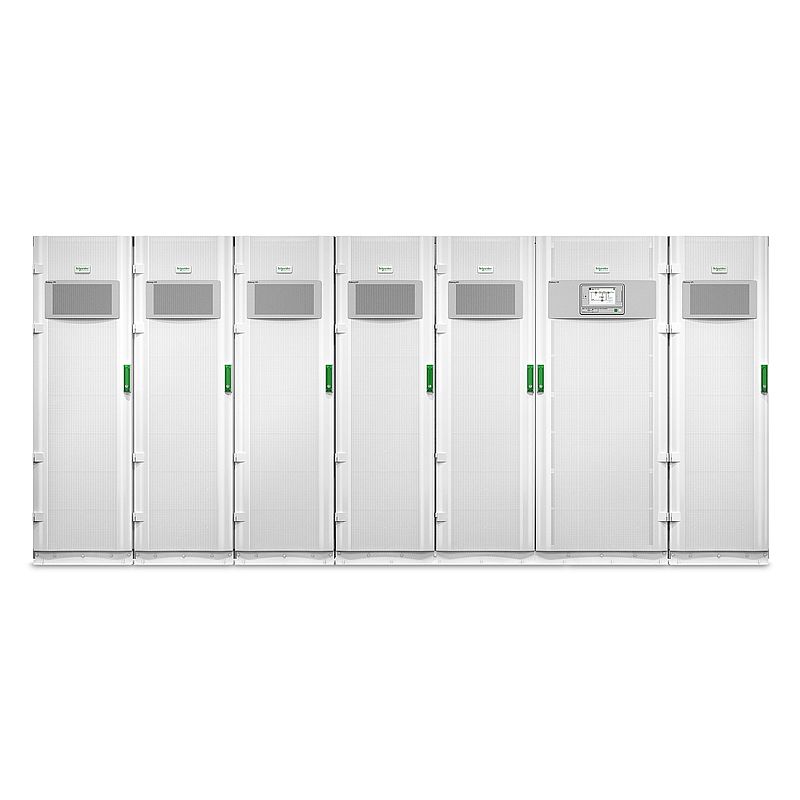

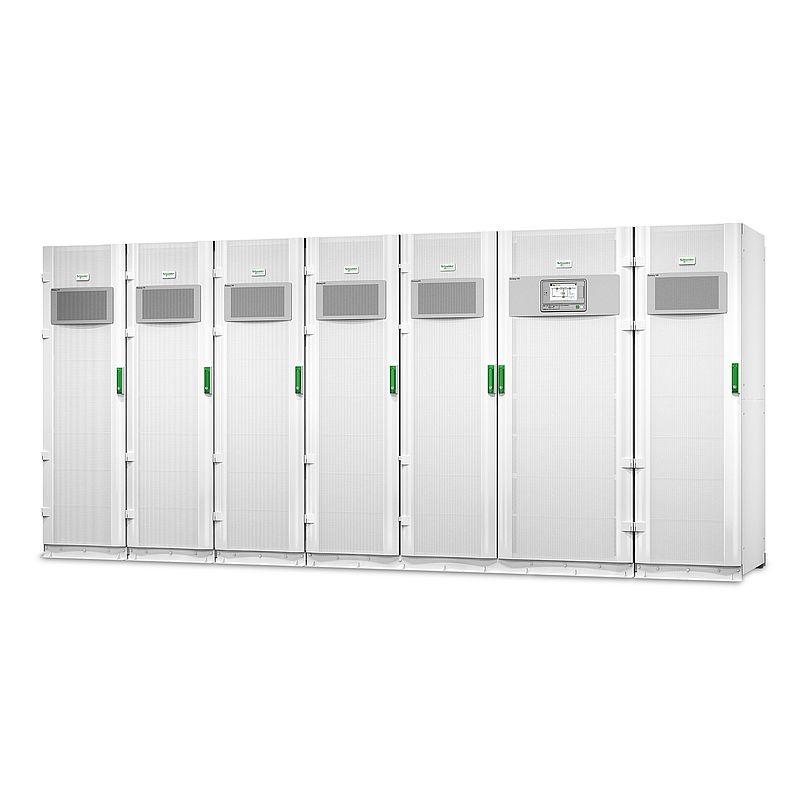

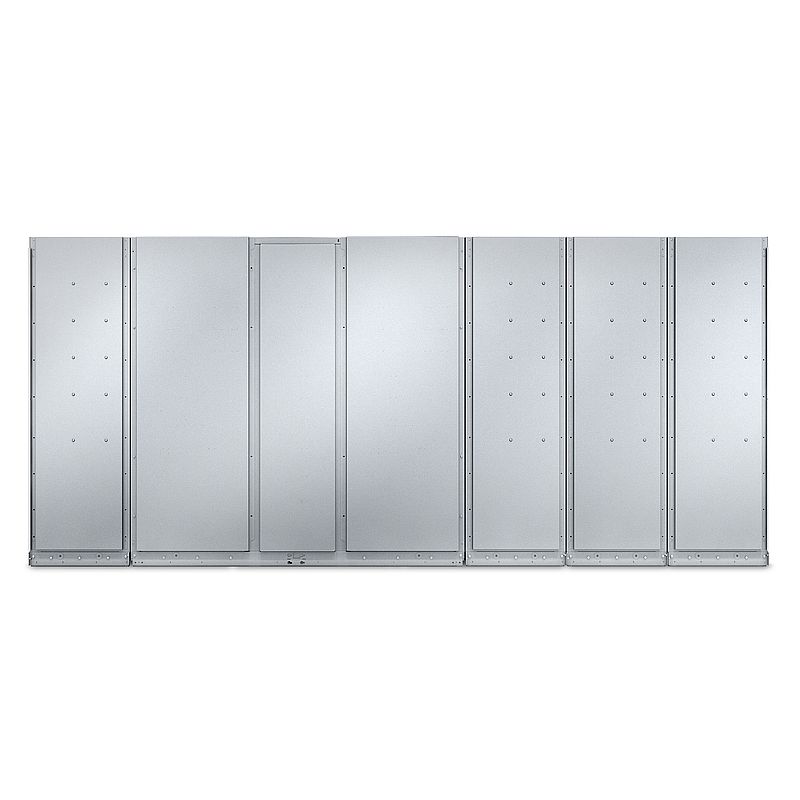

Galaxy VX, 1000 kVA, skalierbar auf 1500 kVA, 400 V, Start-up-Service 5 x 8
GVX1000K1500HS
Hauptdokumente
 Produktdatenblatt |
Download |
|
Technical Drawing
|
Download |
|
Specification guide
|
Download |
|
User guide
|
Download |
|
Promotional video
|
Video anzeigen |
|
Certificate of Origin
|
Download |
|
Certificate
|
Download |
|
Declaration of conformity
|
Download |
|
Circularity Profile
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
|
Brochure
|
Download |
Dieses Produkt ist kompatibel mit
Batterien: Kompatible Produkte
Batterien (5)
Ersatzteil-Kits
Leistungsmodule: Kompatible Produkte
Leistungsmodule (1)
Kommunikations-Artikel: Kompatible Produkte
Kommunikations-Artikel (5)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | A highly efficient, modular, 1000 kVA scalable to 1500 kVA 3-phase UPS that provides the performance, flexibility, and maximized asset utilization today’s large data centers and mission critical applications require. This EcoStruxure connected UPS features up to 99% efficiency in eConversion mode. Includes 5x8 start-up service. | Hauptmerkmale |
| Main input voltage | 400 V AC 3 Phasen 380 V AC 3 Phasen 415 V AC 3 Phasen |
| Other input voltage | 380 V 415 V 440 V |
| Output voltage | 400 V AC 3 Phasen 380 V AC 3 Phasen 415 V AC 3 Phasen |
| Other output voltage | 380 V 415 V 440 V |
| Rated power in W | 1000 kW |
| Rated power in VA | 1000 kVA |
| Input frequency | 40 - 70 Hz |
| Input connection | 1 fest verdrahtet 4-adrig (3P + E) |
| Maximum input current | 1702 A |
| Max short time withstand current | 100 kA |
| Input harmonic distortion | Weniger als 3 % bei Volllast |
| Load power factor | Von 0,7 kapazitiv bis 0,5 induktiv ohne leistungsreduzierung |
| Cos phi | 1 |
| Maximum configurable power in W | 1500 kW |
| Output frequency | 50 Hz Netzsynchronisation 60 Hz Netzsynchronisation 50 Hz +/-0,1 % für 50 Hz Nominal nicht synchronisiert |
| Crest factor | 3 mit THC < 5 % |
| Waveform type | Sinuswelle |
| Output harmonic distortion | < 2% linear load and < 3% non-linear load |
| Output overload operation | 10 Minuten bei 125 % und 60 Sekunden bei 150 % |
| Maximum configurable power in VA | 1500 kVA | Batterien und Überbrückungszeit |
| Battery type | Externes Batteriesystem |
| Battery voltage | 480 V |
| Discharge battery voltage | 384 V DC | Zusatzmerkmale |
| Provided equipment | Installationsanleitung Inbetriebnahme-Service |
| Redundant | No |
| Color | Weiß |
| Height | 197 cm |
| Width | 440 cm |
| Depth | 90 cm |
| Product weight | 2910 kg |
| USB compatible | No |
| Free slot | 2 |
| Control panel | 7" touch screen display |
| Range of product | Galaxy VX |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Battery type | Lead-acid external sold separately Li-Ion (Lithium-Ionen) external sold separately |
| UPS connectivity | Pre-installed network management card 3 | Montage |
| Product certification | C-Tick CE |
| Standard | EN/IEC 62040-1 EN/IEC 62040-2 EN/IEC 62040-3 ETL IBC 2012 IEC 62040-4 ISTA 2B |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 3.333 ft |
| Ambient air temperature for storage | -15…40 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15240 m |
| Acoustic level | 68 dBA |
| Heat dissipation | 174332 Btu/h |
| IP protection | IP20 | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 3737 kg |
| VPE 1 Höhe | 215 cm |
| VPE 1 Breite | 106 cm |
| VPE 1 Länge | 516 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 12 |
Nachhaltigkeit
Nachhaltigkeit
| SCIP-Nummer | 7547f066-9302-46d9-96e9-461928dd6901 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| CO2 Fußabdruck am Ende der Betriebsdauer | Energieeffizientes Produkt |
| Rücknahme | Ja |
| CO2-Bilanz (kg CO2 eq.) | 1169345 |
| Total lifecycle Carbon footprint | 1 169 ton CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 76019.6080796309 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 76 020 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 843.7859375787035 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 844 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 177.10804188495462 |
| CO₂-Fußabdruck der Installationsphase [A5] | 177 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 1087219.7309847975 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 1 087 ton CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 5085.158038382669 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 5 085 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
Quecksilberfrei
|
Ja |
| Recyclingfähigkeitspotential in % | 76 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=GVX1000K1500HS_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=GVX1000K1500HS_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
