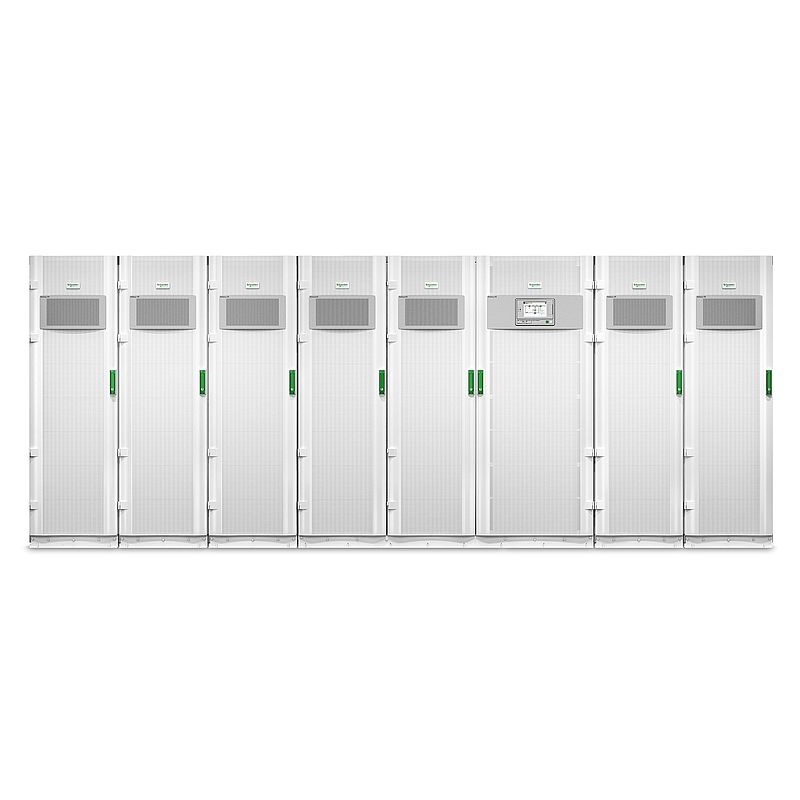

Galaxy VX 1250 kVA, 400 V, Start-up-Service 5 x 8
GVX1250K1250HS
Hauptdokumente
 Produktdatenblatt |
Download |
|
Technical Drawing
|
Download |
|
Specification guide
|
Download |
|
BIM Model
|
Download |
|
User guide
|
Download |
|
Promotional video
|
Video anzeigen |
|
Certificate of Origin
|
Download |
|
Certificate
|
Download |
|
Declaration of conformity
|
Download |
|
Circularity Profile
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
|
Brochure
|
Download |
Dieses Produkt ist kompatibel mit
Batterien
Smart Slots
Ersatzteil-Kits
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Hoch effiziente, skalierbare dreiphasige USV mit verschiedenen Betriebsmodi für große Installationen, Datacenter und unternehmenskritische Anwendungen. | Hauptmerkmale |
| Main input voltage | 400 V AC 3 Phasen 380 V AC 3 Phasen 415 V AC 3 Phasen |
| Other input voltage | 380 V 415 V 440 V |
| Output voltage | 400 V AC 3 Phasen 380 V AC 3 Phasen 415 V AC 3 Phasen |
| Other output voltage | 380 V 415 V 440 V |
| Rated power in W | 1250 kW |
| Rated power in VA | 1250 kVA |
| Input frequency | 40 - 70 Hz |
| Input connection | 1 fest verdrahtet 4-adrig (3P + E) |
| Maximum input current | 2127 A |
| Max short time withstand current | 100 kA |
| Input harmonic distortion | Weniger als 3 % bei Volllast |
| Load power factor | Von 0,7 kapazitiv bis 0,5 induktiv ohne leistungsreduzierung |
| Cos phi | 1 |
| Maximum configurable power in W | 1250 kW |
| Output frequency | 50 Hz Netzsynchronisation 60 Hz Netzsynchronisation 50 Hz +/-0,1 % für 50 Hz Nominal nicht synchronisiert |
| Crest factor | 3 mit THC < 5 % |
| Waveform type | Sinuswelle |
| Output harmonic distortion | < 2% linear load and < 3% non-linear load |
| Output overload operation | 10 Minuten bei 125 % und 60 Sekunden bei 150 % |
| Maximum configurable power in VA | 1250 kVA | Batterien und Überbrückungszeit |
| Battery type | Externes Batteriesystem |
| Battery voltage | 480 V |
| Discharge battery voltage | 384 V DC | Zusatzmerkmale |
| Provided equipment | Installationsanleitung Inbetriebnahme-Service |
| Redundant | No |
| Color | Weiß |
| Height | 197 cm |
| Width | 500 cm |
| Depth | 90 cm |
| Product weight | 3450 kg |
| USB compatible | No |
| Free slot | 2 |
| Control panel | 7" touch screen display |
| Range of product | Galaxy VX |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Battery type | Lead-acid external sold separately Li-Ion (Lithium-Ionen) external sold separately |
| UPS connectivity | Pre-installed network management card 3 | Montage |
| Product certification | C-Tick CE |
| Standard | EN/IEC 62040-1 EN/IEC 62040-2 EN/IEC 62040-3 IBC 2012 IEC 62040-4 ISTA 2B |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 3.333 ft |
| Ambient air temperature for storage | -15…40 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15240 m |
| Acoustic level | 68 dBA |
| Heat dissipation | 217914 Btu/h |
| IP protection | IP20 | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 4433 kg |
| VPE 1 Höhe | 215 cm |
| VPE 1 Breite | 106 cm |
| VPE 1 Länge | 590 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 12 |
