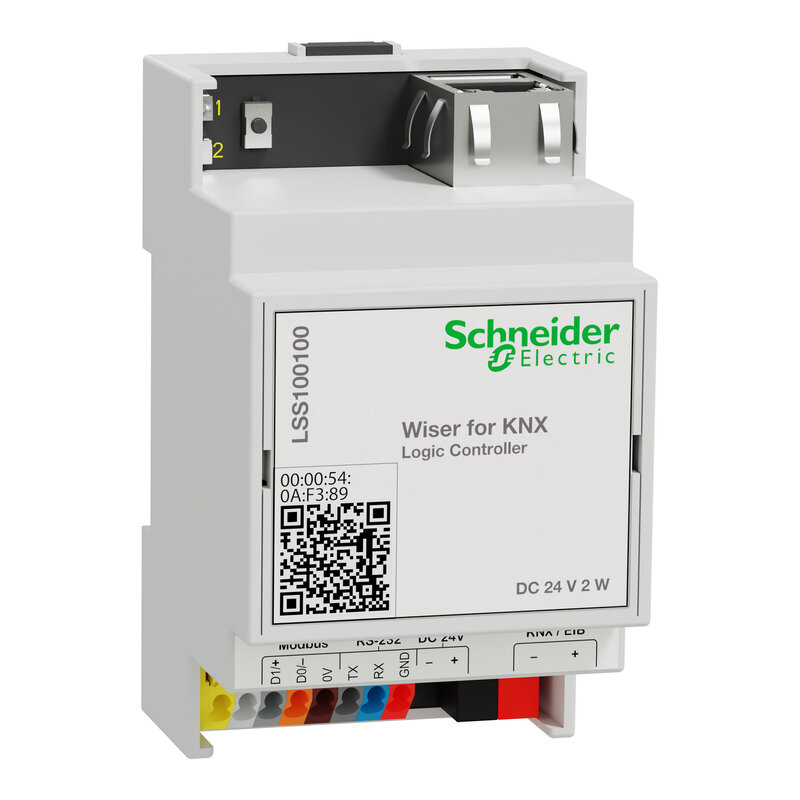

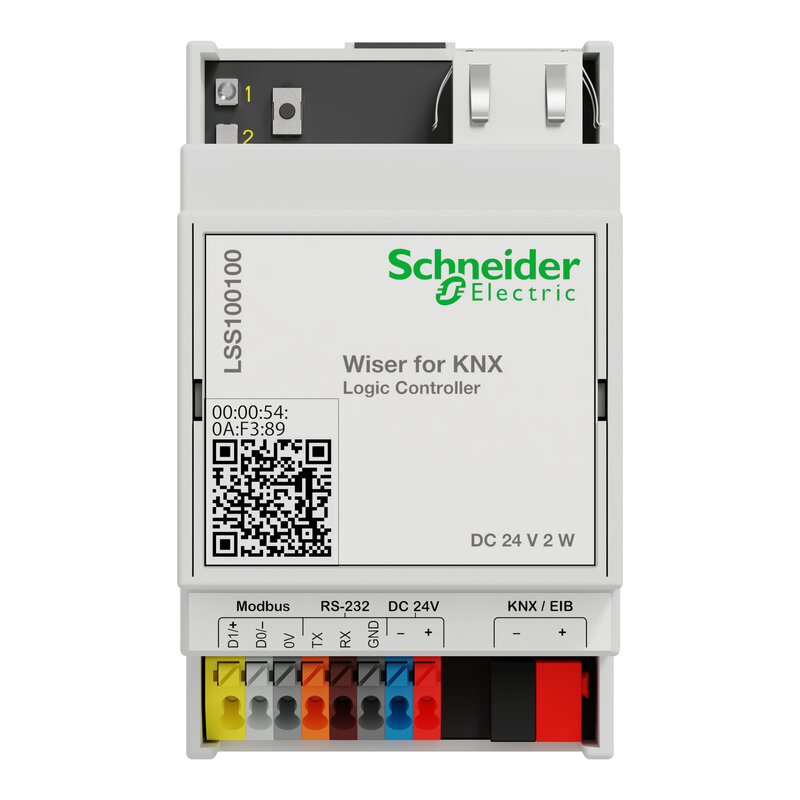

Wiser for KNX Logik Controller
LSS100100
Materialpreisgruppe
: G1
1.357,00 €
EAN Code: 3606480595998
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
BIM Model
|
Download |
|
Firmware
|
Download |
|
Catalog
|
Download |
|
Software - Hotfix
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
|
Instruction sheet
|
Download |
|
Software - Data Library
|
Download |
|
User guide
|
Download |
|
Application Notes
|
Download |
|
CAD
|
Download |
|
Brochure
|
Download |
|
Declaration of conformity
|
Download |
|
Certificate
|
Download |
Dieses Produkt ist kompatibel mit
Sensoren: Kompatible Produkte
Sensoren (1)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Produktname | Wiser für KNX |
| Produkt- oder Komponententyp | Logik-Controller |
| Baureihe | SpaceLogic KNX | Zusatzmerkmale |
| Kommunikationsprotokoll | BACnet KNX IP (Internetprotokoll) Modbus |
| [UH,nom] Bemessungs-Betriebsspannung | 24 V DC |
| Leistungsaufnahme in W | 2 W |
| LED-Anzeige | LED (grün) für CPU-Auslastung LED (grün/rot) für KNX eingeschaltet/zurückgesetzt |

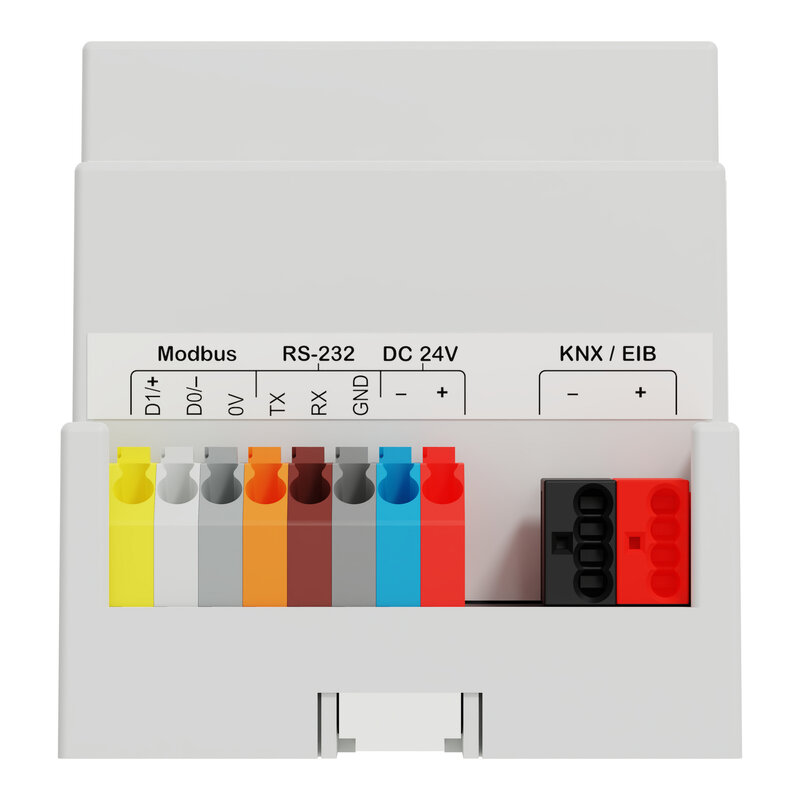

| physikalische Schnittstelle | 1 x RJ45 1 x RS485 1 x RS232 1 x TP-UART2 |

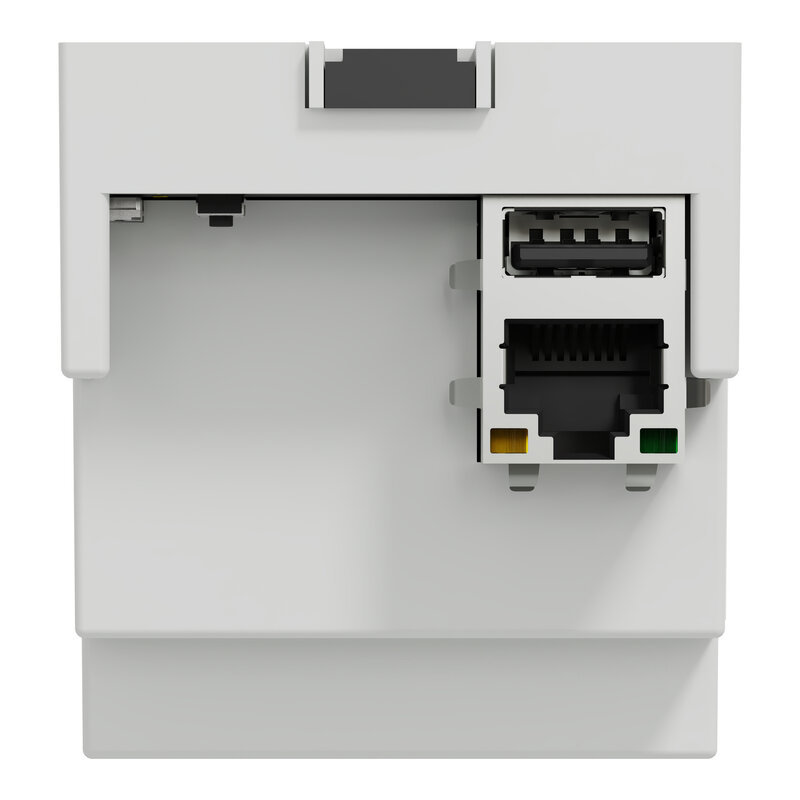

| Ethernet-Anschluss | 10BASE-T/100BASE-TX |
| integrierte Schnittstellen | 1 USB 2.0-Schnittstelle |
| Steuerungstyp | RESET-Drucktaster |
| Anschlüsse - Klemmen | KNX-Bus: Bus-Anschlussklemme 2 Kabel 0,8 mm² Netzteil: Klemmenanschluss1,5 mm² Seriell: Klemmenanschluss1,5 mm² |

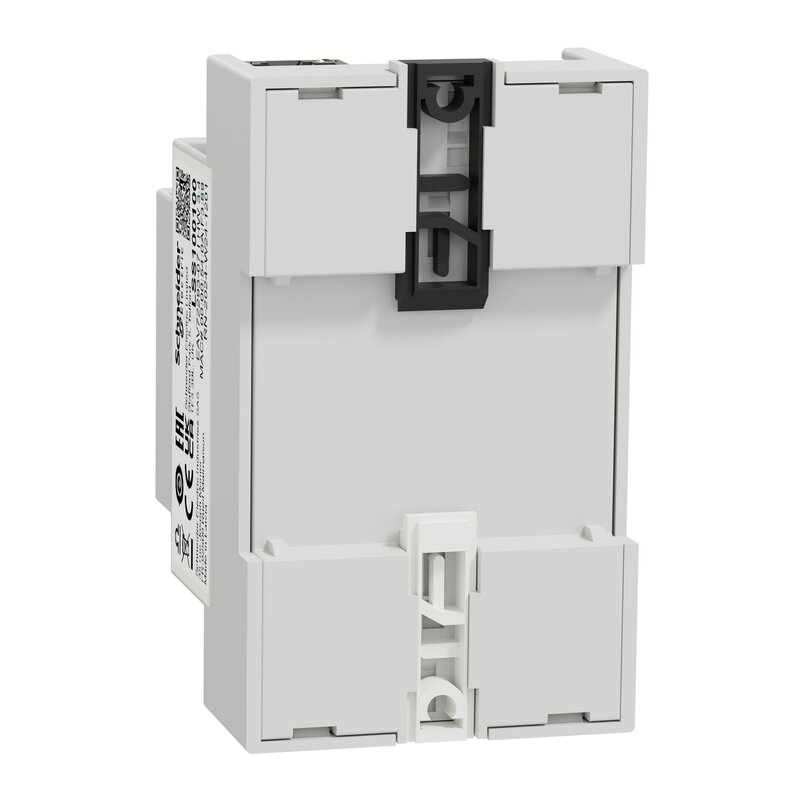

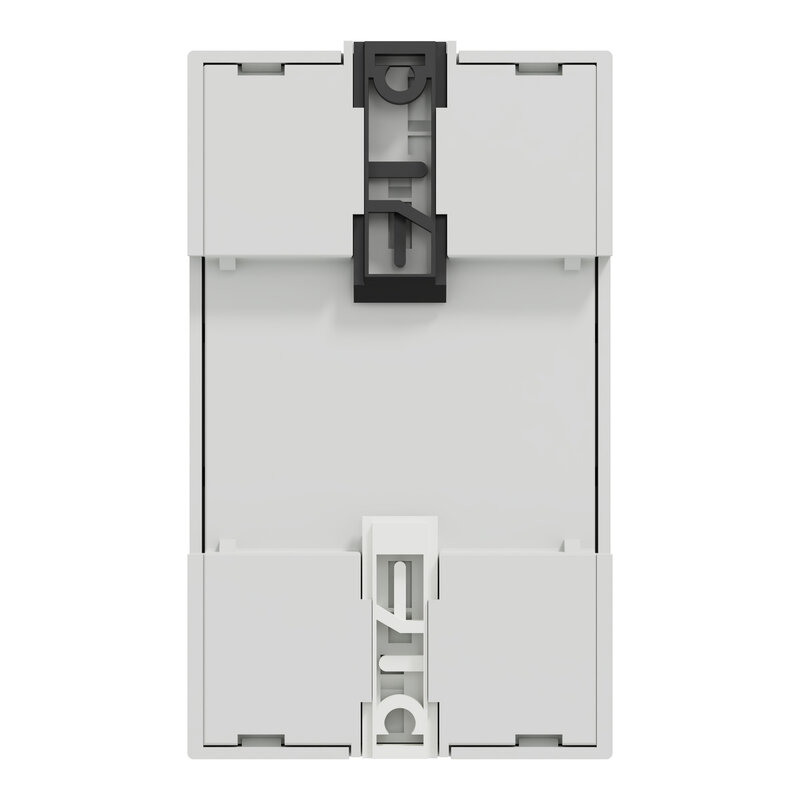

| Montagehalterung | DIN-Schiene |
| Höhe | 90 mm |
| Breite | 52 mm |
| Tiefe | 58 mm |
| Maximale Anzahl gleichzeitiger Benutzer | 8 |
| Number of Modbus server | 10 |
| Number of BACnet tags | 150 | Montage |
| Umgebungstemperatur bei Betrieb | -5…45 °C |
| Betriebshöhe | 0 - 2.000 m |
| Relative Luftfeuchtigkeit | 0…93 % |
| Schutzart (IP) | IP20 |
| Normen | IEC 60950-1 | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 127,000 g |
| VPE 1 Höhe | 6,800 cm |
| VPE 1 Breite | 6,000 cm |
| VPE 1 Länge | 9,400 cm |
| VPE 2 Art | BB1 |
| VPE 2 Menge | 10 |
| VPE 2 Gewicht | 1,383 kg |
| VPE 2 Höhe | 7,500 cm |
| VPE 2 Breite | 19,700 cm |
| VPE 2 Länge | 35,000 cm |
| VPE 3 Art | S03 |
| VPE 3 Menge | 40 |
| VPE 3 Gewicht | 5,992 kg |
| VPE 3 Höhe | 30,000 cm |
| VPE 3 Breite | 30,000 cm |
| VPE 3 Länge | 40,000 cm | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 18 |
Nachhaltigkeit
Nachhaltigkeit
| Frei von REACh-SVHC | Ja |
| Frei von giftigen Schwermetallen | Ja |
|
Quecksilberfrei
|
Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| CO2-Bilanz (kg CO2 eq.) | 40 |
| Total lifecycle Carbon footprint | 40 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 5.886737451559371 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 6 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.04484300277874726 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 0 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.1285431215001386 |
| CO₂-Fußabdruck der Installationsphase [A5] | 0.1 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 33.79590277777777 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 34 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.1860957679129903 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 0.2 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=LSS100100_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Durchschnittlicher Prozentsatz der ReponsibleSteel zertifizierten Metalle | Halogenfreies Produkt |
| PVC-frei | Ja |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=LSS100100_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 2 |
