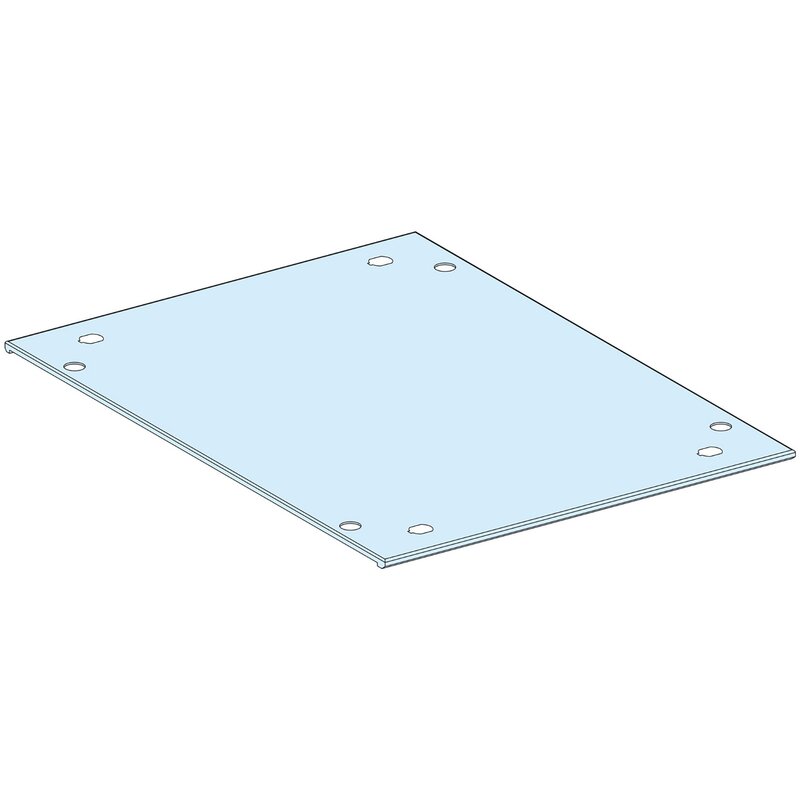

PrismaSeT-P, Dach, IP30,Breite=300mm,Tiefe=400mm

LVS08433

Hauptdokumente

Produktdatenblatt Download
Declaration of Conformity (Sustainability) Download
Instruction sheet Download
Catalog Download
CAD Download
Environmental Disclosure Download

Spezifikationen

Hauptmerkmale
Baureihe PrismaSeT
Baureihe PrismaSeT P
Produkt- oder Komponententyp Dach
Kompatible Produktfamilie PrismaSeT PrismaSeT P Gehäuse
Geräteanwendung Niederspannungs-Energieverteilung
Gehäusetyp Metallgehäuse
die Installationsbeschreibung 300 mm
Normen IEC 61439-1 für Gehäuse
IEC 61439-2 für Gehäuse
Produktzertifizierungen ASTA
die Installationsbeschreibung 300 mm
Zusatzmerkmale
Material Behandeltes Stahlblech
Beschichtung Elektrophorsesbehandlung und heiß-polimerisiertes Polyester-Epoxy-Pulver
Oberflächenbeschaffenheit Strukturiert
Matt
Farbe Weiß (RAL 9003)
spezielle Farboptionen Ja
Breite 300 mm
Tiefe 400 mm
Produktgewicht 1,36 kg
Menge pro Satz Satz à 1 Stück
Montage
Schutzart (IP) IP30 für Gehäuse
Schutzart (IK) IK08
Verpackungseinheiten
VPE 1 Art PCE
Anzahl der Geräte pro Packung 1
VPE 1 Höhe 4,500 cm
VPE 1 Breite 40,500 cm
VPE 1 Länge 40,500 cm
Verpackungsgewicht (Lbs) 1,474 kg
VPE 2 Art PAL
VPE 2 Menge 30
VPE 2 Höhe 35,000 cm
VPE 2 Breite 81,500 cm
VPE 2 Länge 124,000 cm
VPE 2 Gewicht 56,000 kg
Vertragliche Gewährleistung
Garantie (in Monaten) 18

Nachhaltigkeit

Nachhaltigkeit
Sustainable packaging Nein
Circular Econmomy-Eignung Keine besonderen Recycling-Verfahren erforderlich
Verpackung ohne Kunststoff Ja
Verpackung mit Recycling-Karton Ja
PVC-frei PVC-freies Produkt
Rücknahme Ja
Halogenfrei-Status Produkt mit halogenfreien Kunststoffteilen
Silikonfrei Ja
EU-RoHS-Richtlinie https://download.se.com/files?p_Doc_Ref=LVS08433_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29
REACh-Verordnung https://download.se.com/files?p_Doc_Ref=LVS08433_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29
Total lifecycle Carbon footprint 9 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3] 5.918499106073147
CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] 6 kg CO2 eq.
Carbon footprint of the distribution phase [A4] 0.6885663486253593
CO₂-Fußabdruck der Distributionsphase [A4] 0.7 kg CO2 eq.
Carbon footprint of the installation phase [A5] 0.5079859523175522
CO₂-Fußabdruck der Installationsphase [A5] 0.5 kg CO2 eq.
CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] 0 kg CO2 eq.
Carbon footprint of the end-of-life phase [C1 to C4] 1.5849976374575285
CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] 2 kg CO2 eq.
CO2-Bilanz (kg CO2 eq.) 9

Dokumente

Aktueller Filter
  • Dokumentenkategorie
  • Sprache
9 Dokumente
LVS08433 REACh-Erklärung
03/04/25 · Declaration of Conformity (Sustainability)
0,2 MB Download
LVS08433 EU-RoHS-Erklärung
03/04/25 · Declaration of Conformity (Sustainability)
0,2 MB Download
PrismaSet P Cubicles up to 4000A 15/03/25 · Environmental Disclosure 0,5 MB Download
PrismaSeT IP30 Plain Roof W300 D400 - 3D CAD 15/03/25 · CAD 0,8 MB Download
Declaratie de conformitate PrismaSeT G 15/03/25 · Declaration of conformity 0,2 MB Download
Declaratie de conformitate PrismaSeT P 15/03/25 · Declaration of conformity 0,2 MB Download
Catalog PrismaSeT P 15/03/25 · Catalog 188,9 MB Download
Catalogue PrismaSeT P Active 15/03/25 · Catalog 189,9 MB Download
PrismaSeT P IP30/IP55 enclosure - Gebrauchsanleitung 15/09/24 · Instruction sheet 16,3 MB Download
