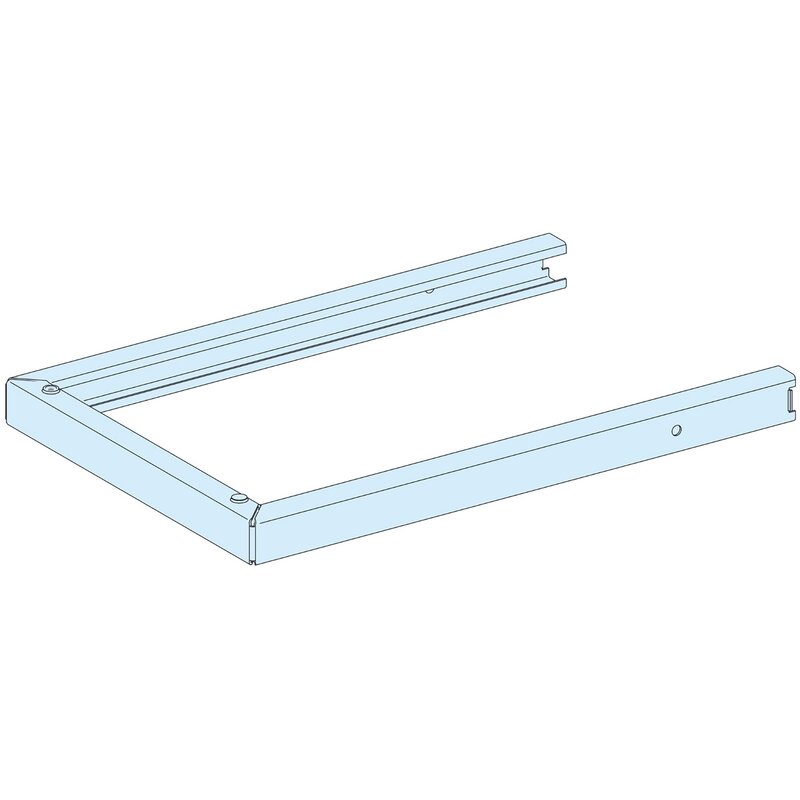

PrismaSeT-P, Transportsockel, Endstücke,Tiefe=400mm,(2Stück)

LVS08714

Hauptdokumente

Produktdatenblatt Download
Declaration of Conformity (Sustainability) Download
Instruction sheet Download
Catalog Download
CAD Download
Environmental Disclosure Download

Spezifikationen

Hauptmerkmale
Baureihe PrismaSeT
Baureihe PrismaSeT P
Produkt- oder Komponententyp Transportsockel-Endstück
Zubehör / Teilekategorie Gehäusezubehör
Zubehör / Teiletyp Transport
Kompatible Produktfamilie PrismaSeT PrismaSeT P Rahmen
Geliefertes Zubehör Befestigungsmaterial
Zusatzmerkmale
die Installationsbeschreibung Schaltfeld
Menge pro Satz Satz à 2
Material Stahl
Höhe 50 mm
Breite 395 mm
Tiefe 590 mm
Produktgewicht 5,82 kg
Farbe Natur
Verpackungseinheiten
VPE 1 Art PCE
Anzahl der Geräte pro Packung 1
VPE 1 Höhe 5,5 cm
VPE 1 Breite 44,0 cm
VPE 1 Länge 63,0 cm
Verpackungsgewicht (Lbs) 5,932 kg
VPE 2 Art P12
VPE 2 Menge 28
VPE 2 Höhe 82,0 cm
VPE 2 Breite 80,0 cm
VPE 2 Länge 120,0 cm
VPE 2 Gewicht 177,5 kg
Vertragliche Gewährleistung
Garantie (in Monaten) 18

Nachhaltigkeit

Nachhaltigkeit
Frei von REACh-SVHC Ja
Frei von giftigen Schwermetallen Ja
Quecksilberfrei Ja
Circular Econmomy-Eignung Keine besonderen Recycling-Verfahren erforderlich
Verpackung ohne Kunststoff Nein, wir haben den Einsatz von Kunststoff in der Verpackung gemäß den Vorschriften und unter Berücksichtigung von Qualitäts- und Sicherheitsstandards minimiert
Verpackung mit Recycling-Karton Ja
PVC-frei PVC-freies Produkt
Halogenfrei-Status Produkt mit halogenfreien Kunststoffteilen
Rücknahme Ja
Sustainable packaging Nein
Silikonfrei Ja
EU-RoHS-Richtlinie https://download.se.com/files?p_Doc_Ref=LVS08714_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29
REACh-Verordnung https://download.se.com/files?p_Doc_Ref=LVS08714_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29
Total lifecycle Carbon footprint 46 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3] 34.87893319919956
CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] 35 kg CO2 eq.
Carbon footprint of the distribution phase [A4] 2.8866402985230217
CO₂-Fußabdruck der Distributionsphase [A4] 3 kg CO2 eq.
Carbon footprint of the installation phase [A5] 0.3270553384678865
CO₂-Fußabdruck der Installationsphase [A5] 0.3 kg CO2 eq.
CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] 0 kg CO2 eq.
Carbon footprint of the end-of-life phase [C1 to C4] 8.113450071057501
CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] 8 kg CO2 eq.
CO2-Bilanz (kg CO2 eq.) 46

Dokumente

Aktueller Filter
  • Dokumentenkategorie
  • Sprache
10 Dokumente
LVS08714 EU-RoHS-Erklärung
03/04/25 · Declaration of Conformity (Sustainability)
0,2 MB Download
LVS08714 REACh-Erklärung
03/04/25 · Declaration of Conformity (Sustainability)
0,2 MB Download
PrismaSet P Cubicles up to 4000A 15/03/25 · Environmental Disclosure 0,5 MB Download
Declaratie de conformitate PrismaSeT G 15/03/25 · Declaration of conformity 0,2 MB Download
Declaratie de conformitate PrismaSeT P 15/03/25 · Declaration of conformity 0,2 MB Download
Catalog PrismaSeT P 15/03/25 · Catalog 188,9 MB Download
Catalogue PrismaSeT P Active 15/03/25 · Catalog 189,9 MB Download
PrismaSeT 2 Side Parts Handl.Plinth D400 - 3D CAD 17/09/24 · CAD 0,9 MB Download
2 SIDE PARTS HANDL.PLINTH D400/D600 - Gebrauchsanleitung 15/09/24 · Instruction sheet 1,5 MB Download
01/01/70 Catalog 0,0 MB Download
