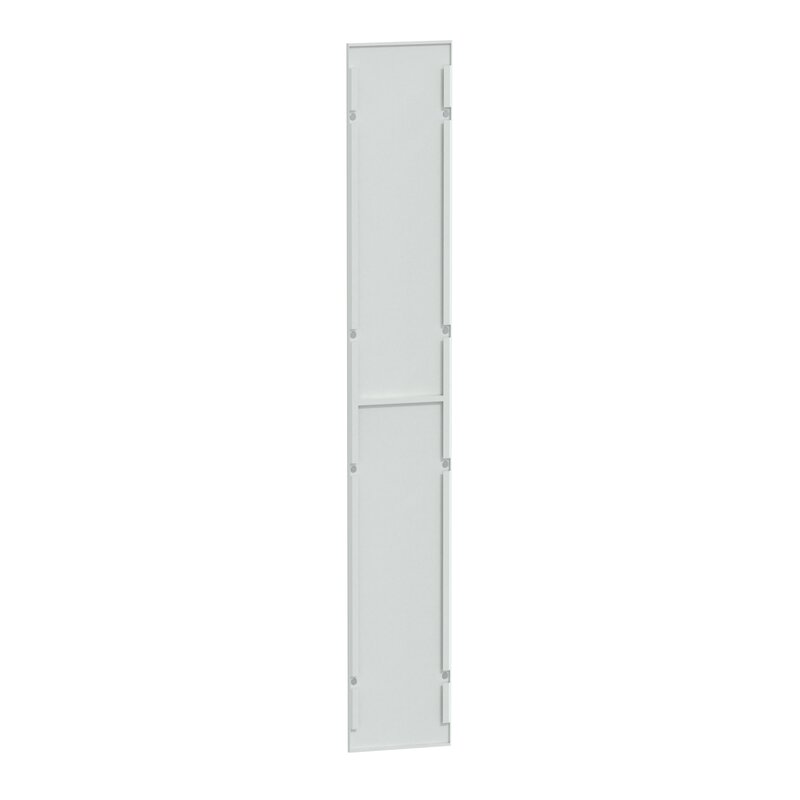

PrismaSeT-P, Rückwand, IP30,Breite=300mm

LVS08733

Hauptdokumente

Produktdatenblatt Download
Declaration of Conformity (Sustainability) Download
Instruction sheet Download
Catalog Download
CAD Download
Environmental Disclosure Download

Spezifikationen

Hauptmerkmale
Baureihe PrismaSeT
Baureihe PrismaSeT P
Produkt- oder Komponententyp Rückplatte
Kompatible Produktfamilie PrismaSeT PrismaSeT P Gehäuse
Geräteanwendung Niederspannungs-Energieverteilung
Gehäusetyp Metallgehäuse
die Installationsbeschreibung 300 mm
Bausatz-Zusammensetzung Seitenpanel
Normen IEC 61439-1 für Gehäuse
IEC 61439-2 für Gehäuse
Produktzertifizierungen ASTA
die Installationsbeschreibung 300 mm
Zusatzmerkmale
Material Behandeltes Stahlblech
Beschichtung Elektrophorsesbehandlung und heiß-polimerisiertes Polyester-Epoxy-Pulver
Oberflächenbeschaffenheit Matt
Strukturiert
Farbe Weiß (RAL 9003)
spezielle Farboptionen Ja
Breite 300 mm
Höhe 2000 mm
Produktgewicht 6,2 kg
Menge pro Satz Satz à 1 Stück
Montage
Schutzart (IP) IP30 für Gehäuse
Schutzart (IK) IK08
Verpackungseinheiten
VPE 1 Art PCE
Anzahl der Geräte pro Packung 1
VPE 1 Höhe 5,000 cm
VPE 1 Breite 31,000 cm
VPE 1 Länge 105,000 cm
Verpackungsgewicht (Lbs) 6,628 kg
VPE 2 Art P12
VPE 2 Menge 15
VPE 2 Höhe 53,000 cm
VPE 2 Breite 80,000 cm
VPE 2 Länge 120,000 cm
VPE 2 Gewicht 115,000 kg
Vertragliche Gewährleistung
Garantie (in Monaten) 18

Nachhaltigkeit

Nachhaltigkeit
Frei von REACh-SVHC Ja
Frei von giftigen Schwermetallen Ja
Quecksilberfrei Ja
Sustainable packaging Nein
Circular Econmomy-Eignung Keine besonderen Recycling-Verfahren erforderlich
Verpackung ohne Kunststoff Ja
Verpackung mit Recycling-Karton Ja
Rücknahme Ja
Halogenfrei-Status Produkt mit halogenfreien Kunststoffteilen
PVC-frei PVC-freies Produkt
Silikonfrei Ja
EU-RoHS-Richtlinie https://download.se.com/files?p_Doc_Ref=LVS08733_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29
REACh-Verordnung https://download.se.com/files?p_Doc_Ref=LVS08733_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29
Total lifecycle Carbon footprint 50 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3] 36.46228052180386
CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] 36 kg CO2 eq.
Carbon footprint of the distribution phase [A4] 3.348580920525503
CO₂-Fußabdruck der Distributionsphase [A4] 3 kg CO2 eq.
Carbon footprint of the installation phase [A5] 1.247592345312677
CO₂-Fußabdruck der Installationsphase [A5] 1 kg CO2 eq.
CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] 0 kg CO2 eq.
Carbon footprint of the end-of-life phase [C1 to C4] 8.716799655211695
CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] 9 kg CO2 eq.
CO2-Bilanz (kg CO2 eq.) 50
