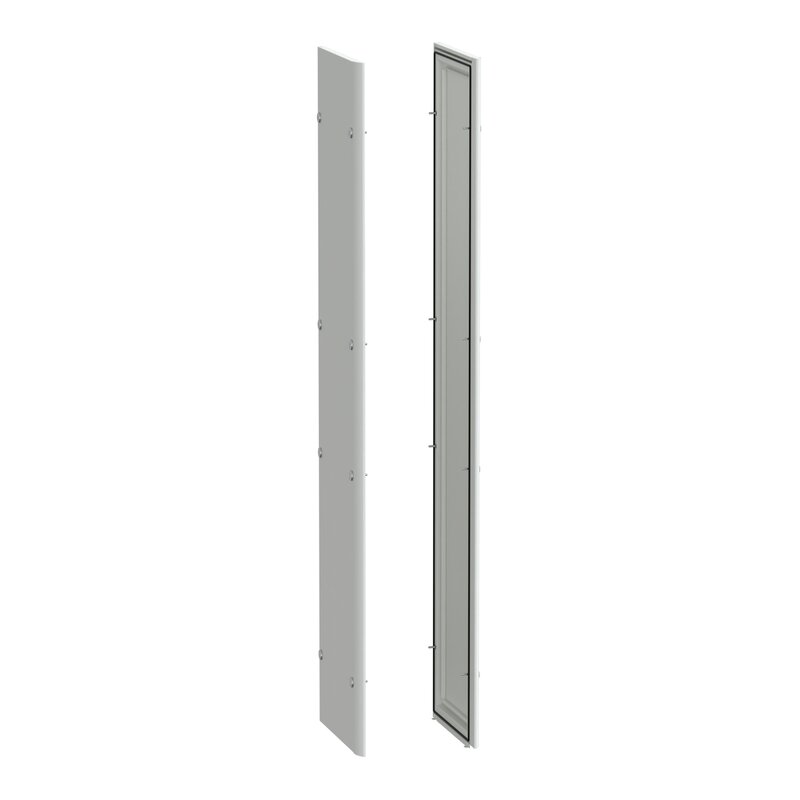

PrismaSeT-P, Seitenwand, IP55,Tiefe=400mm,(2Stück)

LVS08755

Hauptdokumente

Produktdatenblatt Download
Declaration of Conformity (Sustainability) Download
Instruction sheet Download
Catalog Download
CAD Download
Environmental Disclosure Download

Spezifikationen

Hauptmerkmale
Baureihe PrismaSeT
Baureihe PrismaSeT P
Produkt- oder Komponententyp Seitenteil
Kompatible Produktfamilie PrismaSeT PrismaSeT P Gehäuse
Geräteanwendung Niederspannungs-Energieverteilung
Gehäusetyp Metallgehäuse
Innenraum-Gehäuse
die Installationsbeschreibung 400 mm
Bausatz-Zusammensetzung 2 Seitenpanel
Bajonettverschluss
Normen IEC 61439-1 für Gehäuse
IEC 61439-2 für Gehäuse
Produktzertifizierungen ASTA
die Installationsbeschreibung 400 mm
Zusatzmerkmale
Material Behandeltes Stahlblech
Beschichtung Elektrophorsesbehandlung und heiß-polimerisiertes Polyester-Epoxy-Pulver
Oberflächenbeschaffenheit Matt
Strukturiert
Farbe Weiß (RAL 9003)
Breite 400 mm
Höhe 2000 mm
Produktgewicht 26,3 kg
Menge pro Satz Satz à 2
Montage
Schutzart (IP) IP55 für Gehäuse
Schutzart (IK) IK10
Verpackungseinheiten
VPE 1 Art PCE
Anzahl der Geräte pro Packung 1
VPE 1 Höhe 8,000 cm
VPE 1 Breite 48,000 cm
VPE 1 Länge 207,000 cm
Verpackungsgewicht (Lbs) 27,337 kg
VPE 2 Art PAL
VPE 2 Menge 10
VPE 2 Höhe 55,000 cm
VPE 2 Breite 120,000 cm
VPE 2 Länge 202,000 cm
VPE 2 Gewicht 293,000 kg
Vertragliche Gewährleistung
Garantie (in Monaten) 18

Nachhaltigkeit

Nachhaltigkeit
Frei von REACh-SVHC Ja
Frei von giftigen Schwermetallen Ja
Quecksilberfrei Ja
Sustainable packaging Nein
Circular Econmomy-Eignung Keine besonderen Recycling-Verfahren erforderlich
Verpackung ohne Kunststoff Ja
Verpackung mit Recycling-Karton Ja
PVC-frei PVC-freies Produkt
Rücknahme Ja
Halogenfrei-Status Produkt mit halogenfreien Kunststoffteilen
Silikonfrei Ja
EU-RoHS-Richtlinie https://download.se.com/files?p_Doc_Ref=LVS08755_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29
REACh-Verordnung https://download.se.com/files?p_Doc_Ref=LVS08755_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29
Total lifecycle Carbon footprint 211 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3] 156.30812147290268
CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] 156 kg CO2 eq.
Carbon footprint of the distribution phase [A4] 13.758406864561055
CO₂-Fußabdruck der Distributionsphase [A4] 14 kg CO2 eq.
Carbon footprint of the installation phase [A5] 3.63098704386687
CO₂-Fußabdruck der Installationsphase [A5] 4 kg CO2 eq.
CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] 0 kg CO2 eq.
Carbon footprint of the end-of-life phase [C1 to C4] 36.91265533183069
CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] 37 kg CO2 eq.
CO2-Bilanz (kg CO2 eq.) 211
