Spezifikationen

Hauptmerkmale
Baureihe Merten
Produktname Unterputz-Einsätze
Kompatible Produktfamilie PlusLink
Produkt- oder Komponententyp Multifunktionssteuergerät

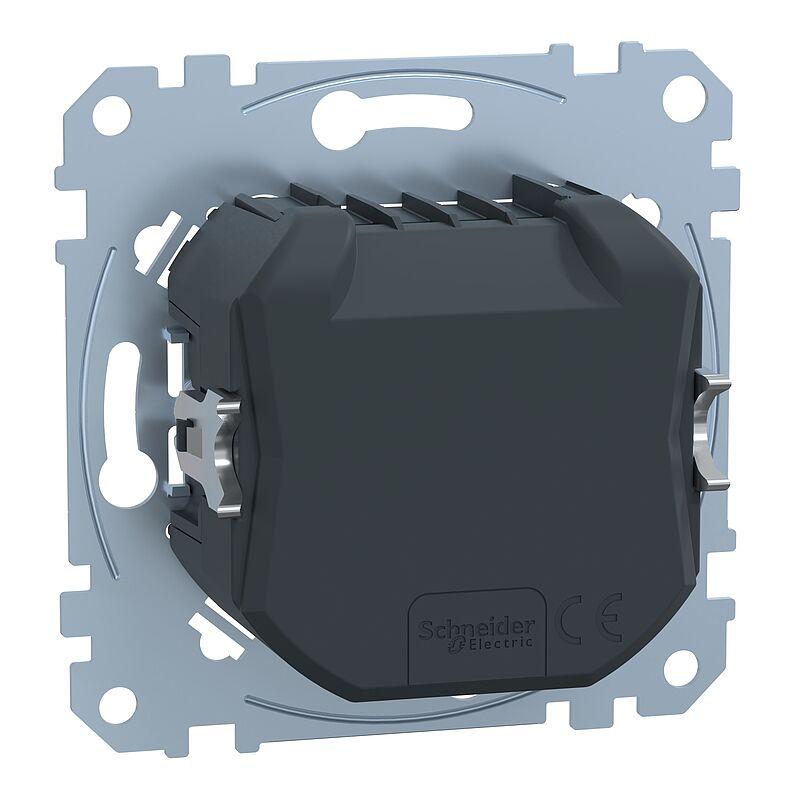

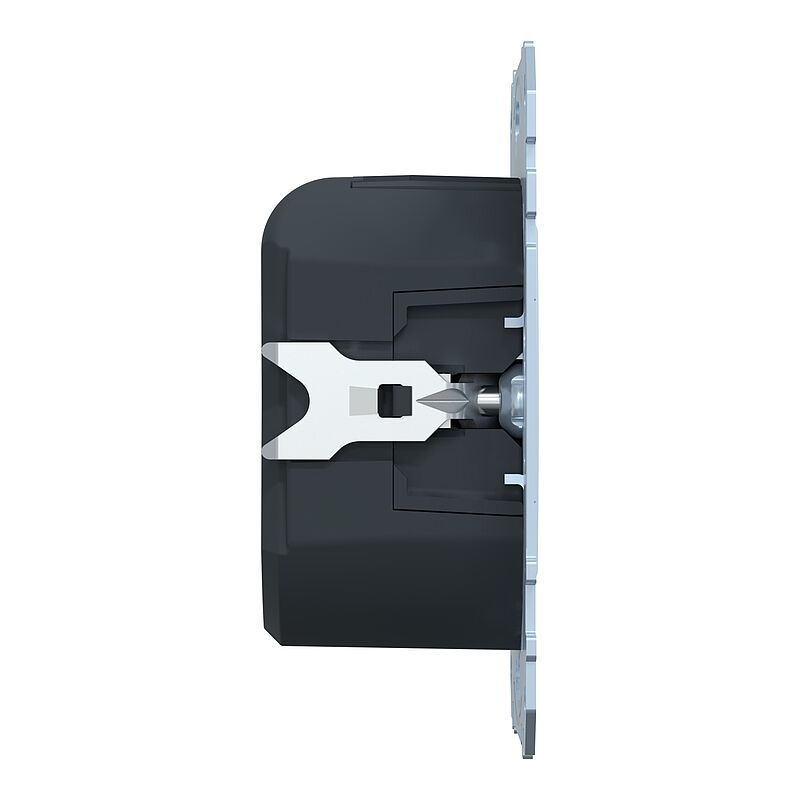

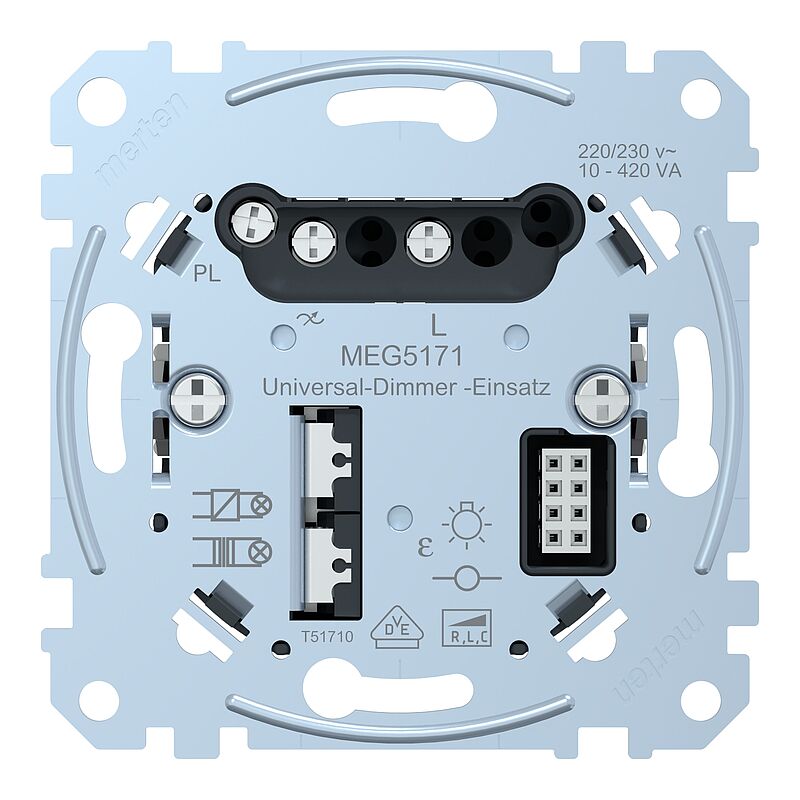

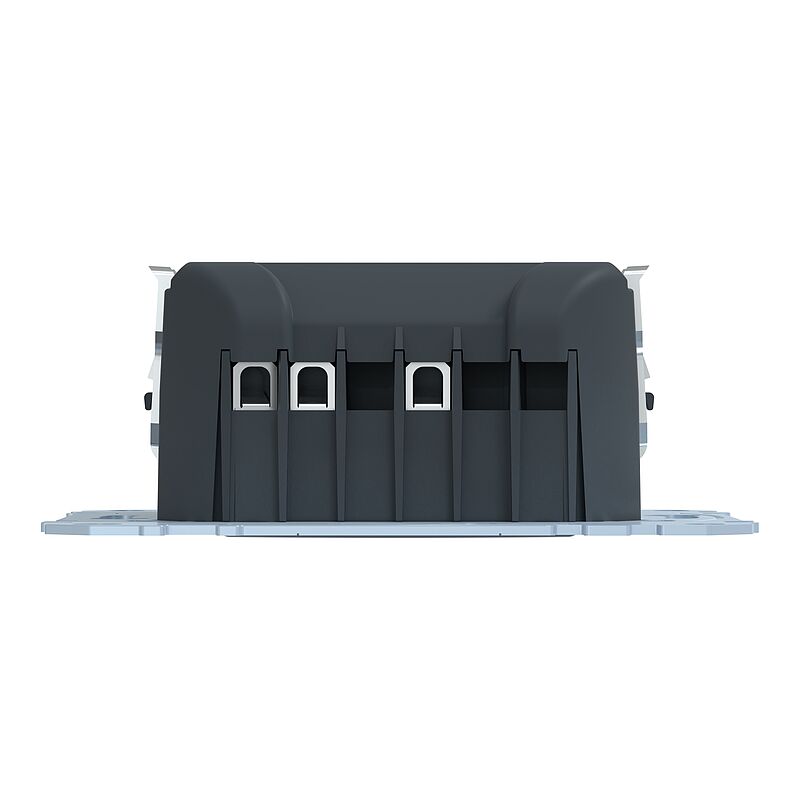

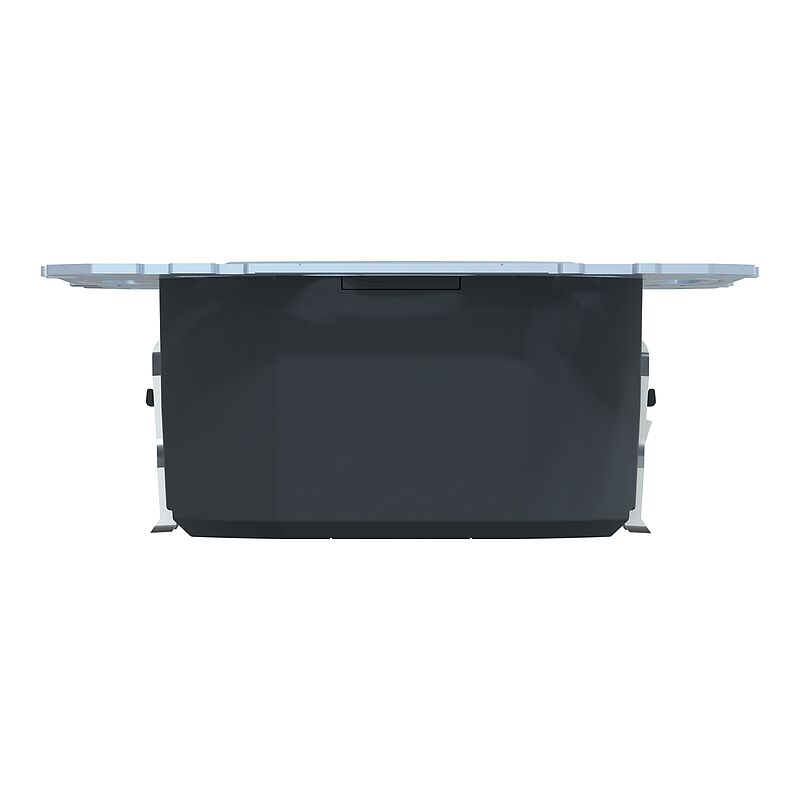

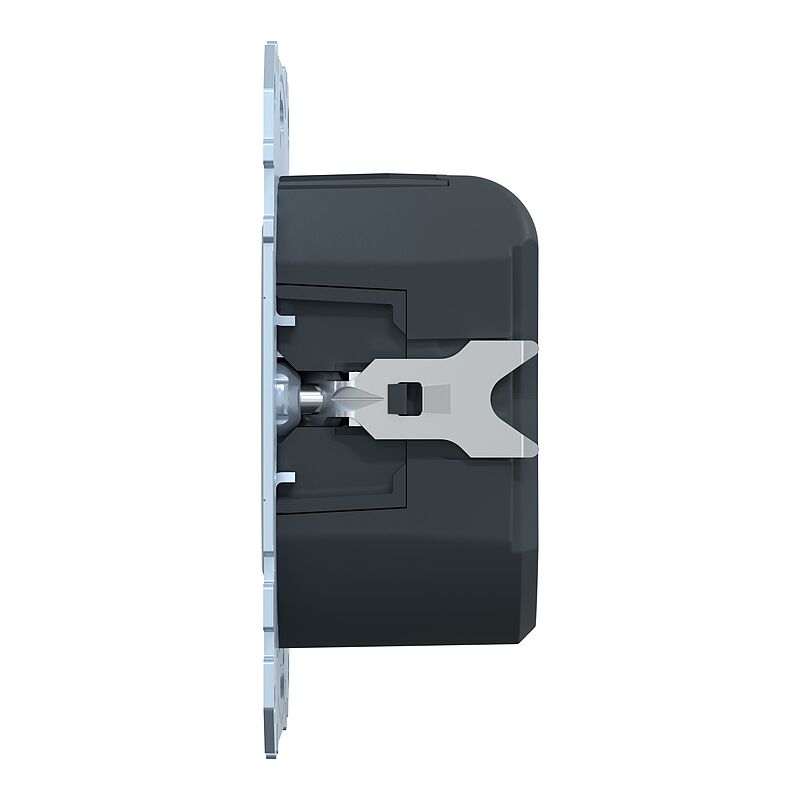

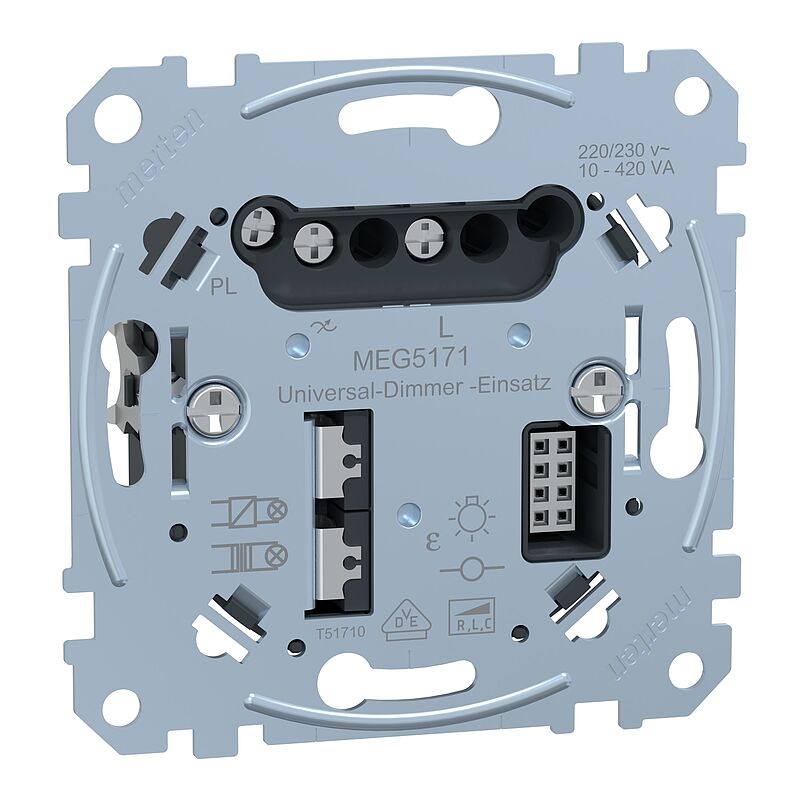

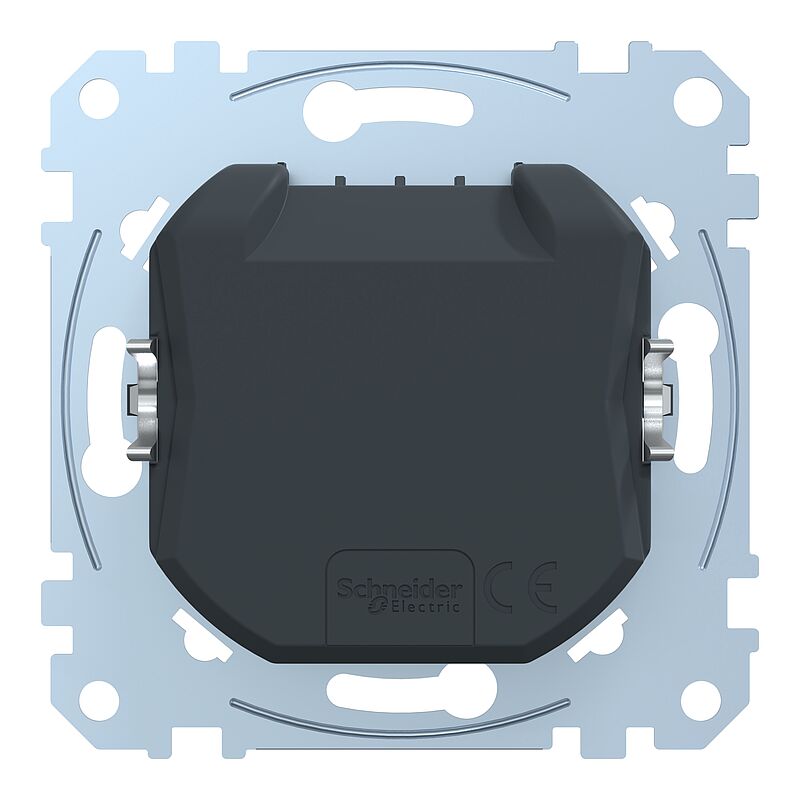

Gerätedarstellung Mechanismus mit Befestigungsrahmen
Zusatzmerkmale
Geräteanwendung Beleuchtungssteuerung
Typ der Technologie Elektronisch
Gehäusevariante Einbau
Befestigungsmodus Durch Schrauben und Krallen
Anzahl der Wippen 1
Dimmertyp Universal
Lasttyp Ohmsch: 10 - 420 W
Halogen: 10 - 420 W
Elektronischer Transformator: 10 - 420 VA
[Ue] Bemessungs-Betriebsspannung 220/230 V AC 50/60 Hz
Schutzart Schutz vor elektronischem Kurzschluss und Überlastschutz
Umgebungstemperatur bei Betrieb -5…35 °C
Schutzart (IP) IP20
Höhe 71 mm
Breite 71 mm
Tiefe 28 mm
Verpackungseinheiten
VPE 1 Art PCE
Anzahl der Geräte pro Packung 1
Verpackungsgewicht (Lbs) 98,000 g
VPE 1 Höhe 5,600 cm
VPE 1 Breite 7,600 cm
VPE 1 Länge 7,700 cm
VPE 2 Art CAR
VPE 2 Menge 50
VPE 2 Gewicht 5,246 kg
VPE 2 Höhe 19,900 cm
VPE 2 Breite 30,400 cm
VPE 2 Länge 40,500 cm
Vertragliche Gewährleistung
Gewährleistung 18 Monate

Nachhaltigkeit

Nachhaltigkeit
EU-RoHS-Richtlinie Konform mit Ausnahmen
EU-RoHS-Deklaration
Quecksilberfrei Ja
Verpackung ohne Kunststoff Ja
Verpackung mit Recycling-Karton Nein
SCIP-Nummer Aa9ce0ba-0d27-42ae-bf96-8b1837fa058d
Rücknahme Nein
CO2-Bilanz (kg CO2 eq.) 10
Total lifecycle Carbon footprint 10 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3] 1.2122029980274611
CO2 Fußabdruck am Ende der Betriebsdauer ​ 1 kg CO2 eq.
Carbon footprint of the distribution phase [A4] 0.021602670840366812
Durchschnittlicher Prozentsatz der ReponsibleSteel zertifizierten Metalle 0 kg CO2 eq.
Carbon footprint of the installation phase [A5] 0.01731806884119903
CO2 Fußabdruck während der Einrichtung 0 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6] 8.61180164087422
Carbon footprint of the use phase [B2, B3, B4, B6] 9 kg CO2 eq.
Sustainable packaging Nein
Carbon footprint of the end-of-life phase [C1 to C4] 0.22027662642107268
Carbon footprint of the end-of-life phase [C1 to C4] 0.2 kg CO2 eq.
WEEE Label Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen.
