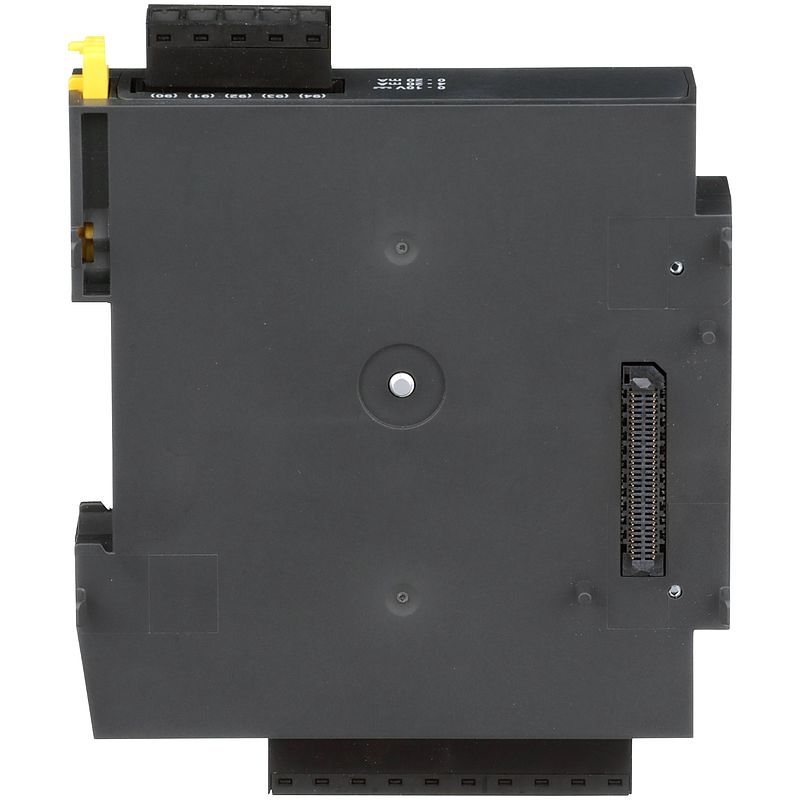

PowerLogic PM8000/ION7400/ION9000, Analog Eingangs- / Ausgangsmodul - 4 Eingänge + 2 Ausgänge
METSEPM89M0024
Materialpreisgruppe
: DR
Hauptdokumente
 Produktdatenblatt |
Download |
|
Environmental Disclosure
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Instruction sheet
|
Download |
|
User guide
|
Download |
|
CAD
|
Download |
|
Katalog
|
Download |
|
Circularity Profile
|
Download |
|
Software - Release
|
Download |
|
Other technical guide
|
Download |
|
Firmware
|
Download |
|
Declaration of conformity
|
Download |
|
Specification sheet
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | PowerLogic |
| Produkt- oder Komponententyp | E/A-Modul |
| Geräteanwendung | Optionales Erweiterungsmodul |
| Kompatible Produktfamilie | PowerLogic PowerLogic PM8000 PowerLogic PowerLogic ION7400 PowerLogic PowerLogic ION9000 |
Zusatzmerkmale |
| Anzahl der Ausgänge | 2 analog, 0 - 20 mA oder 4 - 20 mA oder 0 - 10 V |
| Anzahl der Eingänge | 4 analog 0 - 20 mA / 4 - 20 mA 0 - 30 V |
| Breite | 22 mm |
| Tiefe | 90,5 mm |
| Höhe | 90,5 mm |
| Produktgewicht | 140 g | Montage |
| Umgebungstemperatur bei Betrieb | -25…70 °C |
| Umgebungstemperatur bei Lagerung | -40…85 °C |
| Schutzart (IP) | IP30 entspricht IEC 60529 | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 220,000 g |
| VPE 1 Höhe | 6,000 cm |
| VPE 1 Breite | 10,000 cm |
| VPE 1 Länge | 12,000 cm |
| VPE 2 Art | S02 |
| VPE 2 Menge | 15 |
| VPE 2 Gewicht | 3,755 kg |
| VPE 2 Höhe | 15,000 cm |
| VPE 2 Breite | 30,000 cm |
| VPE 2 Länge | 40,000 cm | Vertragliche Gewährleistung |
| Gewährleistung | 18 Monate |
Nachhaltigkeit
Nachhaltigkeit
EU-RoHS-Richtlinie
|
Konform mit Ausnahmen EU-RoHS-Deklaration |
|
Quecksilberfrei
|
Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| Sustainable packaging | Nein |
| WEEE Label | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
