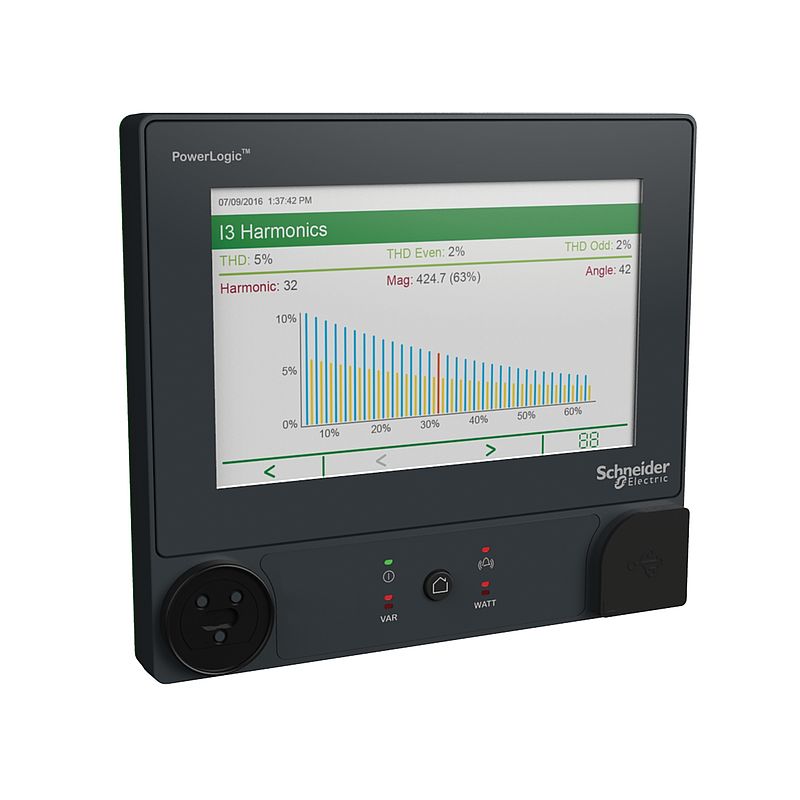

PowerLogic ION9000, RD192 externes Display, Farb Touchscreen, 7 Zoll
METSERD192
Materialpreisgruppe
: DR
1.308,00 €
EAN Code: 3606489555894
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
|
Instruction sheet
|
Download |
|
User guide
|
Download |
|
CAD
|
Download |
|
Catalog
|
Download |
|
Software - Release
|
Download |
|
Other technical guide
|
Download |
|
Firmware
|
Download |
|
Declaration of conformity
|
Download |
|
Specification sheet
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | PowerLogic |
| Produkt- oder Komponententyp | Fernanzeige |
| Geräteanwendung | Mensch-Maschine-Dialoganwendung |
| Kompatible Produktfamilie | PowerLogic PowerLogic ION9000 |
| Displaytyp | LCD-Touchscreen | Zusatzmerkmale |
| Anzeigefarbe | Farbe |
| Displayauflösung | 800 x 480 Pixel |
| Displaygröße | 7 Zoll |
| Angezeigte Informationen | Energieverbrauchs Spannung Leistung Oberschwingungsverzerrung Frequenz Strom Systemalarm E/A-Status |
| Anzeigekapazität der Meldungen | Grafische Objekte (Balkendiagramm, Knöpfe, Licht…) |
| Lokale Signalisierung | Status: LED (grün) Alarm: LED (rot) |
| Steuerungstyp | 1 x Drucktaste Touchscreen |
| Anschlusstyp | RJ45 |
| Geliefertes Zubehör | Befestigungsmaterial |
| Montagemodus | Flächenbündig |
| Montagehalterung | Rahmenbedingungen Fernanzeige |
| Breite | 197 mm |
| Höhe | 175 mm |
| Projektierungstiefe | 27,5 mm |
| Produktgewicht | 300 g | Montage |
| Schutzart (IP) | IP65 entspricht IEC 60529 |
| Schutzart (IK) | IK08 |
| Relative Luftfeuchtigkeit | 5…95 % |
| Betriebshöhe | 0 - 3.000 m |
| Umgebungstemperatur bei Betrieb | -25…60 °C |
| Umgebungstemperatur bei Lagerung | -40…85 °C |
| Produktzertifizierungen | IEC IEEE |
Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 1,6 kg |
| VPE 1 Höhe | 14,0 cm |
| VPE 1 Breite | 24,0 cm |
| VPE 1 Länge | 26,0 cm | Vertragliche Gewährleistung |
| Gewährleistung | 18 Monate |
Nachhaltigkeit
Nachhaltigkeit
|
EU-RoHS-Richtlinie
|
Konform mit Ausnahmen EU-RoHS-Deklaration |
|
Quecksilberfrei
|
Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| CO2-Bilanz (kg CO2 eq.) | 661 |
| SCIP-Nummer | 593f15dc-c512-4cf6-ac2d-78a614f80e12 |
| Total lifecycle Carbon footprint | 661 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 588.51 |
| CO2 Fußabdruck am Ende der Betriebsdauer | 589 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.067386 |
| Durchschnittlicher Prozentsatz der ReponsibleSteel zertifizierten Metalle | 0.1 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.026463 |
| CO2 Fußabdruck während der Einrichtung | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 71.322 |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 71 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.9274 |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.9 kg CO2 eq. |
| WEEE Label | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
