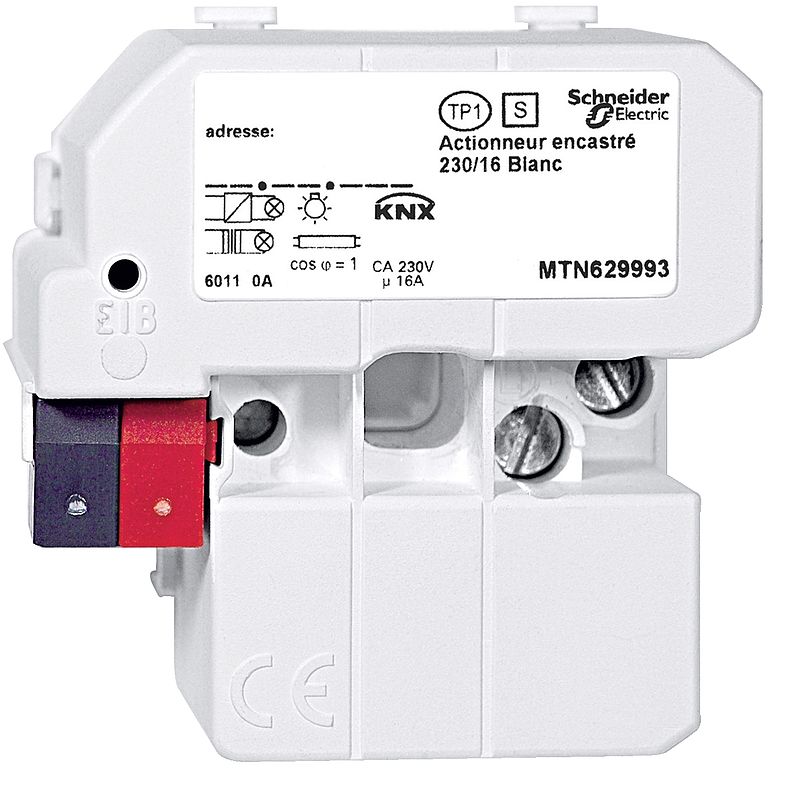

Schaltaktor UP/230/16, polarweiß
MTN629993
Hauptdokumente
 Produktdatenblatt |
Download |
|
System user guide
|
Download |
|
Declaration of conformity
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
|
BIM Model
|
Download |
|
Software - Data Library
|
Download |
|
Other technical guide
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
CAD
|
Download |
Dieses Produkt ist kompatibel mit
Softwares: Kompatible Produkte
Softwares (1)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | KNX |
| Produkt- oder Komponententyp | Schaltaktor |
| Bustyp | KNX |
| Anzahl der Kontakte | 1 | Zusatzmerkmale |
| Gehäusevariante | Einbau |
| [Ue] Bemessungs-Betriebsspannung | 100 - 240 V |
| Netzwerkfrequenz | 50 - 60 Hz |
| [In] Bemessungsstrom | 16 A |
| Lasttyp | Halogenlampen: <= 1.700 W, 230 V AC Glühlampen: <= 1.173 W, 100 V AC Glühlampen: <= 2.700 W, 230 V AC Glühlampen: <= 2.817 W, 240 V AC Halogenlampen: <= 739 W, 100 V AC Halogenlampen: <= 1.773 W, 240 V AC Parallelkompensierte Leuchtstofflampe: <= 434 VA, 100 V AC Parallelkompensierte Leuchtstofflampe: <= 1.000 VA, 230 V AC Parallelkompensierte Leuchtstofflampe: <= 1.043 VA, 240 V AC Kapazitiv: , 10 A, 105 µF, 100 - 240 V AC |
Montage |
| Schutzart (IP) | IP20 | Verpackungseinheiten |
| VPE 1 Art | PCE |
| VPE 1 Menge | 1 |
| VPE 1 Gewicht | 50,000 g |
| VPE 1 Höhe | 3,300 cm |
| VPE 1 Breite | 7,400 cm |
| VPE 1 Länge | 8,000 cm |
| VPE 2 Art | CAR |
| VPE 2 Menge | 100 |
| VPE 2 Gewicht | 5,446 kg |
| VPE 2 Höhe | 20,100 cm |
| VPE 2 Breite | 30,800 cm |
| VPE 2 Länge | 40,200 cm | Vertragliche Gewährleistung |
| Gewährleistung | 18 months |
Nachhaltigkeit
Environmental data
EU-RoHS-Richtlinie
|
Konform mit Ausnahme EU-RoHS-Deklaration |
|
Quecksilberfrei
|
Ja |
| WEEE | Das Symbol der durchgestrichenen Mülltonne weist darauf hin, dass Elektro- bzw. Elektronik(alt)geräte nicht im Hausmüll entsorgt werden dürfen, sondern vom Besitzer einer getrennten Sammlung für Elektro- und Elektronikaltgeräte zugeführt werden müssen. |
| SCIP-Nummer | A8c15c4e-9a5a-42c3-80c1-d5baea54ed7a |
