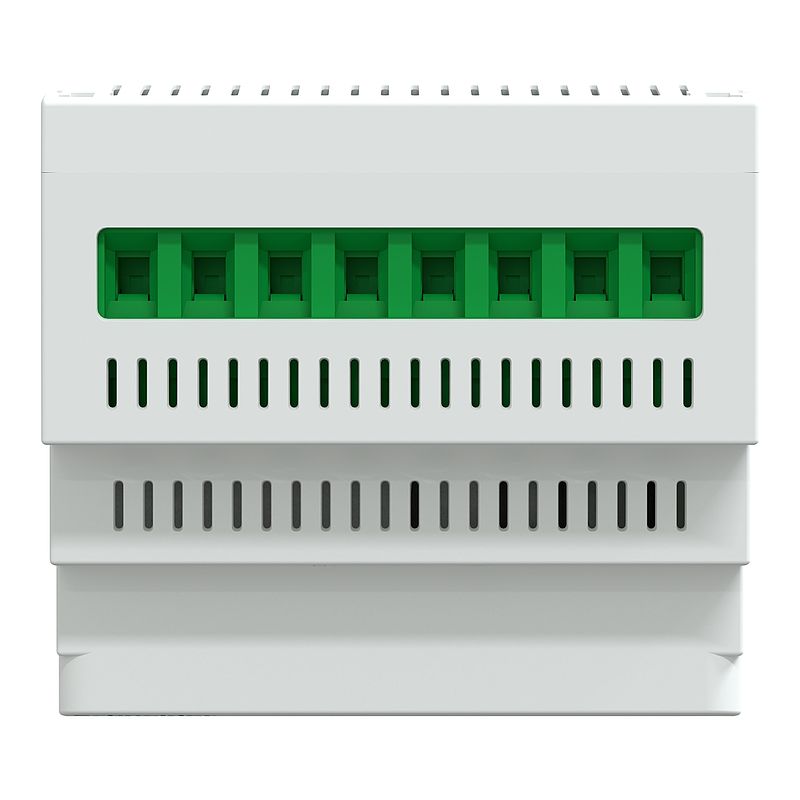

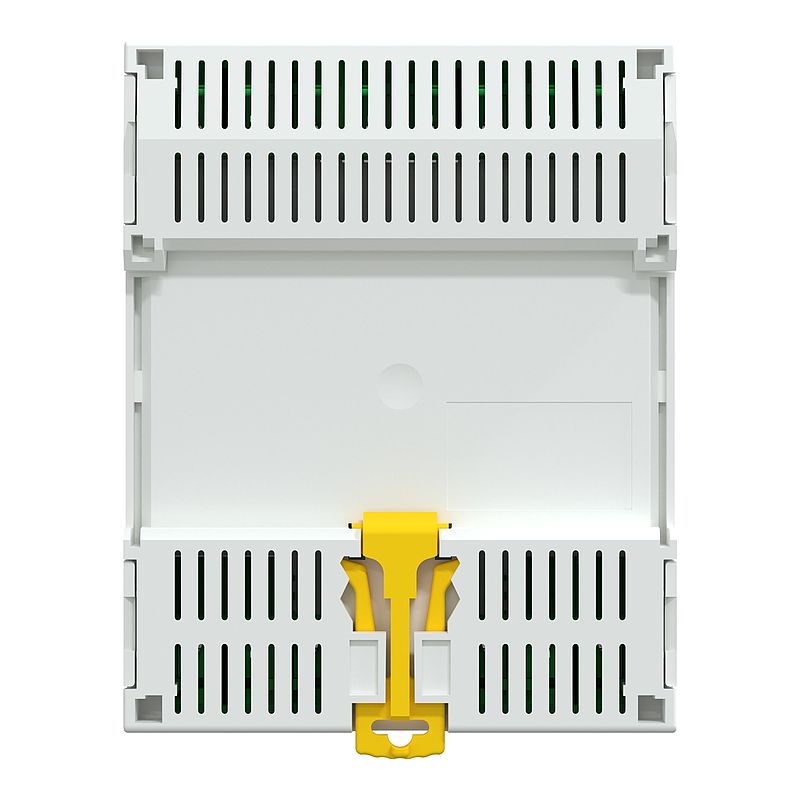

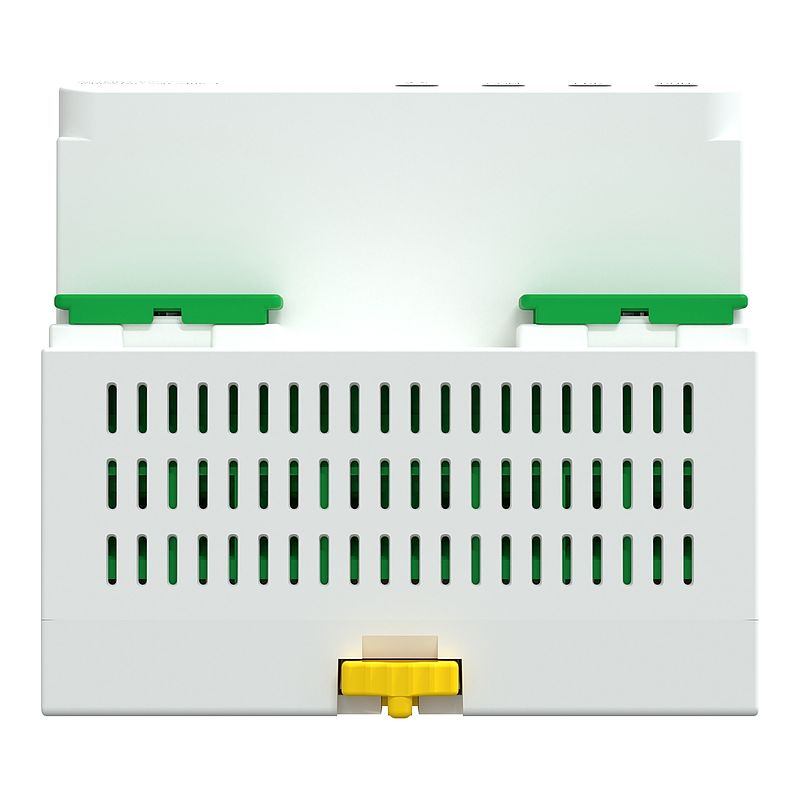

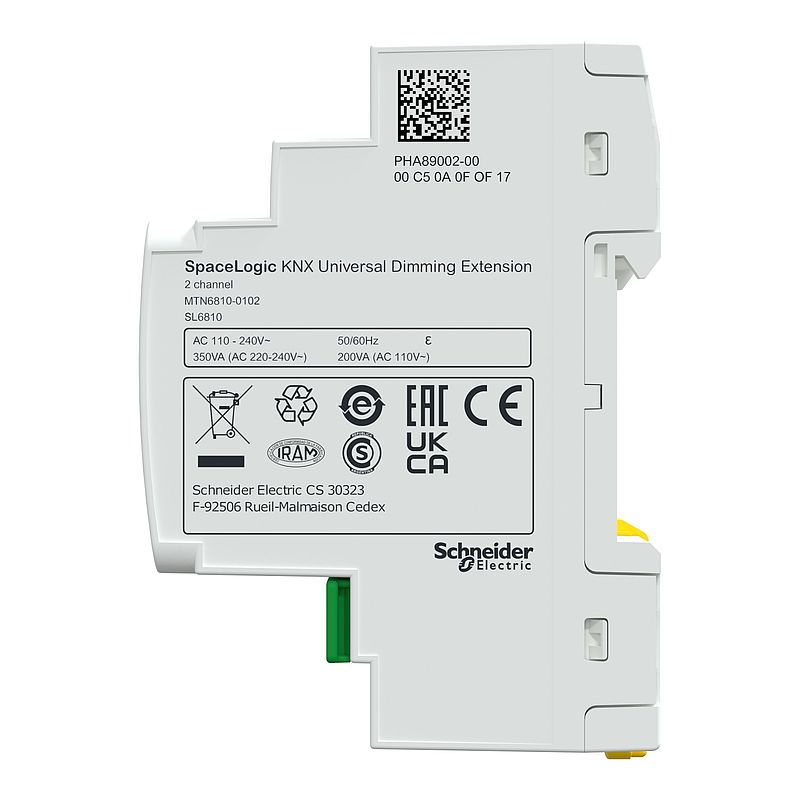

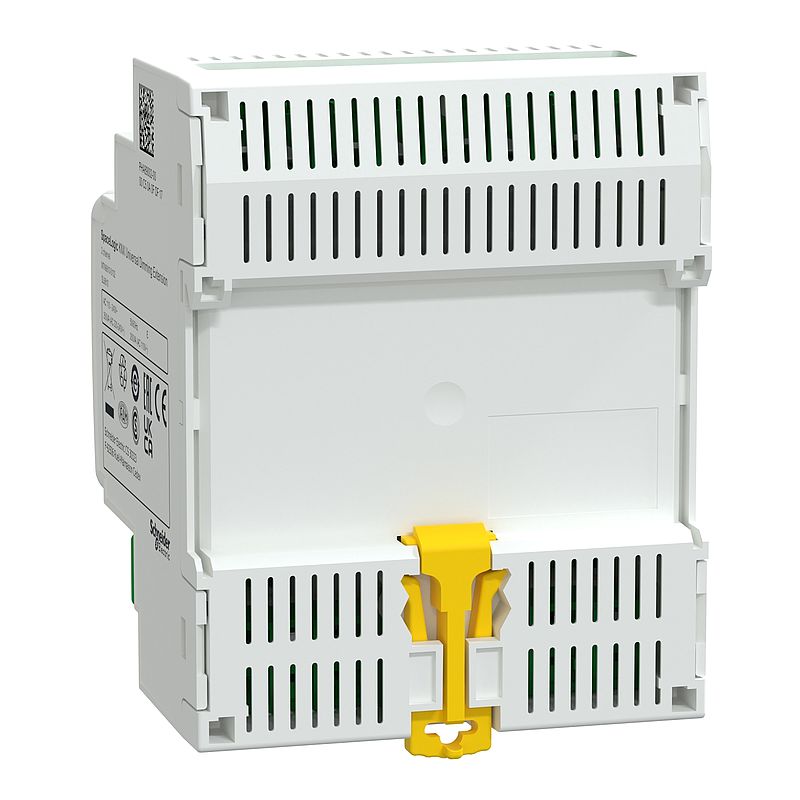

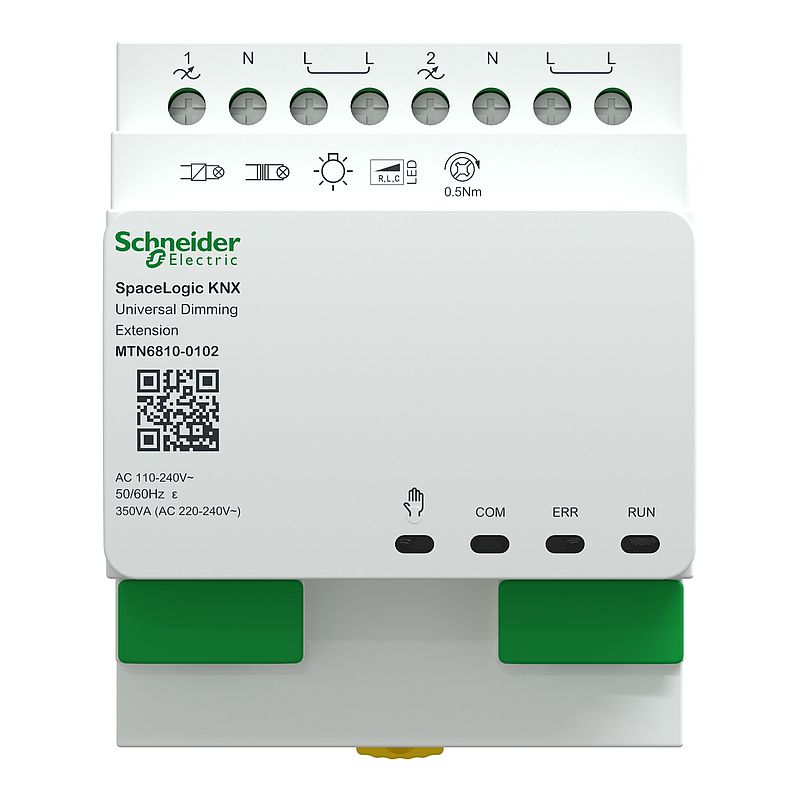

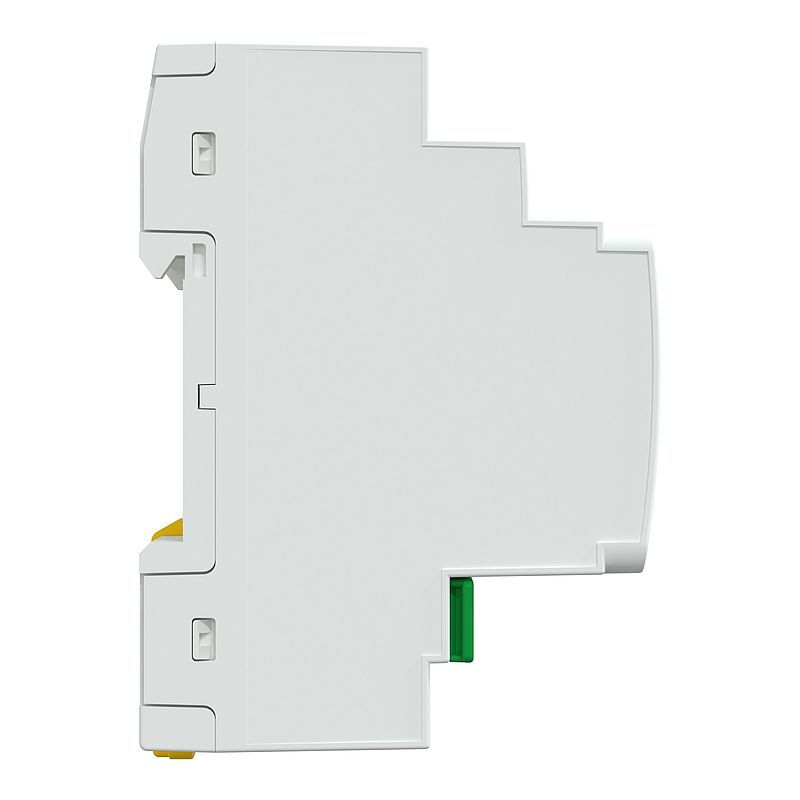

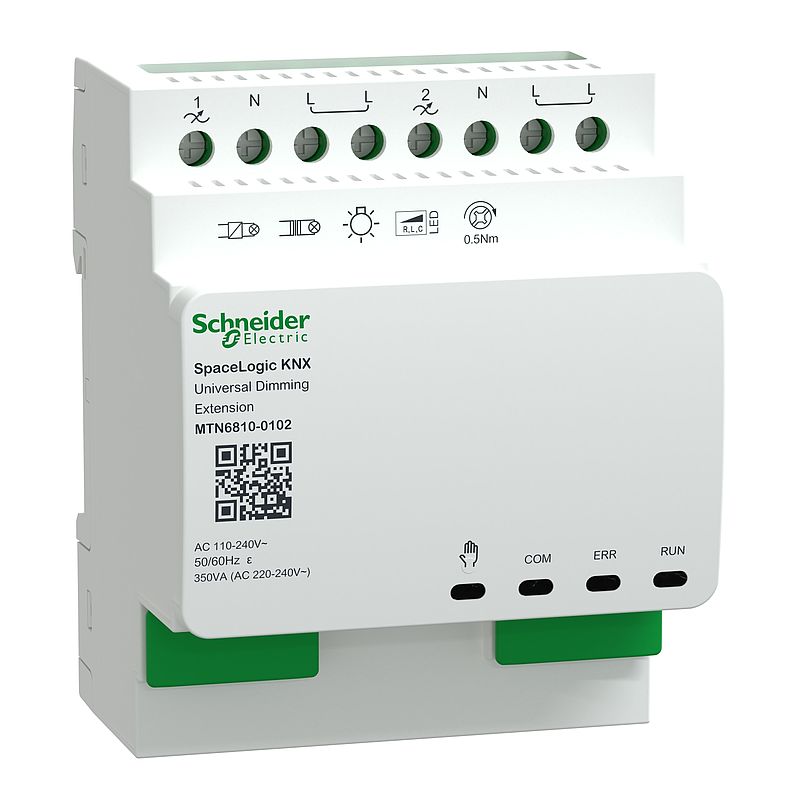

SpaceLogic KNX Erweiterung Dimmer
MTN6810-0102
Farbton: Weiß
Materialpreisgruppe
: G1
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Instruction sheet
|
Download |
|
Certificate
|
Download |
|
Catalog
|
Download |
|
User guide
|
Download |
|
Declaration of conformity
|
Download |
|
CAD
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
|
Software - Release
|
Download |
|
Software - Data Library
|
Download |
|
Offer Marketing Illustration
|
Download |
|
Firmware
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Produkt- oder Komponententyp | Dimmaktor |
| Betriebsmodus | KNX Bussystem |
| Bustyp | KNX |
| Baureihe | SpaceLogic KNX |
| Stromversorgungs-Eingangsstrom | 5 mA | Zusatzmerkmale |
| Montagehalterung | DIN-Schiene |
| [Ue] Bemessungs-Betriebsspannung | 230 V |
| Netzwerkfrequenz | 50/60 Hz |
| Anzahl der Ausgänge | 2 |
| Lasttyp | Glühlampe: 20 - 350 W bei 230 V 50 Hz AC Halogenlampe: 20 - 350 W bei 230 V Niedervolt-Halogen: 20 - 350 W bei 230 V RC-LED-Lampe: 2 - 200 W bei 230 V RL-LED-Lampe: 2 - 60 W bei 230 V |
| Farbton | Weiß | Montage |
| Schutzart (IP) | IP20 | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 260,000 g |
| VPE 1 Höhe | 8,100 cm |
| VPE 1 Breite | 12,600 cm |
| VPE 1 Länge | 15,900 cm |
| VPE 2 Art | S04 |
| VPE 2 Menge | 28 |
| VPE 2 Gewicht | 7,994 kg |
| VPE 2 Höhe | 30,000 cm |
| VPE 2 Breite | 40,000 cm |
| VPE 2 Länge | 60,000 cm | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 18 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| CO2-Bilanz (kg CO2 eq.) | 12 |
| Total lifecycle Carbon footprint | 12 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 2.5090401734613734 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 3 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.45847389674997796 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 0.5 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.0792892088617463 |
| CO₂-Fußabdruck der Installationsphase [A5] | 0.1 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 8.105474318908046 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 8 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.5985230747043709 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 0.6 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=MTN6810-0102_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Durchschnittlicher Prozentsatz der ReponsibleSteel zertifizierten Metalle | Halogenfreies Produkt |
| PVC-frei | Ja |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=MTN6810-0102_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
