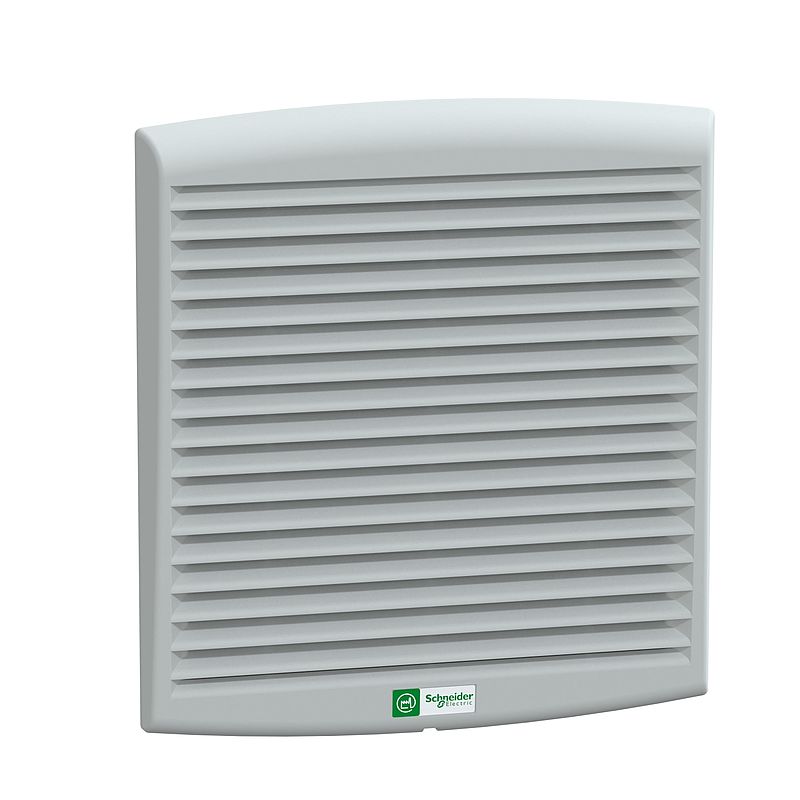

Ausgangsgitter-Ausschnitt, Kunststoff, 223x223mm, Außenabmess. 268x248mm IP54
NSYCAG223LPF
Materialpreisgruppe
: H5
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
CAE
|
Download |
|
Brochure
|
Download |
|
Environmental Disclosure
|
Download |
|
Instruction sheet
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
CAD
|
Download |
|
Catalog
|
Download |
|
Other technical guide
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | ClimaSys |
| Produkt | ClimaSys CA |
| Kompatible Produktfamilie | Prisma Prisma P ClimaSys ClimaSys CV Lüfter |
| Produkt- oder Komponententyp | Auslassgitter |
| Zubehör / Teilekategorie | Wärmemanagement-Zubehör |
| Zubehör / Zielkategorie | ClimaSys-Belüftungssystem |
| Befestigungsmodus | Durch Schrauben Geklippt |
| Geräteaufbau | 1 Stützrahmen 1 Externes Teil 1 G2 M1 synthetischer Standardfilter |
| Zertifizierung | CSA | Zusatzmerkmale |
| Material | Gespritzter Thermoplast (ASA PC) |
| Farbe | Externes Teil: grau (RAL 7035) |
| Abmessungen des Ausschnitts | 223 x 223 mm |
| Höhe | Extern: 268 mm |
| Breite | Extern: 248 mm |
| Tiefe | Extern : 18 mm | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 4,500 cm |
| VPE 1 Breite | 25,500 cm |
| VPE 1 Länge | 28,000 cm |
| Verpackungsgewicht (Lbs) | 533,000 g |
| VPE 2 Art | CAR |
| VPE 2 Menge | 10 |
| VPE 2 Höhe | 30,000 cm |
| VPE 2 Breite | 40,000 cm |
| VPE 2 Länge | 40,000 cm |
| VPE 2 Gewicht | 5,330 kg |
| VPE 3 Art | P12 |
| VPE 3 Menge | 240 |
| VPE 3 Höhe | 131,000 cm |
| VPE 3 Breite | 80,000 cm |
| VPE 3 Länge | 120,000 cm |
| VPE 3 Gewicht | 143,000 kg | Vertragliche Gewährleistung |
| Gewährleistung | 18 months |
Nachhaltigkeit
Nachhaltigkeit
| Frei von REACh-SVHC | Ja |
EU-RoHS-Richtlinie
|
Übererfüllung der Konformität (außerhalb EU RoHS-Scope) EU-RoHS-Deklaration |
| Frei von giftigen Schwermetallen | Ja |
|
Quecksilberfrei
|
Ja |
| Circular Econmomy-Eignung | Keine besonderen Recycling-Verfahren erforderlich |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Nein |
| Sustainable packaging | Nein |
