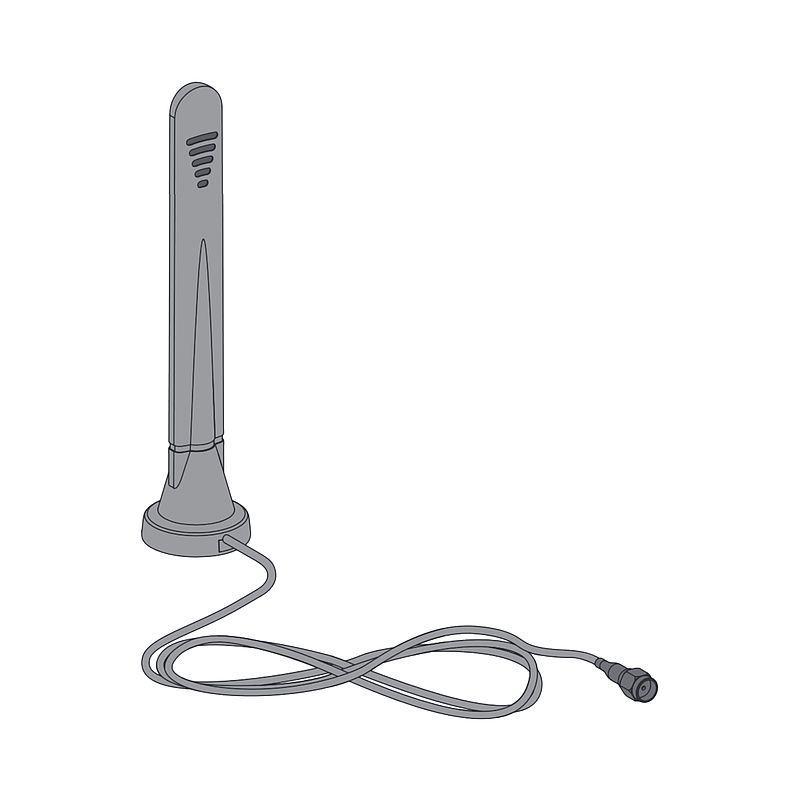

Panel Server Antenne Wlan / Wifi (IEEE802.11) / Funk (IEEE802.15.4)
PASA-ANT1
Materialpreisgruppe
: DT
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
Technical illustration
|
Download |
|
Instruction sheet
|
Download |
|
User guide
|
Download |
|
Promotional video
|
Video anzeigen |
|
Other technical guide
|
Download |
|
Architecture Guidelines & TVDA
|
Download |
|
Specification sheet
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | EcoStruxure |
| Produkt- oder Komponententyp | Antenne |
| Zubehör / Teilekategorie | Kommunikationszubehör | Zusatzmerkmale |
| Bandbreite | 2,4 GHz 5 GHz |
| Antennenverstärkung | 3 dBi |
| Kompatible Produktfamilie | EcoStruxure Panel Server Universal EcoStruxure Panel Server Advanced |
| Elektrischer Anschluss | Kabel RP-SMA 3 m |
| Durchschnittliche Impedanz | 50 Ohm |
| Farbe | Schwarz |
| Länge | 155,8 mm |
| Produktgewicht | 145 g | Montage |
| Schutzart (IP) | IP65 |
| Umgebungstemperatur bei Betrieb | -35…65 °C |
| Umgebungstemperatur bei Lagerung | -5…85 °C | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 5 cm |
| VPE 1 Breite | 9 cm |
| VPE 1 Länge | 18 cm |
| Verpackungsgewicht (Lbs) | 201 g |
| VPE 2 Art | S03 |
| VPE 2 Menge | 30 |
| VPE 2 Höhe | 30 cm |
| VPE 2 Breite | 30 cm |
| VPE 2 Länge | 40 cm |
| VPE 2 Gewicht | 6,587 kg | Vertragliche Gewährleistung |
| Gewährleistung | 18 Monate |
Nachhaltigkeit
Nachhaltigkeit
| Frei von REACh-SVHC | Ja |
EU-RoHS-Richtlinie
|
Konform EU-RoHS-Deklaration |
| Frei von giftigen Schwermetallen | Ja |
|
Quecksilberfrei
|
Ja |
| SCIP-Nummer | 8fd200e0-fc2c-4c52-ba68-62f2aced16fe |
| Verpackung ohne Kunststoff | Ja |
| Verpackung mit Recycling-Karton | Ja |
| PVC-frei | Ja |
| Durchschnittlicher Prozentsatz der ReponsibleSteel zertifizierten Metalle | Produkt mit halogenfreien Kunststoffteilen und Kabeln |
| Rücknahme | Ja |
| Sustainable packaging | Nein |
| WEEE Label | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
