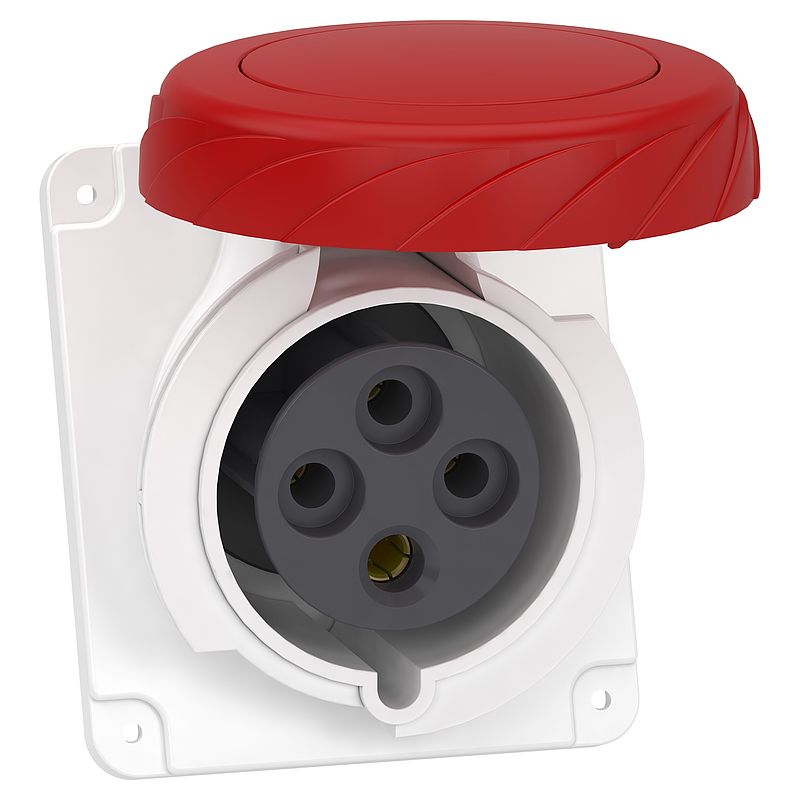

CEE Anbausteckdose, Schraubklemmen, 32A, 3p+E, 380-415 V AC

PKF32F734

Hauptdokumente

Produktdatenblatt Download
Environmental Disclosure Download
Promotional video Video anzeigen
How to video Video anzeigen
CAD Download
Catalog Download
Declaration of Conformity (Sustainability) Download
Certificate Download
Offer Marketing Illustration Download

Spezifikationen

Hauptmerkmale
Baureihe Mureva
Produkt- oder Komponententyp Sockel
Kurzbezeichnung des Geräts Mureva socket
Stecker/Steckdosen-Kategorie Niederspannung
Beschreibung der Pole 3P + E
Netzwerktyp AC
Ausgangsstandard Industriell
Zusatzmerkmale
Montagemodus Schalttafelmontage
Stecker/Steckdose/Steuerstatus Abgewinkelt
[In] Bemessungsstrom 32 A
[Ue] Bemessungs-Betriebsspannung 380 - 415 V
Netzwerkfrequenz 50/60 Hz
Erd.-Zapf.-Pos. im Uhrzeigers. 6 h
Stecker, Steckdosenmaterial Gehäuse: selbstlöschender Kunststoffwerkstoff
Kontaktmaterial Hülsen: Messing
Anschlüsse - Klemmen Unverlierbare Schrauben
Kabel-Querschnitt 2,5…10 mm²
Produktgewicht 0,242 kg
Basisabmessungen 90 x 100 mm
Höhe 100 mm
Breite 95 mm
Tiefe 118 mm
Farbe Grau (RAL 7035)
Spannungfarbe Rot
Montage
Normen IEC 60309-1
IEC 60309-2
Schutzart (IP) IP67
Schutzart (IK) IK08 entspricht EN 62262
Feuerbeständigkeit 850 °C entspricht IEC 60695-2-1
Relative Luftfeuchtigkeit 50 % bei 40 °C
70 % bei 30 °C
90 % bei 20 °C
Umgebungstemperatur bei Betrieb 35 °C ( 86400 s )
Schutzart (IP) IP67
Verpackungseinheiten
VPE 1 Art PCE
Anzahl der Geräte pro Packung 1
Verpackungsgewicht (Lbs) 234,000 g
VPE 1 Höhe 9,100 cm
VPE 1 Breite 9,400 cm
VPE 1 Länge 9,900 cm
VPE 2 Art BB1
VPE 2 Menge 8
VPE 2 Gewicht 2,052 kg
VPE 2 Höhe 17,600 cm
VPE 2 Breite 26,800 cm
VPE 2 Länge 27,200 cm
VPE 3 Art S03
VPE 3 Menge 16
VPE 3 Gewicht 4,591 kg
VPE 3 Höhe 30,000 cm
VPE 3 Breite 30,000 cm
VPE 3 Länge 40,000 cm
Vertragliche Gewährleistung
Garantie (in Monaten) 18

Nachhaltigkeit

Nachhaltigkeit
Quecksilberfrei Ja
SCIP-Nummer 89350e0d-a4ac-4516-bf86-fdaed8a227fc
Circular Econmomy-Eignung Keine besonderen Recycling-Verfahren erforderlich
Verpackung ohne Kunststoff Ja
Verpackung mit Recycling-Karton Ja
Rücknahme Nein
CO2-Bilanz (kg CO2 eq.) 21
Sustainable packaging Nein
Total lifecycle Carbon footprint 21 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3] 1.5602570683315278
CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] 2 kg CO2 eq.
Carbon footprint of the distribution phase [A4] 0.03000770403298791
CO₂-Fußabdruck der Distributionsphase [A4] 0 kg CO2 eq.
CO₂-Fußabdruck der Installationsphase [A5] 0 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6] 19.119
CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] 19 kg CO2 eq.
Carbon footprint of the end-of-life phase [C1 to C4] 0.7228347462855595
CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] 0.7 kg CO2 eq.
WEEE-Kennzeichnung Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen.
Recyclingfähigkeitspotential in % 33
EU-RoHS-Richtlinie https://download.se.com/files?p_Doc_Ref=PKF32F734_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29
REACh-Verordnung https://download.se.com/files?p_Doc_Ref=PKF32F734_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29
Durchschnittlicher Prozentsatz des recycleten Kunststoffgehaltes 41 %
PVC-frei Ja
Durchschnittlicher Prozentsatz der ReponsibleSteel zertifizierten Metalle Produkt mit halogenfreien Kunststoffteilen
PFAS-Verordnung der OECD https://download.se.com/files?p_Doc_Ref=PKF32F734_OECD_PFAS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29
POP-Richtlinie https://download.se.com/files?p_Doc_Ref=PKF32F734_POP_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29
