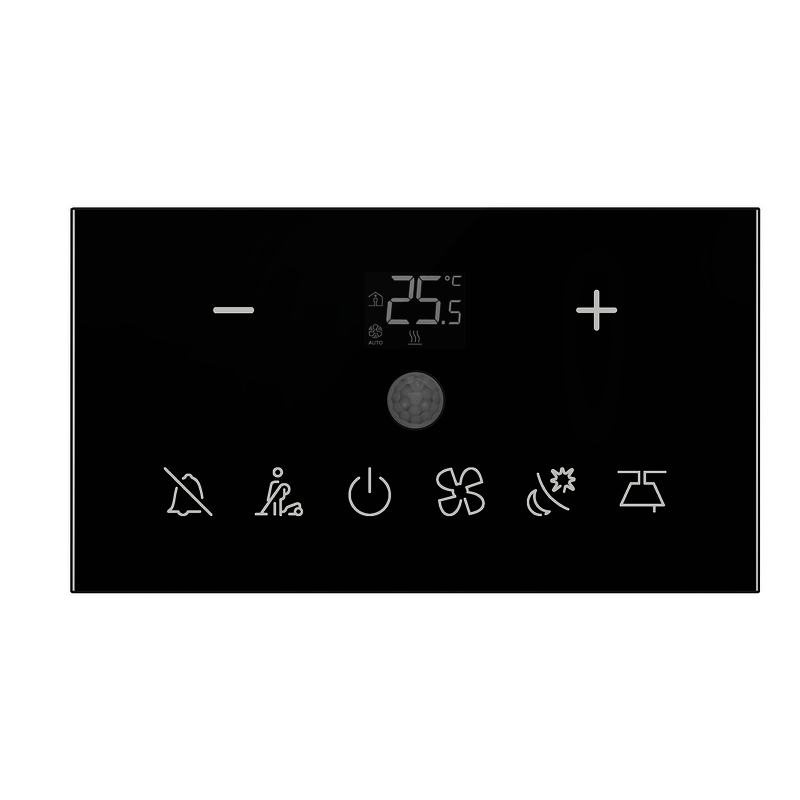

SpaceLogic Modbus 8 button Glass thermostat with PIR sensor
SLGM08THM
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
Technical Drawing
|
Download |
|
Specification guide
|
Download |
|
Circularity Profile
|
Download |
|
Instruction sheet
|
Download |
|
User guide
|
Download |
|
CAD
|
Download |
|
Firmware
|
Download |
|
Environmental Disclosure
|
Download |
|
Specification sheet
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Produktname | Glas-Touchpanels |
| product type | Glas-Tastfeld für Thermostat |
| Farbton | Vordere Abdeckung: Champagnergold Vordere Abdeckung: silber Vordere Abdeckung: weiß Vordere Abdeckung: schwarz |
Zusatzmerkmale |
| Steuertastentyp | konfigurierbar Schaltfläche |
| [UH,nom] Bemessungs-Betriebsspannung | 24 V DC |
| Stromaufnahme | <= 30 mA |
| Sensortyp | PIR |
| Kommunikationsprotokoll | Modbus RTU mit RS485 Anschlüsse, mittel: Twisted-Pair-Kabel (geschirmt) |
| Montagemodus | Aufrastbar |
| Höhe | 170 mm |
| Breite | 95 mm |
| Tiefe | 31,9 mm |
| Relative Luftfeuchtigkeit | 10…90 % | Montage |
| Umgebungstemperatur bei Lagerung | -40…70 °C |
| Umgebungstemperatur bei Betrieb | 0…45 °C |
| Schutzart (IP) | IP20 | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 3,19 cm |
| VPE 1 Breite | 9,5 cm |
| VPE 1 Länge | 17 cm |
| Verpackungsgewicht (Lbs) | 352 g |
| VPE 2 Art | S03 |
| VPE 2 Menge | 12 |
| VPE 2 Höhe | 30 cm |
| VPE 2 Breite | 30 cm |
| VPE 2 Länge | 40 cm |
| VPE 2 Gewicht | 6,154 kg |
| VPE 3 Art | P12 |
| VPE 3 Menge | 576 |
| VPE 3 Höhe | 10 cm |
| VPE 3 Breite | 80 cm |
| VPE 3 Länge | 120 cm |
| VPE 3 Gewicht | 115,526 kg | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 18 |
Nachhaltigkeit
Nachhaltigkeit
| Total lifecycle Carbon footprint | 15 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 14.063 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 14 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.14698 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 0.1 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.26582 |
| CO₂-Fußabdruck der Installationsphase [A5] | 0.3 kg CO2 eq. |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 0 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.64921 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 0.6 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 15 |
| Verpackung mit Recycling-Karton | Nein |
| Verpackung ohne Kunststoff | Nein |
| Rücknahme | Ja |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| Recyclingfähigkeitspotential in % | 35 |
| EU-RoHS-Richtlinie | https://download.schneider-electric.com/files?p_Doc_Ref=SLGM08THM_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
