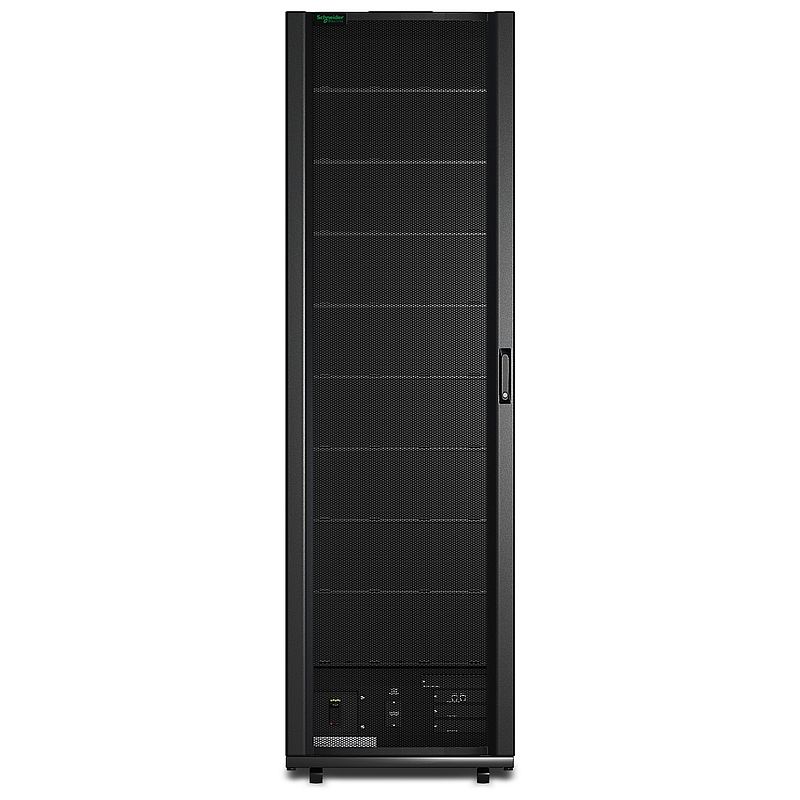

APC Symmetra PX Batterierahmen für 400 V, PX 96/160 kW & 208 V, PX 100 kW für 9 Batteriemodule
SYCFXR9
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Technical Drawing
|
Download |
|
BIM Model
|
Download |
|
User guide
|
Download |
|
Certificate of Origin
|
Download |
|
Certificate
|
Download |
|
Declaration of conformity
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
|
Specification guide
|
Download |
Dieses Produkt ist kompatibel mit
Spezifikationen
| Übersicht | |
|---|---|
| Lieferzeit | Versand erfolgt normalerweise innerhalb von acht Wochen | Hauptmerkmale |
| Anzahl der Rack-Einheiten | 42U |
| Batterietyp | VRLA |
| Geliefertes Zubehör | Installationsanleitung Benutzerhandbuch |
Abmessungen |
| Farbe | Schwarz |
| Höhe | 199,1 cm |
| Breite | 60 cm |
| Tiefe | 107 cm |
| Produktgewicht | 345 kg |
| Montagemodus | Nicht Rack-montierbar |
| USB-kompatibel | No | Konformität |
| Produktzertifizierungen | CE |
| Normen | EN/IEC 62040-2 EN/IEC 62040-3 EN/IEC 62040-1-1 |
Umgebung |
| Umgebungstemperatur bei Betrieb | 0…40 °C |
| Betriebshöhe | 0 - 3.333 ft |
| Relative Luftfeuchtigkeit | 0…95 % |
| Umgebungstemperatur bei Lagerung | -15…40 °C |
| Aufbewahrungshöhe | 0…15240 m |
| Relative Feuchtigkeit bei Lagerung | 0…95 % | Batterien und Überbrückungszeit |
| Akkuplatzierung | Batteriegehäuse |
| Anzahl der freien Batterieschächte | 9 |
| Gehäusevariante | 19-Zoll-Batteriefach |
| Zusätzliche Informationen | Request SYBT9-B4 für Ersatzbatterie | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 379 kg |
| VPE 1 Höhe | 215 cm |
| VPE 1 Breite | 121 cm |
| VPE 1 Länge | 84,8 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 12 |
Nachhaltigkeit
Nachhaltigkeit
| Bleifrei | Ja |
| SCIP-Nummer | 5ac12844-46eb-471b-94f1-318e06a714a6 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| CO2-Bilanz (kg CO2 eq.) | 1 |
| Total lifecycle Carbon footprint | 0 kg CO2 eq. |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 0 kg CO2 eq. |
| CO₂-Fußabdruck der Distributionsphase [A4] | 0 kg CO2 eq. |
| CO₂-Fußabdruck der Installationsphase [A5] | 0 kg CO2 eq. |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 0 kg CO2 eq. |
| Sustainable packaging | Nein |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 0 kg CO2 eq. |
| REACh-Verordnung | https://download.schneider-electric.com/files?p_Doc_Ref=SYCFXR9_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| EU-RoHS-Richtlinie | https://download.schneider-electric.com/files?p_Doc_Ref=SYCFXR9_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
27 Dokumente
SYCFXR9 REACh-Erklärung
 24/03/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| SYCFXR9 EU-RoHS-Erklärung
24/03/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| Symmetra PX 48/96/160 kW UCKA Declaration of Conformity 15/03/25 · Declaration of conformity | 0,3 MB | Download |
| Symmetra™ PX 96 et 160 kW 400 V Installation
15/03/25 · User guide |
10,6 MB | Download |
| Symmetra PX 48, 96 & 160 kW 400 V & 100 kW 208 V Funzionamento 15/03/25 · User guide | 3,5 MB | Download |
| Symmetra PX 48, 96 & 160 kW 400 V & 100 kW 208 V Funcionamiento 15/03/25 · User guide | 3,5 MB | Download |
| Symmetra™ PX 96 y 160 kW 400 V Instalación
15/03/25 · User guide |
10,7 MB | Download |
| Symmetra™ PX 96 e 160 kW 400 V Installazione
15/03/25 · User guide |
10,6 MB | Download |
| Symmetra PX 48, 96 &160 kW 400 V & 100 kW 208 V Fonctionnement
15/03/25 · User guide |
3,5 MB | Download |
| Office of Statewide Health Planning and Development (OSHPD) Preapproval: Symmetra PX 100, RPP 208V and RPP480/415V w. transformer
15/03/25 · Certificate |
1,7 MB | Download |
| Symmetra PX 48, Symmetra PX 96-160 kW 400 V Certificate of Origin
15/03/25 · Certificate of Origin |
0,1 MB | Download |
| Symmetra PX 48-160 kW Cmim Declaration of Conformity
15/03/25 · Certificate |
0,1 MB | Download |
| Symmetra PX 208 V Certificate of Origin 15/03/25 · Certificate of Origin | 0,1 MB | Download |
| Plexiglass French Door Assembly for Symmetra® PX160kW PDU-XR and XR Units Install Sheet
15/03/25 · User guide |
0,2 MB | Download |
| Symmetra PX 96 kW and 160 kW 400 V Installation 15/03/25 · User guide | 10,4 MB | Download |
| Symmetra PX 48, 96 and 160 kW 400 V and 100 kW 208 V Operation 15/03/25 · User guide | 3,5 MB | Download |
| Symmetra™ PX 96 und 160 kW 400 V Installation
15/03/25 · User guide |
10,5 MB | Download |
| Symmetra PX 48, 96 & 160 kW 400 V & 100 kW 208 V Betrieb 15/03/25 · User guide | 4,0 MB | Download |
| SY32K160H-PD-Symmetra PX 32-160kW UPS with PDU Top or Bottom Feed
15/03/25 · Technical Drawing |
9,9 MB | Download |
| SY32K160H-Symmetra PX 32-160kW UPS Top or Bottom Feed
15/03/25 · Technical Drawing |
6,7 MB | Download |
| SYCFXR9 - Symmetra PX 96, 100 and 160 kW, Battery Cabinet
15/03/25 · Technical Drawing |
2,8 MB | Download |
| Symmetra PX 48 kW, 96 kW, and 160 kW EU Declaration of Conformity
15/03/25 · Declaration of conformity |
0,2 MB | Download |
| Symmetra_PX_Battery_96_100_160kW_Schneider_Electric_BIM_Model
15/02/25 · BIM Model |
0,7 MB | Download |
| 01/01/70 Specification guide | 0,0 MB | Download |
| 01/01/70 Environmental Disclosure | 0,0 MB | Download |
| 01/01/70 User guide | 0,0 MB | Download |
| 01/01/70 Circularity Profile | 0,0 MB | Download |
