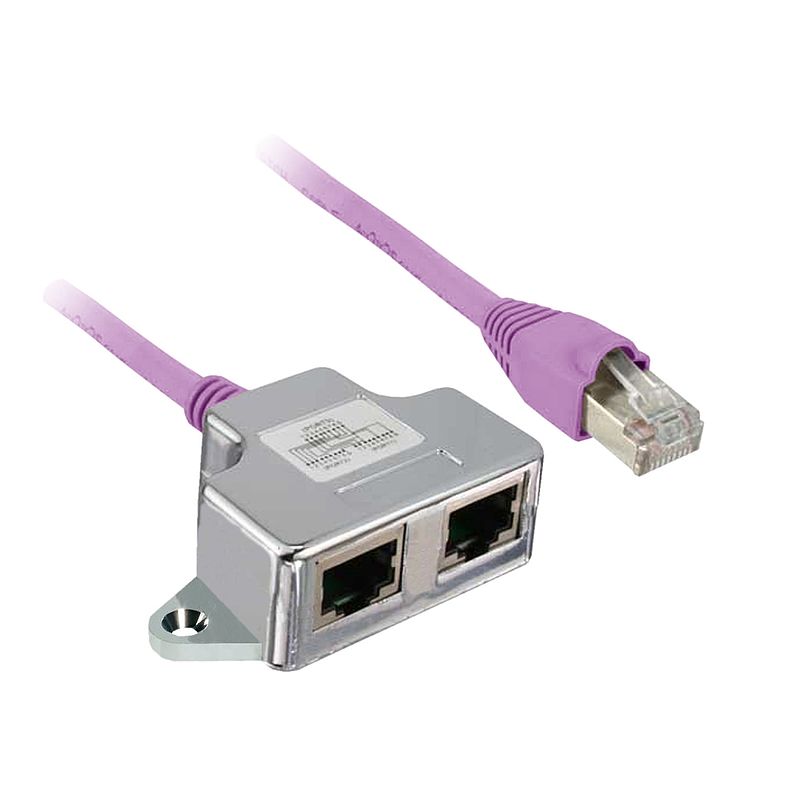

CANopen-Verteiler, für Lexium SD3
TCSCTN023F13M03
Materialpreisgruppe
: CI
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
User guide
|
Download |
|
Catalog
|
Download |
|
Instruction sheet
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | CANopen |
| Kompatible Produktfamilie | Altivar 71 Altivar Maschine ATV320 Lexium SD3 Altivar Maschine ATV340 außer Sercos-Antriebe Altivar 312 |
| Bustyp | CANopen |
| Zubehör / Teilekategorie | Anschlusszubehör |
| Zubehör / Teiletyp | Adapter |
| Produkt- oder Komponententyp | CANopen-Klemmenadapter |
| Zubehör / Zielkategorie | Für Leitung gemäß CANopen-Standard | Zusatzmerkmale |
| elektrische Verbindung | 2 Stecker RJ45 zum Anschließen des CANopen Busses in Reihe <0,3 m 1 Kabel RJ45 zum Anschließen des Antriebs |
Verpackungseinheiten |
| VPE 1 Art | PCE |
| VPE 1 Menge | 1 |
| VPE 1 Gewicht | 51,000 g |
| VPE 1 Höhe | 3,000 cm |
| VPE 1 Breite | 13,000 cm |
| VPE 1 Länge | 13,000 cm |
| VPE 2 Art | S03 |
| VPE 2 Menge | 60 |
| VPE 2 Gewicht | 3,548 kg |
| VPE 2 Höhe | 30,000 cm |
| VPE 2 Breite | 30,000 cm |
| VPE 2 Länge | 40,000 cm |
| VPE 3 Art | P06 |
| VPE 3 Menge | 480 |
| VPE 3 Gewicht | 41,384 kg |
| VPE 3 Höhe | 75,000 cm |
| VPE 3 Breite | 60,000 cm |
| VPE 3 Länge | 80,000 cm | Vertragliche Gewährleistung |
| Gewährleistung | 18 months |
Nachhaltigkeit
Environmental data
| REACh frei von SVHC | Ja |
EU-RoHS-Richtlinie
|
Proaktive Einhaltung (Produkt fällt nicht unter die rechtlichen Bestimmungen von EU RoHS) EU-RoHS-Deklaration |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | No |
