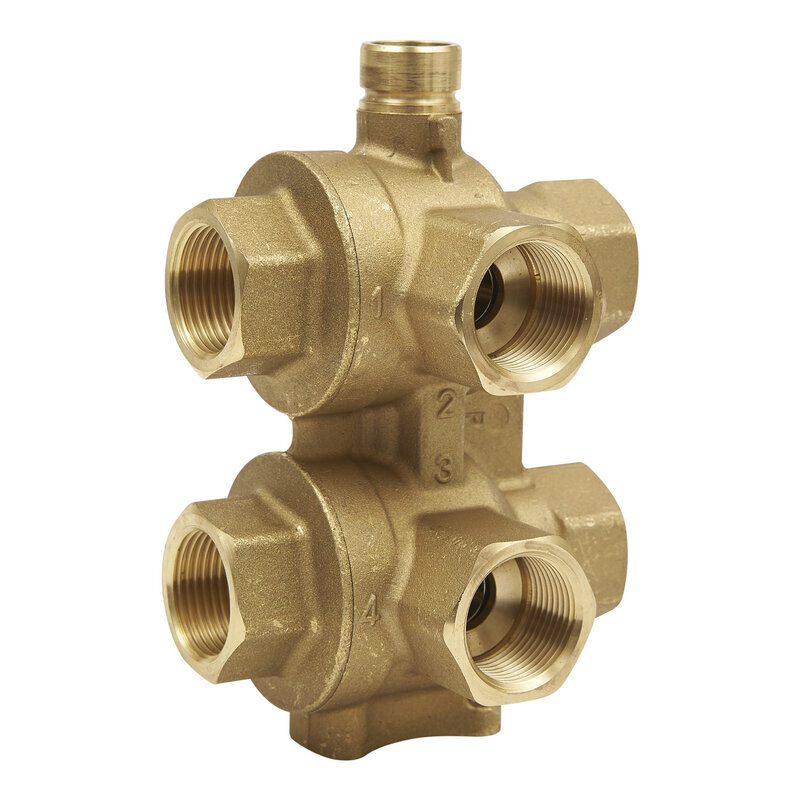

6-Wege DN20 Umschaltventil
VB601R-20B
Hauptdokumente
 Produktdatenblatt |
Download |
|
Specification guide
|
Download |
|
Other technical guide
|
Download |
|
Catalog
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Instruction sheet
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Produkt- oder Komponententyp | Ventil |
| Ventiltyp | Kugel |
| Ventilanschlussgröße | Rp Innen |
| Gehäusegröße | 20 mm (3/4 Zoll) |
| Rohrgröße | DN20 |
| Durchflusskoeffizient | 4 kvs |
| Druckklasse | PN16 |
| Temperatur der Betriebsflüssigkeit | 0…90 °C |
| Gehäusematerial | CW602N Messing |
| Sitzmaterial | EPDM/PTFE |
| Zielregion | Europa Asien-Pazifik. Australien. |
Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 16,2 cm |
| VPE 1 Breite | 10,2 cm |
| VPE 1 Länge | 7,6 cm |
| Verpackungsgewicht (Lbs) | 1,74 kg |
| VPE 2 Art | S02 |
| VPE 2 Menge | 4 |
| VPE 2 Höhe | 15 cm |
| VPE 2 Breite | 30 cm |
| VPE 2 Länge | 40 cm |
| VPE 2 Gewicht | 7,699 kg | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 18 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| Sustainable packaging | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Verpackung ohne Kunststoff | Nein |
| Rücknahme | Ja |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=VB601R-20B_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=VB601R-20B_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
