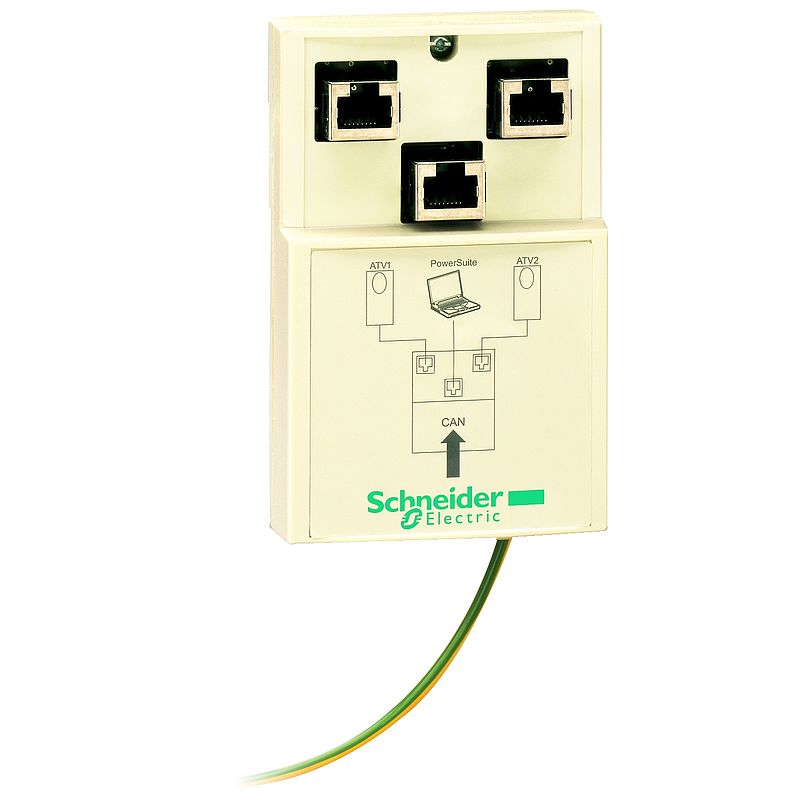

CANopen-Abzweigdose, 2 x RJ45 und 1 x RJ45
VW3CANTAP2
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Instruction sheet
|
Download |
|
User guide
|
Download |
|
Katalog
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | Altivar |
| Bustyp | CANopen |
| Zubehör / Teilekategorie | Anschlusszubehör |
| Zubehör / Teiletyp | Abzweigverbindung (Tap) |
| Zubehör / Zielkategorie | CANopen Bus |
| Menge pro Satz | Satz à 1 Stück |
| Produkt- oder Komponententyp | Steckersatz | Zusatzmerkmale |
| Kompatible Produktfamilie | Altivar 31 Altivar Maschine ATV340 außer Sercos-Antriebe Lexium SD3 Modicon M238 Altivar 31C Altivar Prozess ATV900 Altivar 312 CANopen Altivar Maschine ATV320 Modicon M258 Harmony XBT GC, GT/GK Modicon LMC058 Altivar 32 Altivar Prozess ATV600 |
| Kommunikationsprotokoll | CANopen |
| Elektrische Verbindung | 2 Stecker RJ45 |
| Produktgewicht | 0,48 kg | Montage |
| Schutzart (IP) | IP20 | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 234,000 g |
| VPE 1 Höhe | 7,000 cm |
| VPE 1 Breite | 16,600 cm |
| VPE 1 Länge | 22,700 cm |
| VPE 2 Art | S03 |
| VPE 2 Menge | 7 |
| VPE 2 Gewicht | 2,079 kg |
| VPE 2 Höhe | 30 cm |
| VPE 2 Breite | 30 cm |
| VPE 2 Länge | 40 cm |
| VPE 3 Art | P06 |
| VPE 3 Menge | 56 |
| VPE 3 Höhe | 75,000 cm |
| VPE 3 Breite | 60,000 cm |
| VPE 3 Länge | 80,000 cm |
| VPE 3 Gewicht | 26,496 kg | Vertragliche Gewährleistung |
| Gewährleistung | 18 months |
Nachhaltigkeit
Nachhaltigkeit
EU-RoHS-Richtlinie
|
Übererfüllung der Konformität (außerhalb EU RoHS-Scope) EU-RoHS-Deklaration |
|
Quecksilberfrei
|
Ja |
| SCIP-Nummer | Bb488729-0ebb-485f-ba18-579d68774a42 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| Sustainable packaging | Nein |
