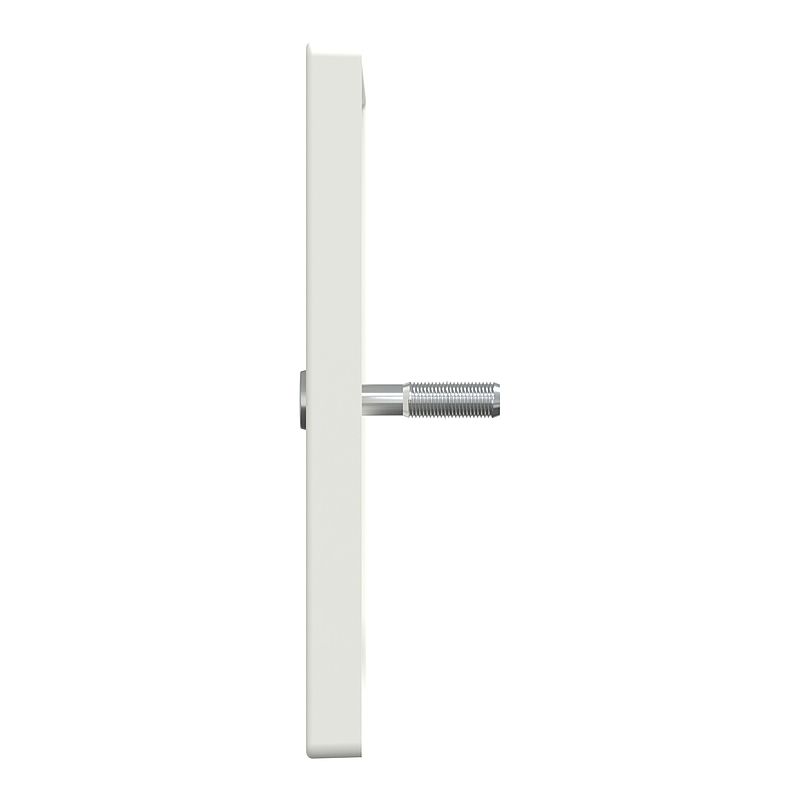

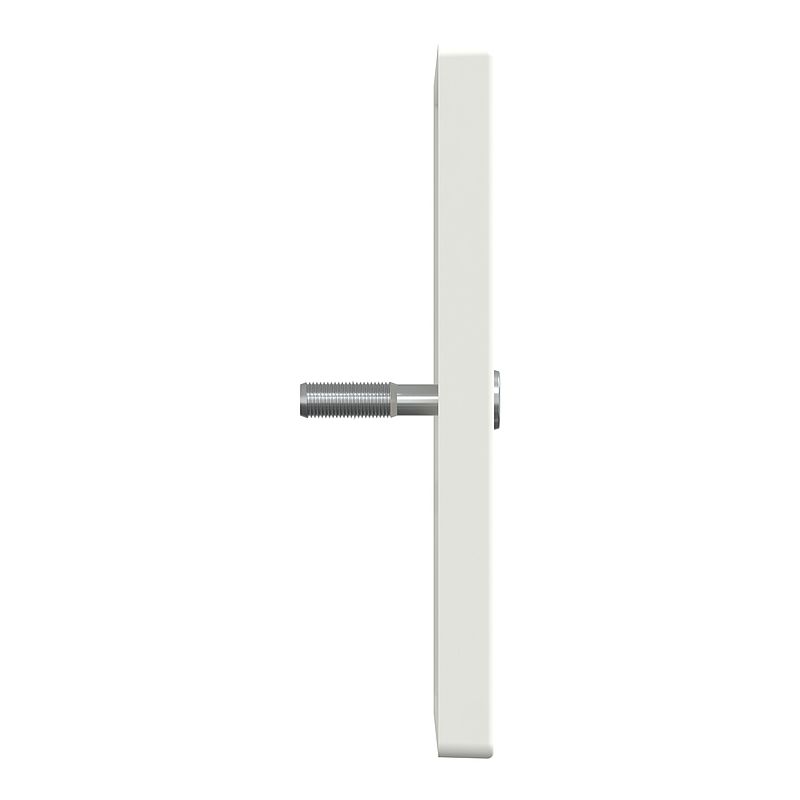

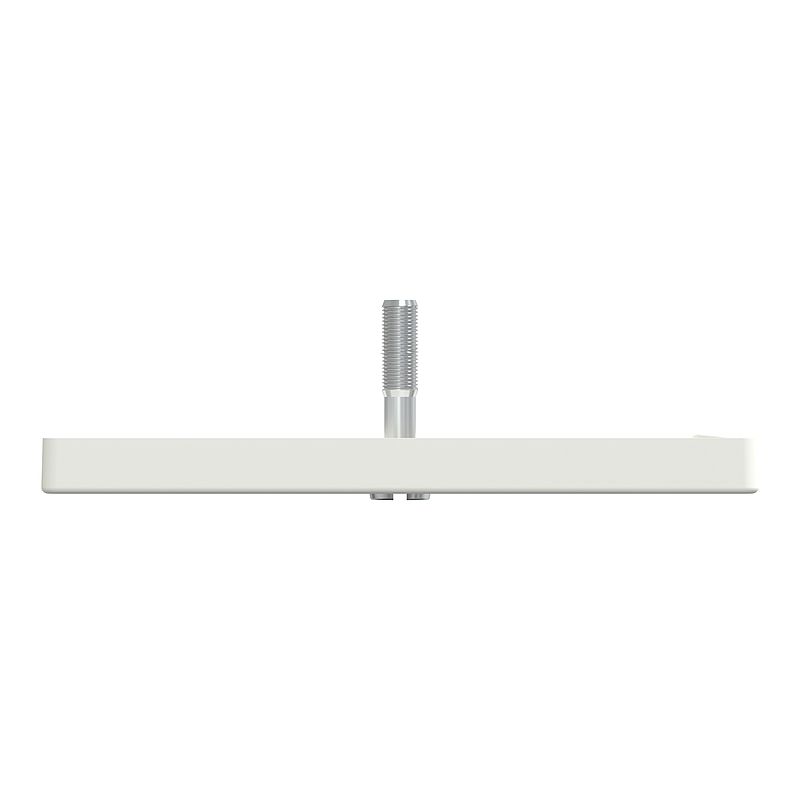

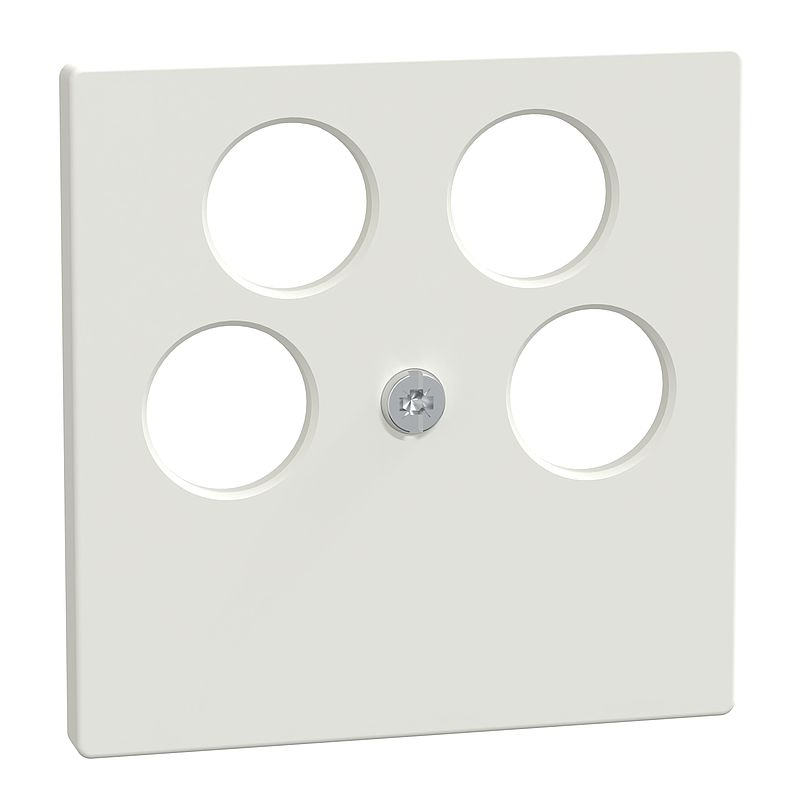

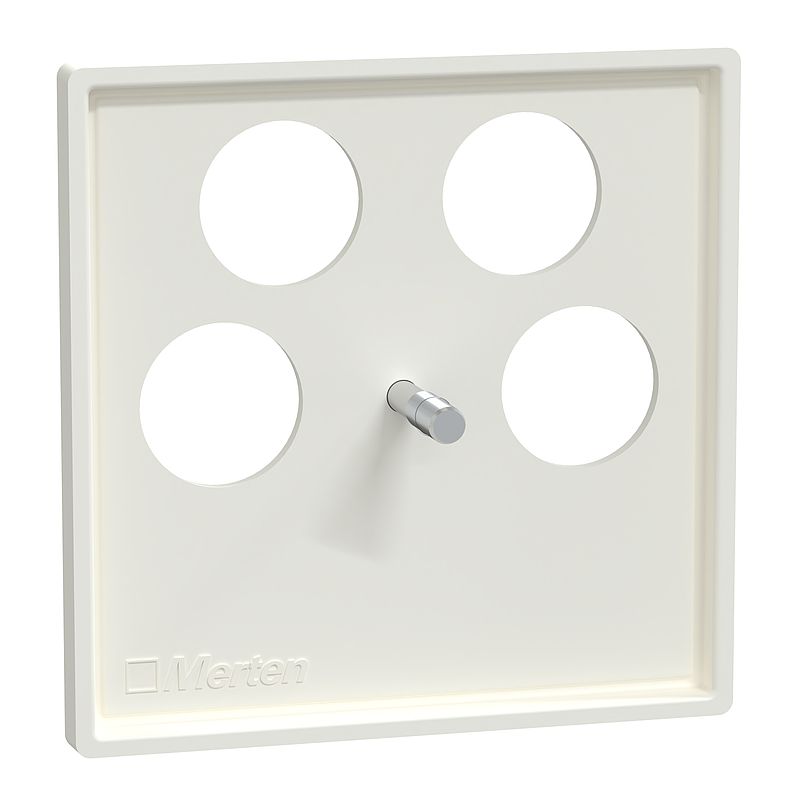

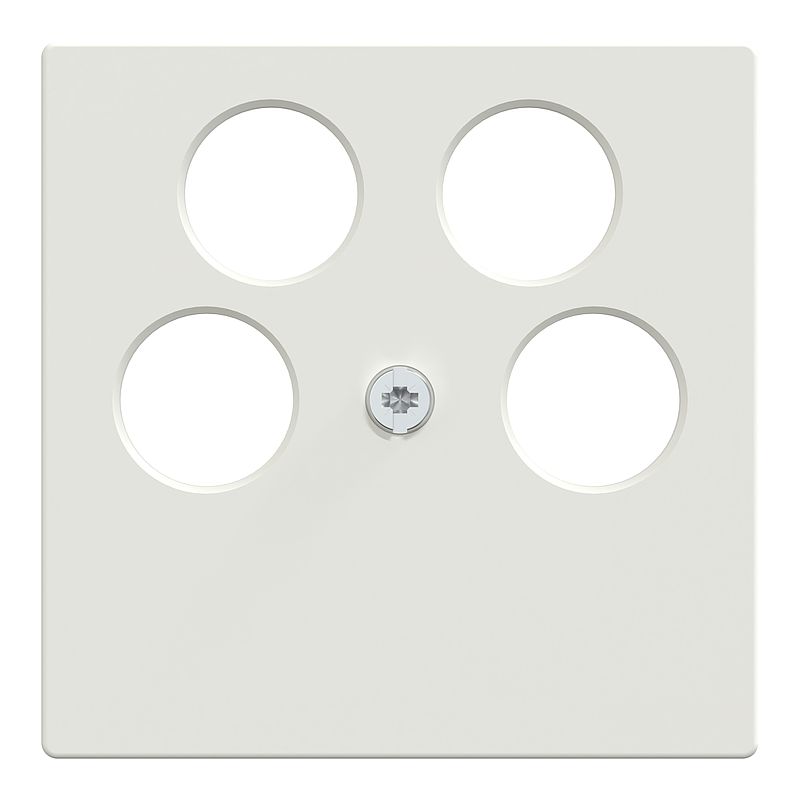

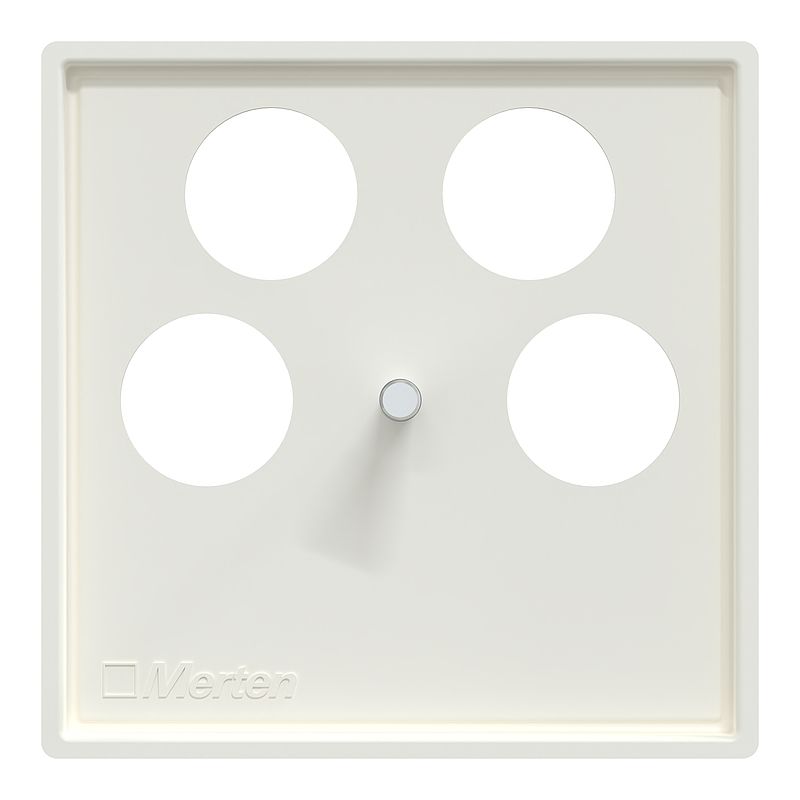

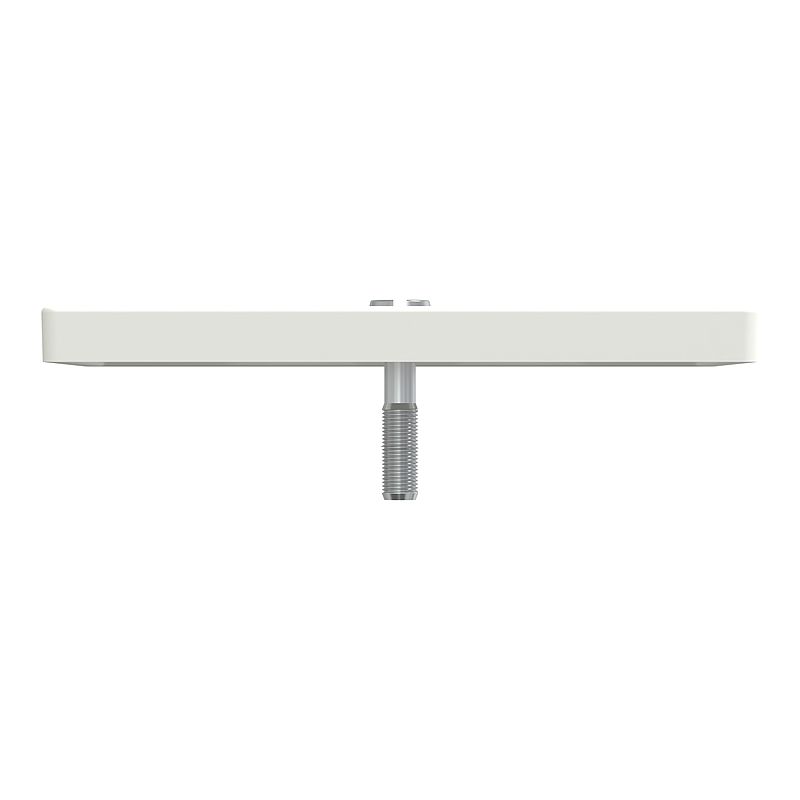

Zentralplatte für Ankaro 4fach-Antennensteckdosen, polarweiß glänzend, System M

296519

Hauptdokumente

Produktdatenblatt Download
Declaration of Conformity (Sustainability) Download
Catalog Download
Circularity Profile Download
Environmental Disclosure Download

Dieses Produkt ist kompatibel mit

Abdeckrahmen (25)

Spezifikationen

Hauptmerkmale
Baureihe Merten
Produkt- oder Komponententyp Abdeckplatte
Produktbestimmung TV/SAT-Steckdose
Farbton Polarweiß (RAL 9010)
Produktname System M Inserts
Zusatzmerkmale
Befestigungsmodus Durch Schrauben
Anzahl der Steckdosen 4
Material Thermoplastisch
Oberflächenbeschaffenheit Glänzend
Breite 71 mm
Höhe 71 mm
Verpackungseinheiten
VPE 1 Art PCE
Anzahl der Geräte pro Packung 1
Verpackungsgewicht (Lbs) 8,000 g
VPE 1 Höhe 2,000 cm
VPE 1 Breite 6,100 cm
VPE 1 Länge 6,100 cm
VPE 2 Art BB1
VPE 2 Menge 10
VPE 2 Gewicht 114,000 g
VPE 2 Höhe 7,500 cm
VPE 2 Breite 7,900 cm
VPE 2 Länge 12,700 cm
VPE 3 Art CAR
VPE 3 Menge 240
VPE 3 Gewicht 3,146 kg
VPE 3 Höhe 19,800 cm
VPE 3 Breite 30,800 cm
VPE 3 Länge 40,600 cm
Vertragliche Gewährleistung
Gewährleistung 18 Monate

Nachhaltigkeit

Nachhaltigkeit
Frei von REACh-SVHC Ja
EU-RoHS-Richtlinie Konform
EU-RoHS-Deklaration
Frei von giftigen Schwermetallen Ja
Quecksilberfrei Ja
SCIP-Nummer 002e81e9-07c3-446d-9b86-00aec7d6261a
Verpackung ohne Kunststoff Nein
Verpackung mit Recycling-Karton Ja
Rücknahme Ja
CO2-Bilanz (kg CO2 eq.) 1
Total lifecycle Carbon footprint 0.1 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3] 0.05297315981545573
CO2 Fußabdruck am Ende der Betriebsdauer ​ 0.1 kg CO2 eq.
Carbon footprint of the distribution phase [A4] 0.0015589341418081226
Durchschnittlicher Prozentsatz der ReponsibleSteel zertifizierten Metalle 0 kg CO2 eq.
Carbon footprint of the installation phase [A5] 0.0012473142594124173
CO2 Fußabdruck während der Einrichtung 0 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6] 0 kg CO2 eq.
Sustainable packaging Nein
Carbon footprint of the end-of-life phase [C1 to C4] 0.005223911407125126
Carbon footprint of the end-of-life phase [C1 to C4] 0 kg CO2 eq.
WEEE Label Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen.

Dokumente

Aktueller Filter
6 Dokumente
Merten Katalog
15/06/25 · Catalog
81,4 MB Download
296519 REACh-Erklärung
18/03/25 · Declaration of Conformity (Sustainability)
0,2 MB Download
296519 EU-RoHS-Erklärung
18/03/25 · Declaration of Conformity (Sustainability)
0,2 MB Download
Prise TV simple - Profil Environnemental Produit 15/03/25 · Environmental Disclosure 0,4 MB Download
TV Socket outlet - Product Environmental Profile 15/03/25 · Environmental Disclosure 0,5 MB Download
TV Socket outlet - Product End of Life Instructions 08/01/25 · Circularity Profile 0,3 MB Download
