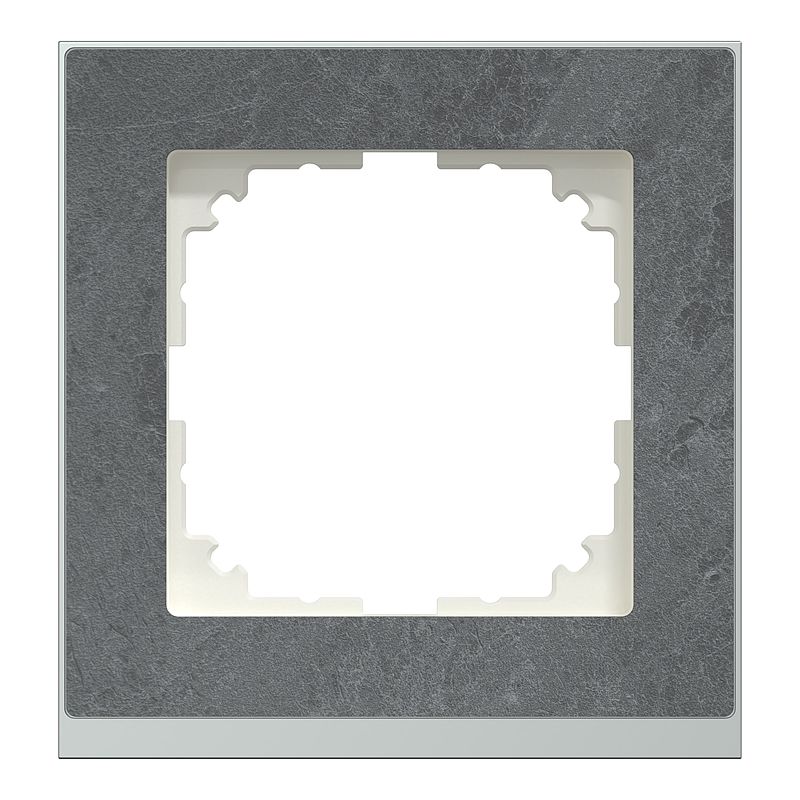

M-Pure Decor-Rahmen, 1fach, Schiefer/aluminium, M-Pure Decor

MEG4010-3669

Hauptdokumente

Produktdatenblatt Download
Promotional video Video anzeigen
Catalog Download
Certificate Download
Declaration of Conformity (Sustainability) Download
Environmental Disclosure Download

Dieses Produkt ist kompatibel mit

Wippen (22)
Steckdosen (75)
Komfort-Artikel (17)
Kommunikations-Artikel (23)

Spezifikationen

Hauptmerkmale
Baureihe Merten
Ästhetischer Name M-Pure Decor
Produkt- oder Komponententyp Abdeckrahmen
Zusatzmerkmale
Anzahl der Reihen 1fach
Farbton Schiefer
Oberflächenbeschaffenheit Matt
Oberflächenbehandlung Laminat
Material Thermoplastisch
Schutzart (IP) IP20
Höhe 82,7 mm
Breite 86,8 mm
Tiefe 11,5 mm
Farbton Schiefer
Verpackungseinheiten
VPE 1 Art PCE
Anzahl der Geräte pro Packung 1
Verpackungsgewicht (Lbs) 30,000 g
VPE 1 Höhe 1,200 cm
VPE 1 Breite 8,900 cm
VPE 1 Länge 10,700 cm
VPE 2 Art BB1
VPE 2 Menge 2
VPE 2 Gewicht 72,000 g
VPE 2 Höhe 2,700 cm
VPE 2 Breite 9,100 cm
VPE 2 Länge 9,400 cm
VPE 3 Art S02
VPE 3 Menge 120
VPE 3 Gewicht 4,584 kg
VPE 3 Höhe 15,000 cm
VPE 3 Breite 30,000 cm
VPE 3 Länge 40,000 cm
Vertragliche Gewährleistung
Garantie (in Monaten) 18

Nachhaltigkeit

Nachhaltigkeit
Frei von giftigen Schwermetallen Ja
Quecksilberfrei Ja
Verpackung ohne Kunststoff Ja
Verpackung mit Recycling-Karton Nein
Frei von REACh-SVHC Ja
Rücknahme Ja
CO2-Bilanz (kg CO2 eq.) 1
Circular Econmomy-Eignung Keine besonderen Recycling-Verfahren erforderlich
Total lifecycle Carbon footprint 0.2 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3] 0.13480799363069518
CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] 0.1 kg CO2 eq.
Carbon footprint of the distribution phase [A4] 0.015974087125554454
CO₂-Fußabdruck der Distributionsphase [A4] 0 kg CO2 eq.
Carbon footprint of the installation phase [A5] 0.004697998912702288
CO₂-Fußabdruck der Installationsphase [A5] 0 kg CO2 eq.
CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] 0 kg CO2 eq.
Sustainable packaging Nein
Carbon footprint of the end-of-life phase [C1 to C4] 0.07217536361719791
CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] 0.1 kg CO2 eq.
Recyclingfähigkeitspotential in % 50
EU-RoHS-Richtlinie https://download.se.com/files?p_Doc_Ref=MEG4010-3669_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29
REACh-Verordnung https://download.se.com/files?p_Doc_Ref=MEG4010-3669_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29
