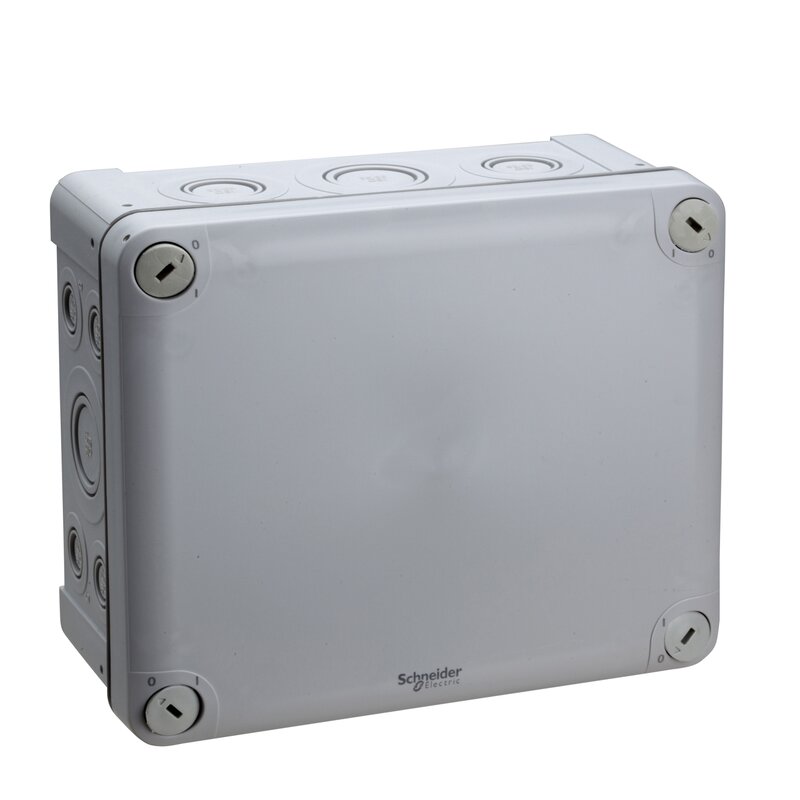

Mureva BOX, Abzweigdose, Drückplatte 8xM12/16+4xM20/25+2xM25/32, 175x150x80mm
ENN05090
Farbton: Grau (RAL 7035)
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Instruction sheet
|
Download |
|
Environmental Disclosure
|
Download |
|
Declaration of conformity
|
Download |
|
Catalog
|
Download |
Dieses Produkt ist kompatibel mit
Zubehörteile: Kompatible Produkte
Zubehörteile (19)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Produktpalette | Mureva BOX |
| Produkttyp | Abzweigdose |
| Anzahl pro Verpackung | 1 Stück |
| Hauptfarbton | Grau | Zusatzmerkmale |
| Montage | Wandgehäuse |
| Kabeleinführung | Auswerfer |
| Befestigung | Schraubbefestigung:Abdeckung |
| Innenmaße | 175 x 150 x 80 mm |
| Anzahl der Kabeleinführungen | 8 x M12/16 4 x M20/25 2 x M25/32 |
| Material | PP (Polypropylen): body and cover |
| elektrische Isolationsklasse | Klasse II entspricht IEC 536 |
| Höhe | 90 mm |
| Breite | 195 mm |
| Tiefe | 165 mm |
| Produktgewicht | 0,38 kg |
| Farbton | Grau (RAL 7035) | Montage |
| Betriebstemperatur | -25…40 °C |
| IK-Klasse | IP55 entspricht IEC 60529 |
| IK-Klasse | IK07 entspricht EN 50102 |
| Glühdrahttemperatur | 750 °C |
| Normen | EN 60670 CE |
Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 401,000 g |
| VPE 1 Höhe | 9,000 cm |
| VPE 1 Breite | 16,500 cm |
| VPE 1 Länge | 19,000 cm |
| VPE 2 Art | CAR |
| VPE 2 Menge | 28 |
| VPE 2 Gewicht | 12,440 kg |
| VPE 2 Höhe | 40,000 cm |
| VPE 2 Breite | 40,000 cm |
| VPE 2 Länge | 60,000 cm |
| VPE 3 Art | P12 |
| VPE 3 Menge | 336 |
| VPE 3 Gewicht | 162,000 kg |
| VPE 3 Höhe | 134,500 cm |
| VPE 3 Breite | 80,000 cm |
| VPE 3 Länge | 120,000 cm | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 18 |
Nachhaltigkeit
Nachhaltigkeit
| Frei von REACh-SVHC | Ja |
| Frei von giftigen Schwermetallen | Ja |
Quecksilberfrei
|
Ja |
| Circular Econmomy-Eignung | Keine besonderen Recycling-Verfahren erforderlich |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Nein |
| CO2-Bilanz (kg CO2 eq.) | 3 |
| Total lifecycle Carbon footprint | 3 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 2.480110417064688 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 2 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.04709998001596337 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 0 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.03253282700215904 |
| CO₂-Fußabdruck der Installationsphase [A5] | 0 kg CO2 eq. |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 0 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.3291377985287239 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 0.3 kg CO2 eq. |
| EU-RoHS-Richtlinie | https://download.schneider-electric.com/files?p_Doc_Ref=ENN05090_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.schneider-electric.com/files?p_Doc_Ref=ENN05090_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
