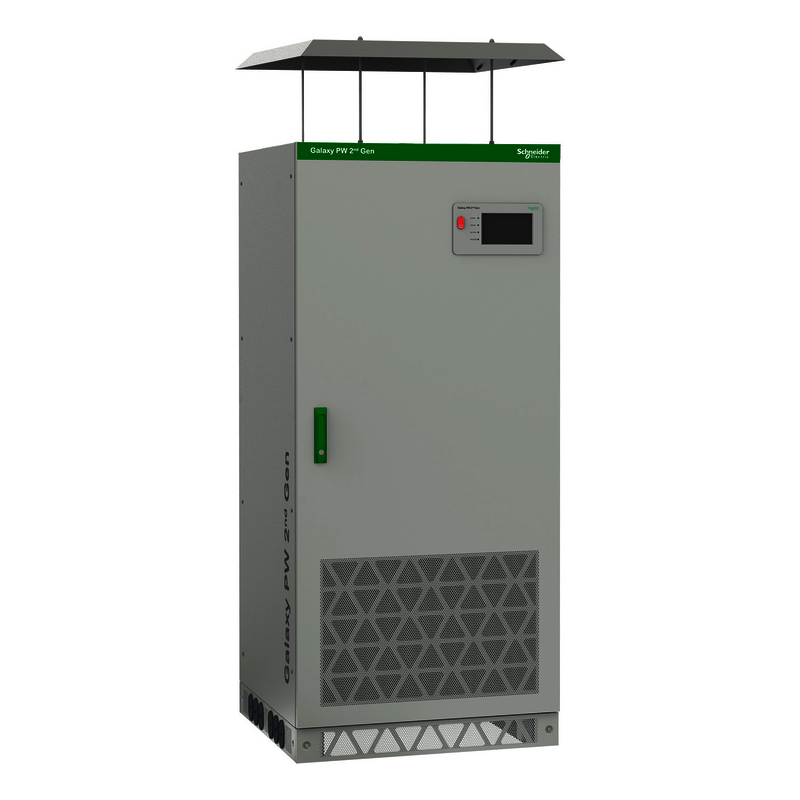

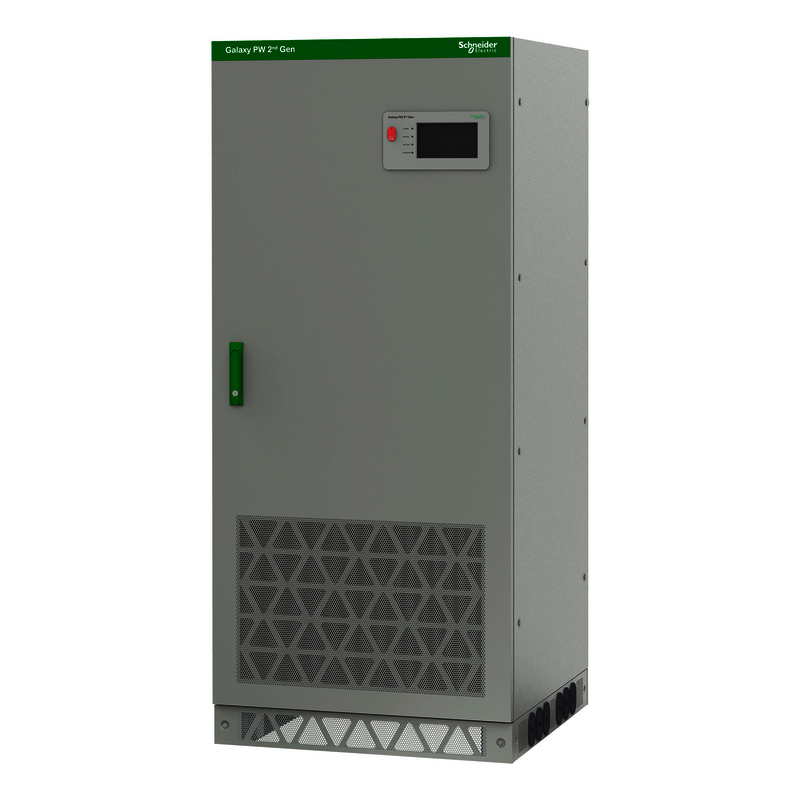

Galaxy PW 2. Generation 20kVA 3:1 USV 220VAC 6 Puls 220VDC mit Eingangstransformator, Startup 5x8
EPWUPS20KU6PTS
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
Technical Drawing
|
Download |
|
Specification guide
|
Download |
|
Brochure
|
Download |
|
Circularity Profile
|
Download |
|
BIM Model
|
Download |
|
Environmental Disclosure
|
Download |
|
User guide
|
Download |
|
Certificate of Origin
|
Download |
Dieses Produkt ist kompatibel mit
Communication Options: Kompatible Produkte
Communication Options (1)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Transformer-based 20 kVA 3-phase input, single-phase output UPS with 6-pulse SCR technology and a 220 VDC internal DC bus. Ideal for industrial applications, this UPS includes 5x8 start-up service. | Hauptmerkmale |
| Main input voltage | 380 V AC 3 Phasen 400 V AC 3 Phasen 415 V AC 3 Phasen |
| Other input voltage | 380 V 415 V 400 V |
| Maximum input current | 48 A |
| Max short time withstand current | 10 kA |
| Efficiency at full load | 400 V |
| Input frequency | 45...55 Hz |
| Output voltage | 380 V AC 3 Phasen 400 V AC 3 Phasen 415 V AC 3 Phasen |
| Other output voltage | 220 V 230 V 240 V |
| Rated power in W | 16 kW |
| Rated power in VA | 20 kVA |
| Harmonic distortion | Weniger als 2 % |
| Maximum configurable power in VA | 20 kVA |
| Maximum configurable power in W | 16 kW |
| Output harmonic distortion | < 2% linear load and < 4% non-linear load |
| Output overload operation | 10 Minuten bei 125 % und 60 Sekunden bei 150 % |
| Waveform type | Sinuswelle |
| Output frequency | 50 Hz +/- 1 % | Zusatzmerkmale |
| Max current discharge | 115 A |
| Battery type | Lead-acid external sold separately |
| Control panel | LCD-Benutzeroberfläche mit Touchscreen |
| UPS connectivity | Optional network management card 3 |
| Color | Hellgrau |
| Height | 180 cm |
| Width | 80 cm |
| Depth | 80 cm |
| Product weight | 491 kg |
| Redundant | No |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) | Montage |
| Product certification | CE |
| Standard | IEC 62040-1-1 IEC 62040-2 IEC 62040-3 IEC 62040-4 ISTA 2B |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -25…55 °C |
| Storage altitude | 0…10000 m |
| IP protection | IP31 |
| Relative humidity | 0…95 % nicht kondensierend |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Acoustic level | 70 dB/1m |
| Heat dissipation | 2100 Btu/h |
| Operating altitude | 0 - 2.000 m | Batterien und Überbrückungszeit |
| Battery voltage | 192...240 V | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 2085 mm |
| VPE 1 Breite | 928 mm |
| VPE 1 Länge | 928 mm |
| Verpackungsgewicht (Lbs) | 474 kg | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 12 |
Nachhaltigkeit
Nachhaltigkeit
| Recyclingfähigkeitspotential in % | 93 |
| Total lifecycle Carbon footprint | 146 ton CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 7550.435349776133 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 7 550 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 158.3368397713584 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 158 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 78.13775921558496 |
| CO₂-Fußabdruck der Installationsphase [A5] | 78 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 137092.08712124 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 137 ton CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 758.2902167781564 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 758 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 145637 |
| Verpackung mit Recycling-Karton | Nein |
| Verpackung ohne Kunststoff | Nein |
| SCIP-Nummer | 06cb433d-2f38-469a-a05f-575f1433c88c |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=EPWUPS20KU6PTS_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=EPWUPS20KU6PTS_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Rücknahme | Ja |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
