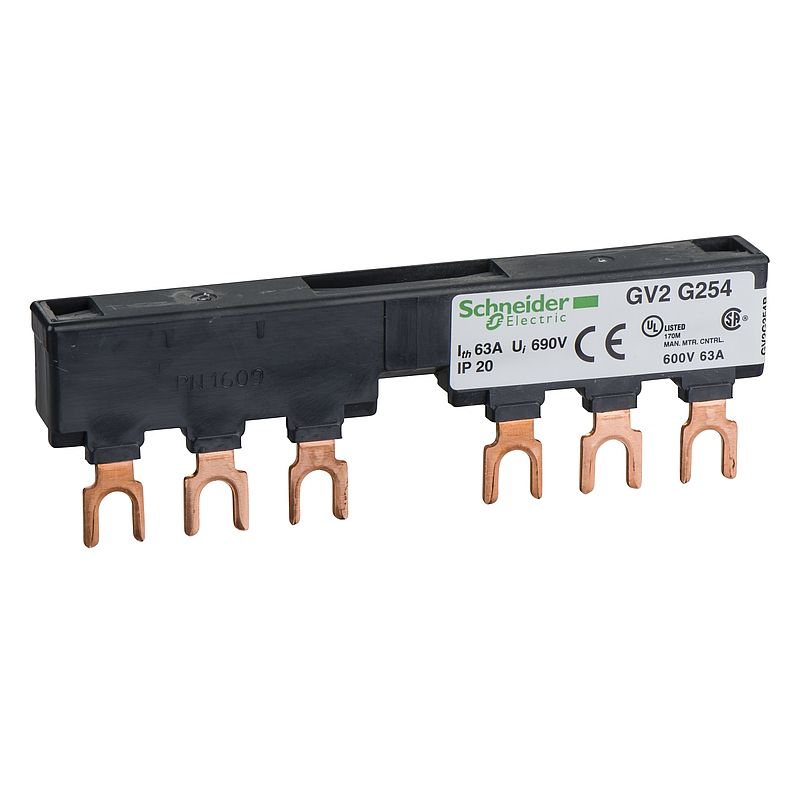

Drehstrom-Sammelschienensystem, 63A, 2Abgangsstellen, 54mm Abstand
GV2G254
Materialpreisgruppe
: A5
Hauptdokumente
 Produktdatenblatt |
Download |
|
Technical Drawing
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Instruction sheet
|
Download |
|
Data Bulletin
|
Download |
|
Promotional video
|
Video anzeigen |
|
CAD
|
Download |
|
Declaration of conformity
|
Download |
|
Catalog
|
Download |
|
Certificate
|
Download |
Dieses Produkt ist kompatibel mit
Hauptfunktionen: Kompatible Produkte
Hauptfunktionen (1)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | Linergy |
| Produktname | FT |
| Kurzbezeichnung des Geräts | GV2G |
| Produkt- oder Komponententyp | Kammschiene |
| Zubehör / Teilekategorie | Anschlusszubehör |
| Beschreibung der Pole | 3P |
| Kompatible Produktfamilie | TeSys GV2 TeSys K TeSys U TeSys Deca |
| Anzahl von Abgängen | 2 |
| [Ith] Konventioneller thermischer Strom in freier Luft | 63 A |
| Anschlussraster | 54 mm | Zusatzmerkmale |
| Nennisolationsspannung Ui | 690 V |
| Länge | 98 mm |
| Produktgewicht | 0,038 kg |
| Befestigungsmodus | Klemmen: | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 40,000 g |
| VPE 1 Höhe | 1,000 cm |
| VPE 1 Breite | 8,000 cm |
| VPE 1 Länge | 14,000 cm |
| VPE 2 Art | S01 |
| VPE 2 Menge | 80 |
| VPE 2 Gewicht | 3,360 kg |
| VPE 2 Höhe | 15,000 cm |
| VPE 2 Breite | 15,000 cm |
| VPE 2 Länge | 40,000 cm |
| VPE 3 Art | P06 |
| VPE 3 Menge | 2560 |
| VPE 3 Gewicht | 118,100 kg |
| VPE 3 Höhe | 75,000 cm |
| VPE 3 Breite | 60,000 cm |
| VPE 3 Länge | 80,000 cm | Vertragliche Gewährleistung |
| Gewährleistung | 18 months |
Nachhaltigkeit
Nachhaltigkeit
| Frei von REACh-SVHC | Ja |
EU-RoHS-Richtlinie
|
Konform EU-RoHS-Deklaration |
| Frei von giftigen Schwermetallen | Ja |
|
Quecksilberfrei
|
Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Nein |
| Sustainable packaging | Nein |
| WEEE Label | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
