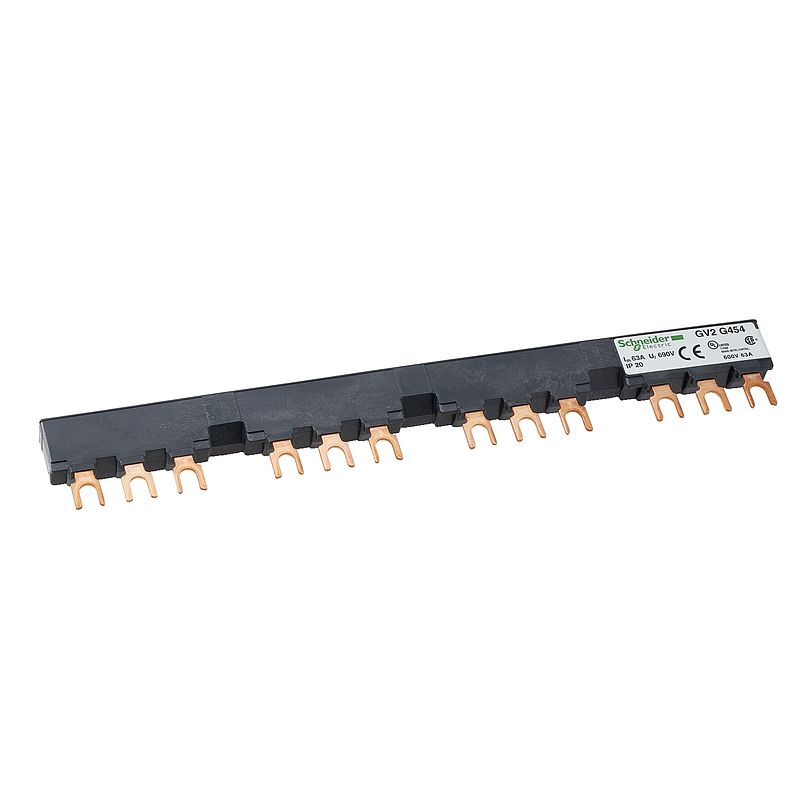

Drehstrom-Sammelschienensystem, 63A, 4Abgangsstellen, 54mm Abstand
GV2G454
Materialpreisgruppe
: A5
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
Technical Drawing
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
|
Instruction sheet
|
Download |
|
Data Bulletin
|
Download |
|
Katalog
|
Download |
|
Promotional video
|
Video anzeigen |
|
CAD
|
Download |
|
Certificate
|
Download |
Dieses Produkt ist kompatibel mit
Hauptfunktionen: Kompatible Produkte
Hauptfunktionen (1)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | Linergy |
| Produktname | FT |
| Kurzbezeichnung des Geräts | GV2G |
| Produkt- oder Komponententyp | Kammschiene |
| Zubehör / Teilekategorie | Anschlusszubehör |
| Beschreibung der Pole | 3P |
| Kompatible Produktfamilie | TeSys Deca TeSys GV2 TeSys K TeSys U |
| Anzahl von Abgängen | 4 |
| Konventioneller thermischer Strom in freier Luft (Ith) | 63 A |
| Anschlussraster | 54 mm | Zusatzmerkmale |
| Nennisolationsspannung Ui | 690 V |
| Produktgewicht | 0,085 kg |
| Befestigungsmodus | Klemmen: |
| Breite | 206 mm | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 88,000 g |
| VPE 1 Höhe | 1,900 cm |
| VPE 1 Breite | 3,700 cm |
| VPE 1 Länge | 21,600 cm |
| VPE 2 Art | S01 |
| VPE 2 Menge | 50 |
| VPE 2 Gewicht | 4,550 kg |
| VPE 2 Höhe | 15,000 cm |
| VPE 2 Breite | 15,000 cm |
| VPE 2 Länge | 40,000 cm |
| VPE 3 Art | P06 |
| VPE 3 Menge | 1600 |
| VPE 3 Gewicht | 156,500 kg |
| VPE 3 Höhe | 75,000 cm |
| VPE 3 Breite | 60,000 cm |
| VPE 3 Länge | 80,000 cm | Vertragliche Gewährleistung |
| Gewährleistung | 18 months |
Nachhaltigkeit
Nachhaltigkeit
| Frei von REACh-SVHC | Ja |
EU-RoHS-Richtlinie
|
Konform EU-RoHS-Deklaration |
| Frei von giftigen Schwermetallen | Ja |
|
Quecksilberfrei
|
Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Nein |
| Sustainable packaging | Nein |
| WEEE Label | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
27 Dokumente
| Hauptkatalog Trennen - Schalten - Schützen
15/09/25 · Katalog |
50,5 MB | Download |
| Katalogauszug · Kapitel A2 (aus ZXKTSS) 15/09/25 · Katalog | 5,9 MB | Download |
| Katalogauszug · Kapitel B6 (aus ZXKTSS) 15/09/25 · Katalog | 11,3 MB | Download |
| UKCA Declaration TeSys GV_GV2ME_GV2P with ATEX 10/04/25 · Declaration of conformity | 0,5 MB | Download |
| Linergy - Distribution and Connection Systems - English
08/04/25 · Catalog |
48,1 MB | Download |
| GV2G454 China-RoHS-Erklärung
28/03/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| GV2G454 REACh-Erklärung
16/03/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| GV2G454 EU-RoHS-Erklärung
16/03/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| DoC 15/03/25 · Declaration of conformity | 0,9 MB | Download |
| CSA Certificate_TeSys GV2ME&GV2RT&GV2P&GV2MC&GV2MP and GV2P Type E & GV2P combined with LC1D09-38 type F 15/03/25 · Certificate | 0,2 MB | Download |
| EU Declaration TeSys GV2ME&GV2RT&GV2P&GV2L&GV2LE&GV2LM 15/03/25 · Declaration of conformity | 0,6 MB | Download |
| EU Declaration TeSys GV2ME & GV2P with ATEX 15/03/25 · Declaration of conformity | 0,5 MB | Download |
| UKCA Declaration TeSys GV2ME&GV2RT&GV2P&GV2L&GV2LE&GV2LM 15/03/25 · Declaration of conformity | 0,4 MB | Download |
| TeSys D - GV2G454 4 TAP-OFFS BUSBAR GV2 63A 54MM PITCH - 3D CAD 15/03/25 · CAD | 0,4 MB | Download |
| Découvrez le catalogue Altivar 32 variateurs de vitesse 15/03/25 · Catalog | 7,6 MB | Download |
| TeSys Deca Motor Circuit Breakers video 15/03/25 · Promotional video | 38,6 MB | Video anzeigen |
| Discover catalog for Altivar 32 Variable Speed Drives 15/03/25 · Catalog | 4,2 MB | Download |
| TeSys - Catalog 2025 - Innovative and connected solutions for motor starters
15/03/25 · Catalog |
87,4 MB | Download |
| Motor Control Solutions for the North American Market Data Bulletin
15/03/25 · Data Bulletin |
78,9 MB | Download |
| GV2LE / GV2RT Circuit breakers - Instruction sheet 15/03/25 · Instruction sheet | 0,8 MB | Download |
| GV2 ME.. Motor circuit-breakers - IS on the box - Instruction Sheet 15/03/25 · Instruction sheet | 1,3 MB | Download |
| LAD-311 Motor starter components - TeSys Quickfit Power 15/03/25 · Instruction sheet | 9,4 MB | Download |
| TeSys Deca - auxiliary contact block (GV) 15/03/25 · Environmental Disclosure | 0,6 MB | Download |
| TeSys Deca - auxiliary contact block (GV) 15/03/25 · Circularity Profile | 0,6 MB | Download |
| 3P busbar 63A 3 4 or 5 tap-off Technical drawings 15/03/25 · Technical Drawing | 0,0 MB | Download |
| 3P busbar 63A 4 tap-off 54 mm pitch Technical drawings 15/03/25 · Technical Drawing | 0,0 MB | Download |
| 01/01/70 Certificate | 0,0 MB | Download |
