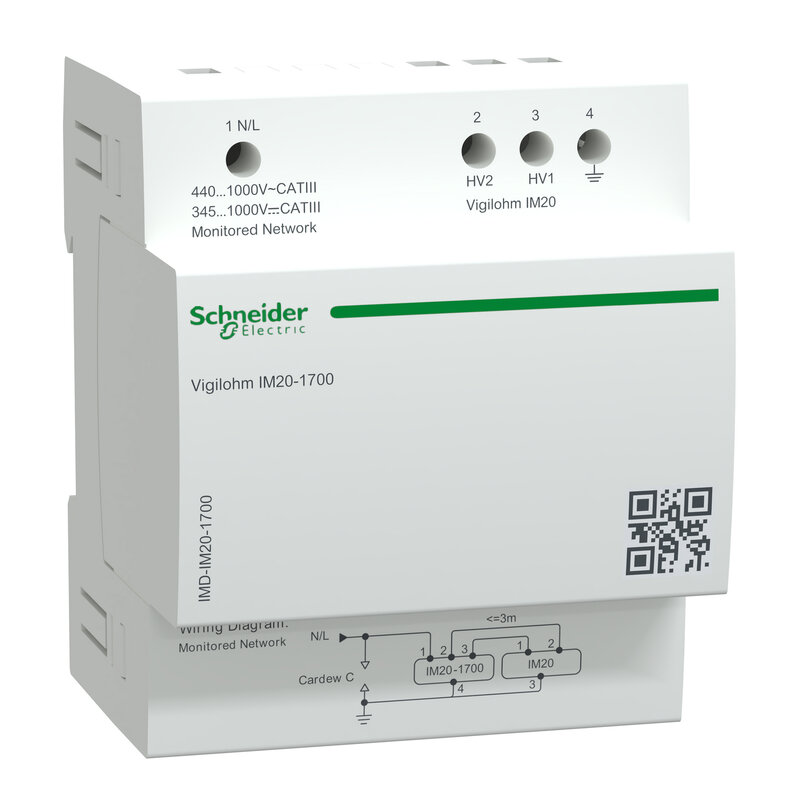

Vigilohm Spannungsadapter Hochvolt 1,7kV für IM20
IMD-IM20-1700
Materialpreisgruppe
: DD
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
Other technical guide
|
Download |
|
Instruction sheet
|
Download |
|
User guide
|
Download |
|
Specification sheet
|
Download |
|
Catalog
|
Download |
|
Certificate
|
Download |
|
CAD
|
Download |
Dieses Produkt ist kompatibel mit
Hauptfunktionen: Kompatible Produkte
Hauptfunktionen (1)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | Vigilohm |
| Baureihe | Vigilohm |
| Produkt- oder Komponententyp | Spannungsadapter |
| Kurzbezeichnung des Geräts | IM20-1700 |
| Geräteanwendung | Mittleres Netzwerk |
| Kompatible Produktfamilie | Vigilohm Vigilohm IM IM20 Isolationsüberwachungsgerät | Zusatzmerkmale |
| Netzspannung | 600…1700 V - AC (Nullleiter, verteilt) 440…1000 V - AC (Nullleiter, nicht verteilt) 345…1000 V - DC |
| Durchschnittliche Impedanz | 400 kOhm |
| maximale Entfernung zu | IM20: 3 m |
| Produktgewicht | 0,2 kg |
| Kompatibilitätscode | IM20 HV-IM20 |
Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 8 cm |
| VPE 1 Breite | 8 cm |
| VPE 1 Länge | 9,5 cm |
| Verpackungsgewicht (Lbs) | 150 g |
| VPE 2 Art | S03 |
| VPE 2 Menge | 36 |
| VPE 2 Höhe | 30 cm |
| VPE 2 Breite | 30 cm |
| VPE 2 Länge | 40 cm |
| VPE 2 Gewicht | 6,018 kg | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 18 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| Sustainable packaging | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Verpackung ohne Kunststoff | Nein |
| SCIP-Nummer | C60f937c-f0cd-469b-9614-ee23abf8d5dc |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=IMD-IM20-1700_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=IMD-IM20-1700_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Rücknahme | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
