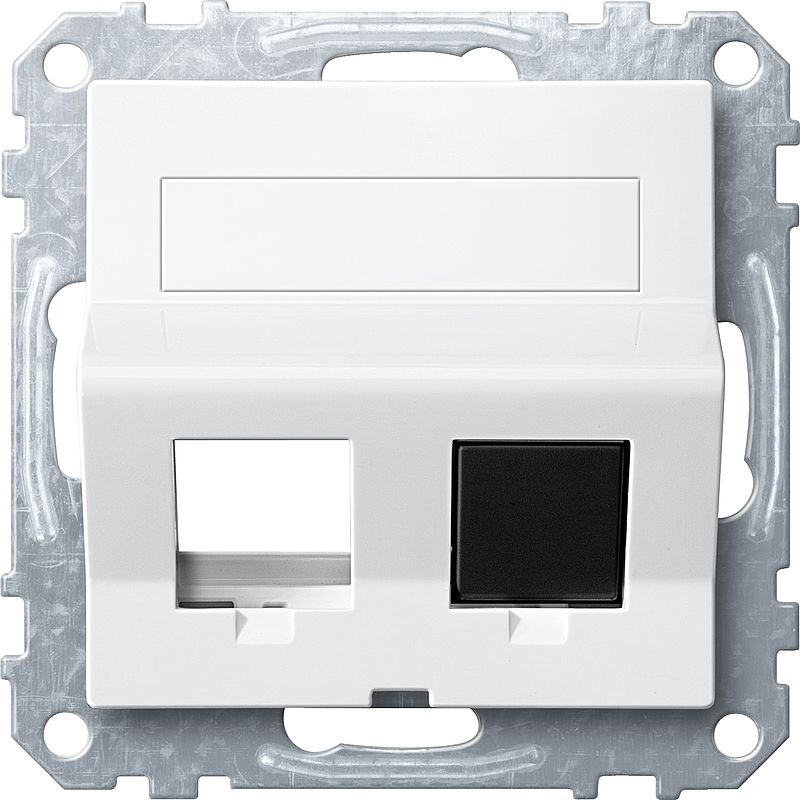

Schrägauslass 2fach mit Tragring und Schriftfeld für Modular Jack, polarweiß glänzend, System M

MEG4568-0319

Hauptdokumente

Produktdatenblatt Download
Declaration of Conformity (Sustainability) Download
Catalog Download
Environmental Disclosure Download

Dieses Produkt ist kompatibel mit

Abdeckrahmen (25)

Spezifikationen

Hauptmerkmale
Baureihe Merten
Produkt- oder Komponententyp Zentralplatte
Gerätedarstellung Abdeckplatte mit Befestigungsrahmen
Farbton Polarweiß (RAL 9010)
Zusatzmerkmale
Gehäusevariante Einbau
Anschlusstyp RJ45
Befestigungsmodus Durch Schrauben
Anzahl der Steckdosen 2
Abdeckungstyp Etikettenhalter
Installationsrichtung Schräg
Oberflächenbeschaffenheit Glänzend
Material Thermoplastisch
Höhe 71 mm
Breite 71 mm
Verpackungseinheiten
VPE 1 Art PCE
Anzahl der Geräte pro Packung 1
Verpackungsgewicht (Lbs) 48,000 g
VPE 1 Höhe 3,900 cm
VPE 1 Breite 8,900 cm
VPE 1 Länge 9,800 cm
VPE 2 Art BB1
VPE 2 Menge 10
VPE 2 Gewicht 528,000 g
VPE 2 Höhe 7,800 cm
VPE 2 Breite 16,400 cm
VPE 2 Länge 27,100 cm
VPE 3 Art CAR
VPE 3 Menge 40
VPE 3 Gewicht 2,494 kg
VPE 3 Höhe 19,800 cm
VPE 3 Breite 30,800 cm
VPE 3 Länge 40,700 cm
Vertragliche Gewährleistung
Gewährleistung 18 Monate

Nachhaltigkeit

Nachhaltigkeit
Frei von REACh-SVHC Ja
EU-RoHS-Richtlinie Übererfüllung der Konformität (außerhalb EU RoHS-Scope)
EU-RoHS-Deklaration
Frei von giftigen Schwermetallen Ja
Quecksilberfrei Ja
Circular Econmomy-Eignung Keine besonderen Recycling-Verfahren erforderlich
Verpackung ohne Kunststoff Nein
Verpackung mit Recycling-Karton Nein
Rücknahme Nein
CO2-Bilanz (kg CO2 eq.) 1
Total lifecycle Carbon footprint 0.7 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3] 0.464908504
CO2 Fußabdruck am Ende der Betriebsdauer ​ 0.5 kg CO2 eq.
Carbon footprint of the distribution phase [A4] 0.057811893
Durchschnittlicher Prozentsatz der ReponsibleSteel zertifizierten Metalle 0.1 kg CO2 eq.
Carbon footprint of the installation phase [A5] 0.022878799
CO2 Fußabdruck während der Einrichtung 0 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6] 0 kg CO2 eq.
Sustainable packaging Nein
Carbon footprint of the end-of-life phase [C1 to C4] 0.127264843
Carbon footprint of the end-of-life phase [C1 to C4] 0.1 kg CO2 eq.
