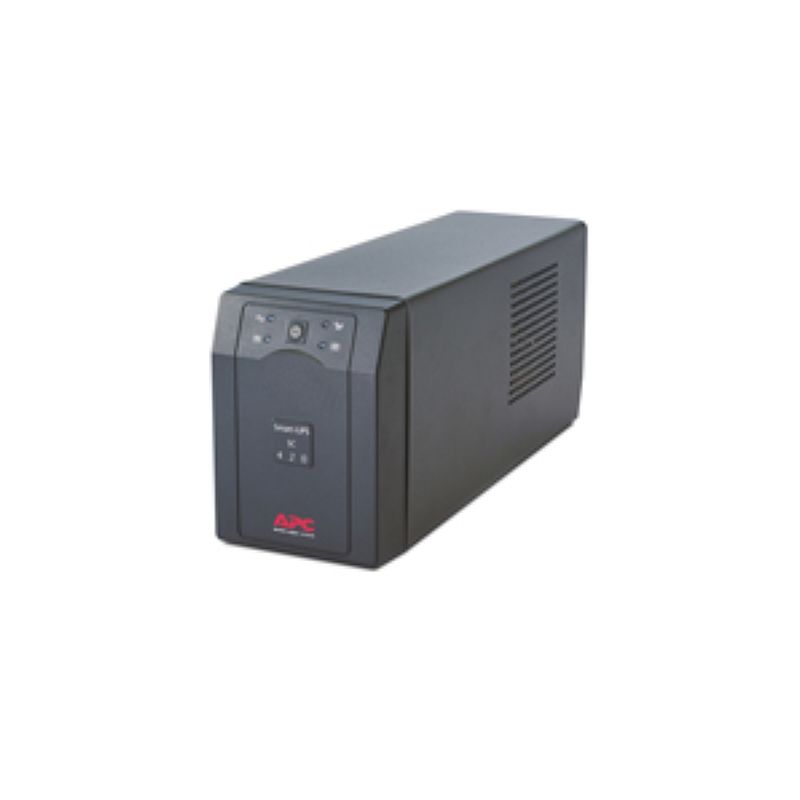

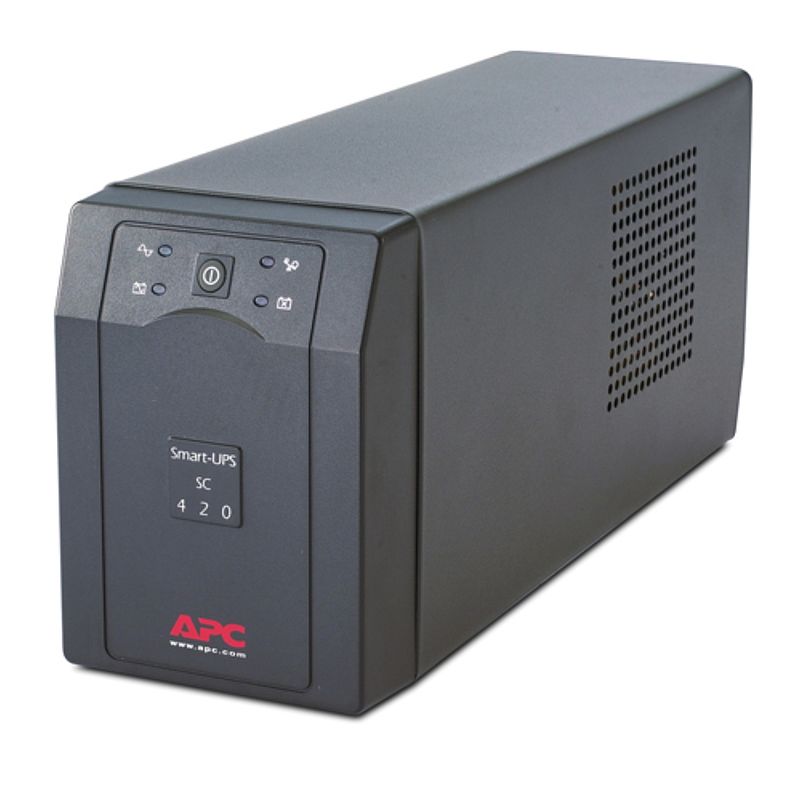

APC Smart-UPS SC 420 VA, 230 V, Batterie 12V, 7.0Ah
SC420I
Lieferbar solange Restbestän…
Eingestellt am: 30. January 2024
EAN Code: 0731304222613
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Circularity Profile
|
Download |
|
Firmware
|
Download |
|
Environmental Disclosure
|
Download |
|
Instruction sheet
|
Download |
Dieses Produkt ist kompatibel mit
Smart Slots: Kompatible Produkte
Smart Slots (1)
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Schnittstellen-Anschlüsse: Kompatible Produkte
Schnittstellen-Anschlüsse (7)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Nicht zur Verwendung durch Verbraucher bestimmt. Intelligenter und effizienter Stromversorgungsschutz im Netzwerk mit skalierbarer Laufzeit. Ideal für Server, POS-Systeme, medizinische und Netzwerkgeräte. | Hauptmerkmale |
| Main input voltage | 230 V AC |
| Output voltage | 230 V AC 1 Phase |
| Rated power in W | 260 W |
| Rated power in VA | 420 VA |

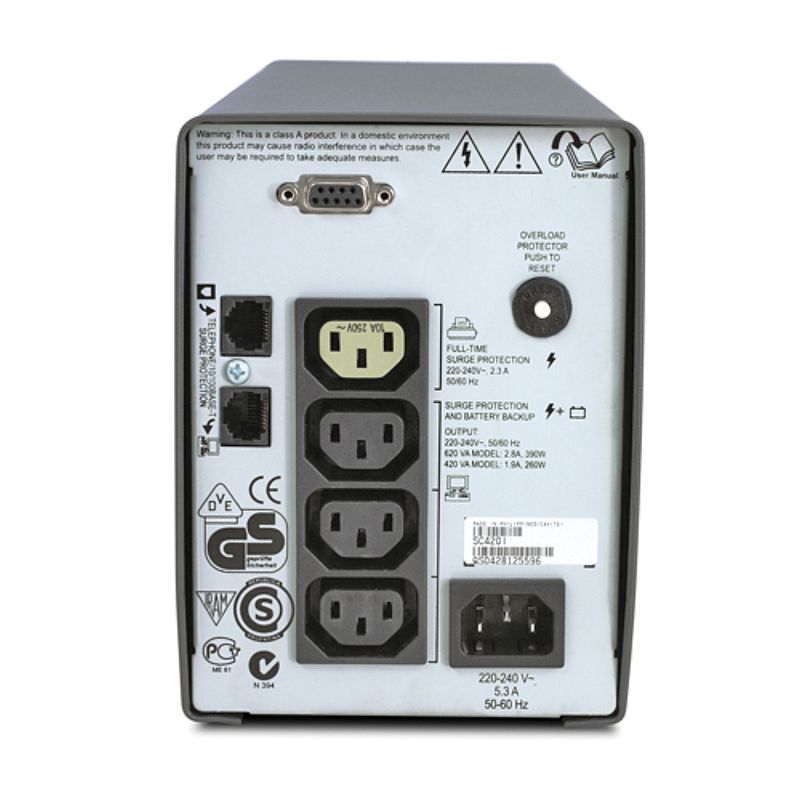

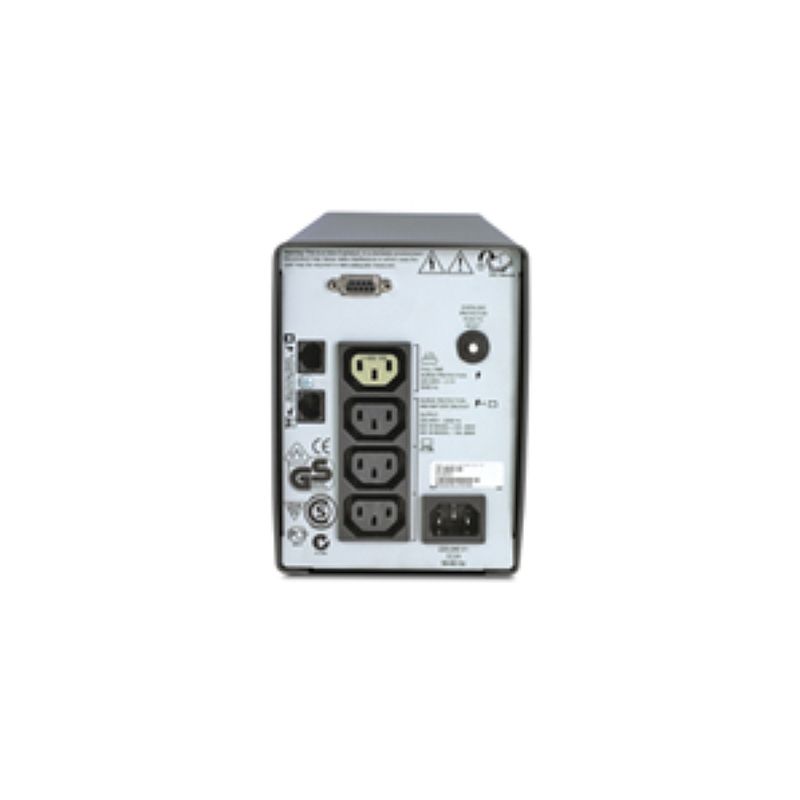

| Input connection | IEC 320 C14 |
| Output connection | 3 IEC 320 C13 1 IEC 320 C13 Spitze 2 IEC-Steckbrücken |
| Efficiency at full load | 195 - 265 V |
| Input frequency | 50/60 Hz +/-3 Hz automatische Erfassung |
| Harmonic distortion | Weniger als 5 % bei Volllast |
| Maximum configurable power in VA | 420 VA |
| Maximum configurable power in W | 260 W |
| Transfer time | 6 ms typisch, 10 ms max. |
| UPS topology | Line Interactive |
| Waveform type | Stufenweise Annäherung an eine Sinuswelle |
| Output frequency | 47 - 53 Hz für 50 Hz Nominal Netzsynchronisation 57 - 63 Hz für 60 Hz Nominal Netzsynchronisation |
Zusatzmerkmale |
| Number of rack unit | 0U |
| Provided equipment | Benutzerhandbuch Smart UPS Signalisierungskabel RS-232 CD mit Software |
| Additional specification | Entry level |
| Redundant | No |
| Color | Grau |
| Height | 168 mm |
| Width | 119 mm |
| Depth | 368 mm |
| Product weight | 9,09 kg |
| Mounting location | Frontseite |
| Mounting preference | No preference |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | No |
| Battery capacity | 7,0 AH |
| Data line protection | RJ45, Schutz für Modem/Fax/DSL/10-100 Base-T |
| Surge energy rating | 320 J |
| Noise filtering | Mehrpolige Geräuschfilterung, 0,7 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: Gemäß UL1449 |
| Control panel | LED-Statusanzeige mit On-Line : auf Batteriebetrieb : Batterie und Überlastungsanzeigen ersetzen |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : Überlast-Dauertonalarm |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Smart-UPS |
| Mounting mode | Tower |
| UPS connectivity | Serial port USB port |
| Battery type | Lead-acid internal included | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Battery voltage | 12 V |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 3…5 Jahre |
| Battery charging power | 28 W bewertet | Montage |
| Product certification | CE EAC GOST NOM VDE VCCI |
| Acoustic level | 45 dBA |
| Heat dissipation | 50 Btu/h |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 10,140 kg |
| VPE 1 Höhe | 26,000 cm |
| VPE 1 Breite | 31,500 cm |
| VPE 1 Länge | 50,500 cm |
| VPE 2 Art | P12 |
| VPE 2 Menge | 6 |
| VPE 2 Höhe | 45,000 cm |
| VPE 2 Breite | 80,000 cm |
| VPE 2 Länge | 120,000 cm |
| VPE 2 Gewicht | 72,840 kg |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
|
Quecksilberfrei
|
Ja |
| SCIP-Nummer | B2b22a56-41f2-497e-9ea6-cf093b3b8bd3 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Nein |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SC420I_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SC420I_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
