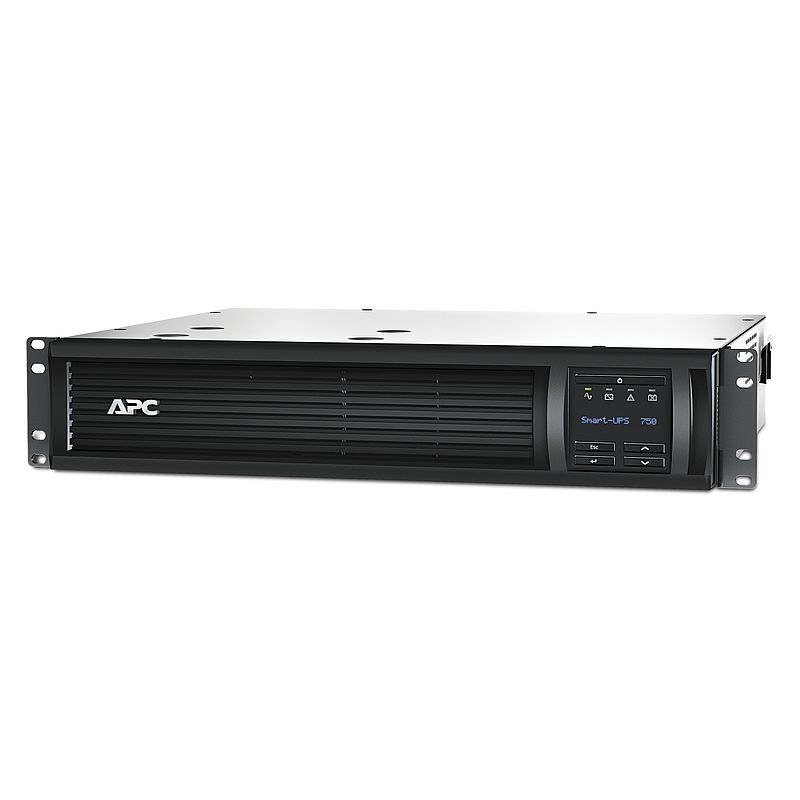

APC Smart-UPS, Line Interactive, 750VA, Rackmontage 2HE, 230V, 4 IEC C13-Stecker, Netzwerkkarte, AVR, LCD
SMT750RMI2UNC
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
Brochure
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Certificate (Sustainability)
|
Download |
|
Catalog
|
Download |
|
Firmware
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
|
Quick start guide
|
Download |
|
Instruction sheet
|
Download |
Dieses Produkt ist kompatibel mit
Schnittstellen-Anschlüsse: Kompatible Produkte
Schnittstellen-Anschlüsse (1)
Subscriptions: Kompatible Produkte
Subscriptions (6)
Smart Slots: Kompatible Produkte
Smart Slots (5)
Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (1)
Sensoren: Kompatible Produkte
Sensoren (2)
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Nicht zur Verwendung durch Verbraucher bestimmt. Intelligenter und effizienter Stromversorgungsschutz im Netzwerk mit skalierbarer Laufzeit. Ideal für Server, POS-Systeme, medizinische und Netzwerkgeräte. | Hauptmerkmale |
| Main input voltage | 230 V AC 1 Phase |
| Other input voltage | 220 V 240 V |
| Output voltage | 230 V AC 1 Phase |
| Other output voltage | 220 V 240 V |
| Rated power in W | 500 W |
| Rated power in VA | 750 VA |
| Input connection | IEC 320 C14 |
| Output connection | 4 IEC 320 C13 2 IEC-Steckbrücken |
| Efficiency at full load | 151 - 302 V einstellbar 160 - 286 V |
| Input frequency | 50/60 Hz +/-3 Hz automatische Erfassung |
| Harmonic distortion | Weniger als 5 % |
| Maximum configurable power in VA | 750 VA |
| Maximum configurable power in W | 500 W |
| Transfer time | 2 ms typisch |
| UPS topology | Line Interactive |
| Waveform type | Sinuswelle |
| Output frequency | 50/60 Hz +/-3 Hz Netzsynchronisation | Zusatzmerkmale |
| Number of rack unit | 2U |
| Provided equipment | CD mit Software Dokumentations-CD Installationsanleitung Rack-Montage-Tragschienen Smart UPS Signalisierungskabel RS-232 Temperaturfühler USB-Kabel |
| Redundant | No |
| Color | Schwarz |
| Height | 89 mm |
| Width | 432 mm |
| Depth | 406 mm |
| Product weight | 17,24 kg |
| Mounting location | Frontseite |
| Mounting preference | Niedriger |
| Mounting mode | Aufbau |
| Two post mountable | 1 |
| USB compatible | Yes |
| Control panel | Multifunktions-LCD-Status- und Steuerkonsole |
| Emergency power off | Optional |
| Preinstalled device | Network management card 3 with environmental monitoring |
| Surge energy rating | 459 J |
| Control panel | LED-Statusanzeige mit On-Line : auf Batteriebetrieb : Batterie und Überlastungsanzeigen ersetzen |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : konfigurierbare Verzögerungen |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Smart-UPS |
| Mounting mode | Aufbau with included kit |
| UPS connectivity | Serial port USB port Pre-installed network management card 3 |
| Battery type | Lead-acid internal included | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 3…5 Jahre |
| Battery charging power | 56 W bewertet | Montage |
| Product certification | CE EAC RCM VDE UK PSTI |
| Acoustic level | 42 dBA |
| Heat dissipation | 46 Btu/h |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 21,18 kg |
| VPE 1 Höhe | 24,1 cm |
| VPE 1 Breite | 58,4 cm |
| VPE 1 Länge | 54,6 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 Batterie|36 USV |
Nachhaltigkeit
Nachhaltigkeit
| Bleifrei | Ja |
Quecksilberfrei
|
Ja |
| SCIP-Nummer | B2b22a56-41f2-497e-9ea6-cf093b3b8bd3 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| CO2-Bilanz (kg CO2 eq.) | 451 |
| Total lifecycle Carbon footprint | 451 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 304.2198681994 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 304 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 7.2675809321 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 7 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 2.1127389614 |
| CO₂-Fußabdruck der Installationsphase [A5] | 2 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 126.0792821913 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 126 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 11.0817621654 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 11 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SMT750RMI2UNC_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SMT750RMI2UNC_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 51 |
