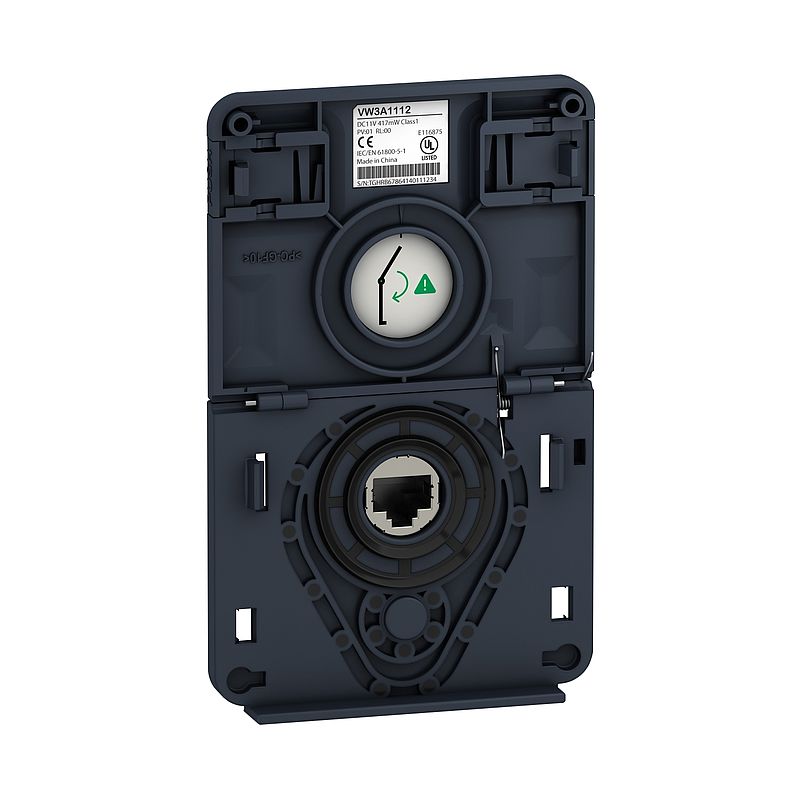

Türmontagesatz, für grafisches Remote-Terminal, Frequenzumrichter, IP65
VW3A1112
Materialpreisgruppe
: CI
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Environmental Disclosure
|
Download |
|
CAE
|
Download |
|
Instruction sheet
|
Download |
|
CAD
|
Download |
|
Catalog
|
Download |
|
Certificate
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | Altivar |
| Zubehör / Teilekategorie | Montage- und Befestigungszubehör |
| Zubehör / Teiletyp | Montage-Bausatz |
| Zubehör / Zielkategorie | Antrieb mit variabler Geschwindigkeit |
| Kompatible Produktfamilie | Altivar Prozess ATV900 Altivar Prozess ATV600 Altivar Easy 610 Altivar Maschine ATV340 Altivar Maschine ATV320 |
| Schutzart (IP) | IP65 | Zusatzmerkmale |
| Bausatz-Zusammensetzung | Befestigungsmutter Montageplatte Abzweiger, Rotationsschutz Anzugsmaulschlüssel |
Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 128,000 g |
| VPE 1 Höhe | 6,800 cm |
| VPE 1 Breite | 9,100 cm |
| VPE 1 Länge | 12,800 cm |
| VPE 2 Art | S03 |
| VPE 2 Menge | 32 |
| VPE 2 Gewicht | 4,960 kg |
| VPE 2 Höhe | 30,000 cm |
| VPE 2 Breite | 30,000 cm |
| VPE 2 Länge | 40,000 cm |
| VPE 3 Art | P06 |
| VPE 3 Menge | 256 |
| VPE 3 Gewicht | 47,680 kg |
| VPE 3 Höhe | 75,000 cm |
| VPE 3 Breite | 60,000 cm |
| VPE 3 Länge | 80,000 cm | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 18 |
Nachhaltigkeit
Nachhaltigkeit
EU-RoHS-Richtlinie
|
Übererfüllung der Konformität (außerhalb EU RoHS-Scope) EU-RoHS-Deklaration |
| Circular Econmomy-Eignung | Keine besonderen Recycling-Verfahren erforderlich |
| Verpackung ohne Kunststoff | Ja |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| CO2-Bilanz (kg CO2 eq.) | 1 |
| Total lifecycle Carbon footprint | 0.7 kg CO2 eq. |
| SCIP-Nummer | 24c7e79a-7150-421c-95a0-a8ddb3befe3e |
| Carbon footprint of the manufacturing phase [A1 to A3] | 0.64194 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 0.6 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.016244 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 0 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.0034257 |
| CO₂-Fußabdruck der Installationsphase [A5] | 0 kg CO2 eq. |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 0 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.014396 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 0 kg CO2 eq. |
| EU-RoHS-Richtlinie | Konform |
