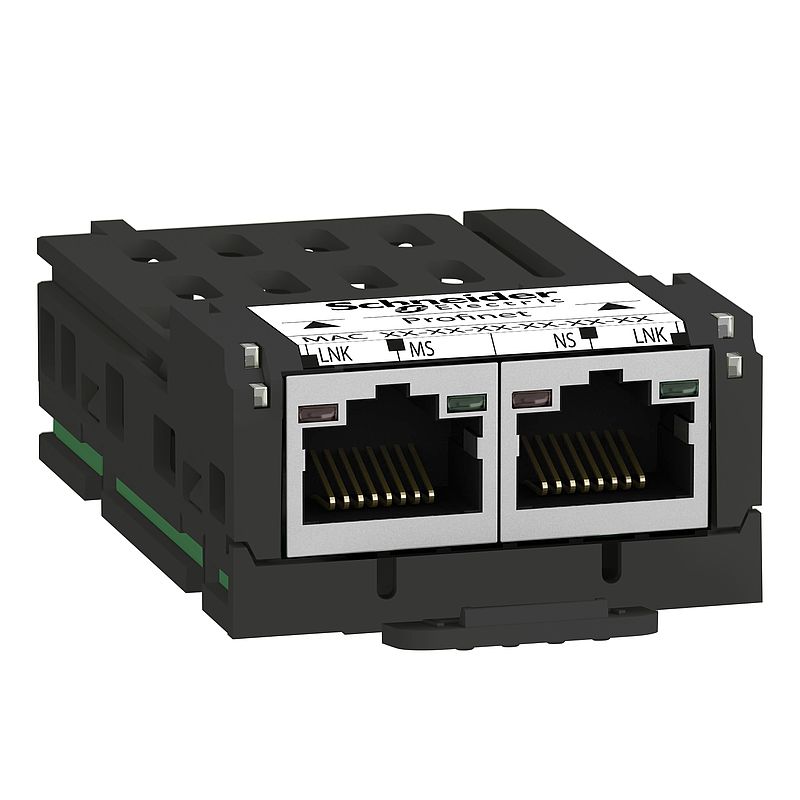

Kommunikationsmodul Profinet, Altivar
VW3A3647
Materialpreisgruppe
: CI
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Instruction sheet
|
Download |
|
User guide
|
Download |
|
How to video
|
Video anzeigen |
|
Software - Data Library
|
Download |
|
Environmental Disclosure
|
Download |
|
Catalog
|
Download |
|
Declaration of conformity
|
Download |
|
Certificate
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | Altivar |
| Produkt- oder Komponententyp | Kommunikationsmodul |
| Zubehör / Teilekategorie | Kommunikationszubehör | Zusatzmerkmale |
| Kompatible Produktfamilie | Altivar Prozess ATV600 Altivar Prozess ATV900 Altivar Prozess Modular Altivar 340 |
| Kommunikationsprotokoll | Profinet |
| Elektrische Verbindung | 2 Stecker RJ45, Ethernet |
| Übertragungsgeschwindigkeit | 10/100 Mbps |
| Displaytyp | 1 LED für MS (Modulstatus) 1 LED für NS (Netzwerkstatus) 1 LED für TX/RX (Übertragung/Empfang Port 1) 1 LED für TX/RX (Übertragung/Empfang Port 2) |
| Busprofil | PROFIdrive S2 redundancy |
| Produktgewicht | 0,3 kg |
| Produktkompatibilität | ATV600 ATV900 ATV340 |
Montage |
| Normen | IEC 61800-7-201 (CiA 402) | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 5,200 cm |
| VPE 1 Breite | 6,500 cm |
| VPE 1 Länge | 9,200 cm |
| Verpackungsgewicht (Lbs) | 65,000 g |
| VPE 2 Art | S03 |
| VPE 2 Menge | 100 |
| VPE 2 Höhe | 30,000 cm |
| VPE 2 Breite | 30,000 cm |
| VPE 2 Länge | 40,000 cm |
| VPE 2 Gewicht | 7,057 kg | Vertragliche Gewährleistung |
| Gewährleistung | 18 Monate |
Nachhaltigkeit
Nachhaltigkeit
EU-RoHS-Richtlinie
|
Übererfüllung der Konformität (außerhalb EU RoHS-Scope) EU-RoHS-Deklaration |
| Circular Econmomy-Eignung | Keine besonderen Recycling-Verfahren erforderlich |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Ja |
| SCIP-Nummer | B80ccf8f-af61-4523-b39b-7beb0e5fe17e |
| Sustainable packaging | Nein |
20 Dokumente
| ATS480 PROFINET Manual with VW3A3647 10/04/25 · User guide | 5,6 MB | Download |
| VW3A3647 EU-RoHS-Erklärung
04/04/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| VW3A3647 China-RoHS-Erklärung
04/04/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| PROFINET GSDML VW3A3647 files 01/04/25 · Software - Data Library | 0,1 MB | Download |
| ATS490 PROFINET Manual with VW3A3647 28/03/25 · User guide | 8,6 MB | Download |
| Discover the catalog for Altivar Machine ATV340 15/03/25 · Catalog | 18,3 MB | Download |
| ATV340 PROFINET Manual for VW3A3647 15/03/25 · User guide | 9,7 MB | Download |
| Ethernet/IP, ModbusTCP communication module - 2RJ45, Product Environmental Profile 15/03/25 · Environmental Disclosure | 0,4 MB | Download |
| VW3A3647 PROFINET EU Declaration of Conformity 15/03/25 · Declaration of conformity | 0,4 MB | Download |
| VW3A3647 PROFINET UK Declaration of Conformity 15/03/25 · Declaration of conformity | 0,3 MB | Download |
| Catalogue Altivar Soft Starter ATS480 Français 01/2022 15/03/25 · Catalog | 15,1 MB | Download |
| ATV600 PROFINET manual - VW3A3647 15/03/25 · User guide | 9,7 MB | Download |
| VW3A3647_Profinet_Certificate 15/03/25 · Certificate | 0,1 MB | Download |
| video: How to setup S2 Redundancy communication between Altivar and Siemens PLCs ? (using PROFINET module VW3A3647 in TIA Portal) 15/03/25 · How to video | 0,2 MB | Video anzeigen |
| ATV900 PROFINET Manual (VW3A3647) 15/03/25 · User guide | 9,7 MB | Download |
| Instruction sheet - option modules
15/03/25 · Instruction sheet |
6,9 MB | Download |
| 01/01/70 Certificate | 0,0 MB | Download |
| 01/01/70 Declaration of conformity | 0,0 MB | Download |
| 01/01/70 Declaration of conformity | 0,0 MB | Download |
| 01/01/70 Catalog | 0,0 MB | Download |
