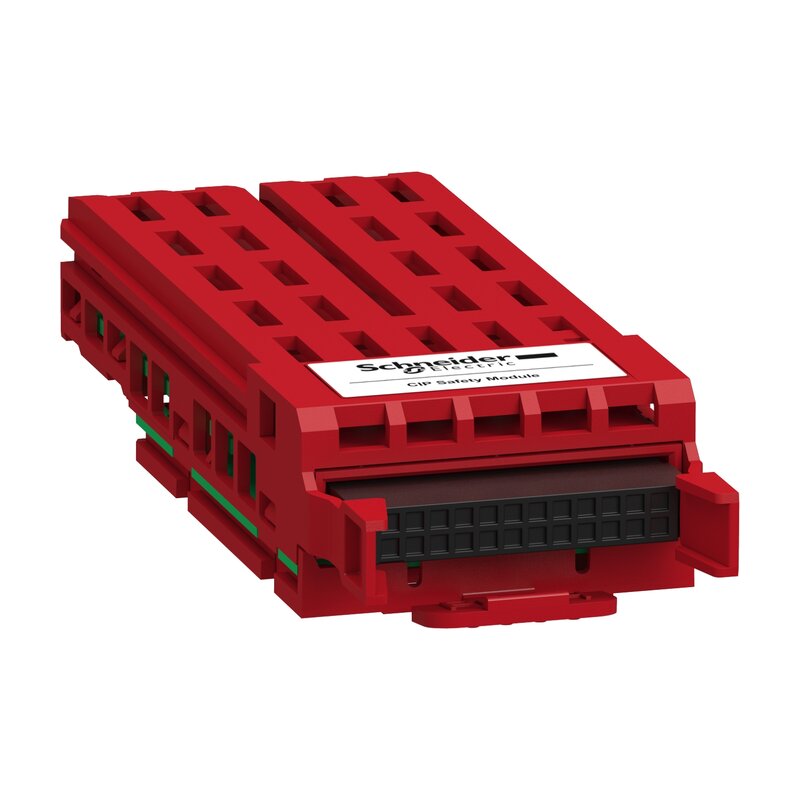

Safety over Ethernet IP option card, Altivar
VW3A3809
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Software - Data Library
|
Download |
|
Declaration of conformity
|
Download |
|
Circularity Profile
|
Download |
|
Instruction sheet
|
Download |
|
User guide
|
Download |
|
Catalog
|
Download |
|
Certificate
|
Download |
|
Environmental Disclosure
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | Altivar Maschine ATV340 Altivar Prozess ATV900 |
| Produkt- oder Komponententyp | CIP Safety over Ethernet IP module |
| Produktspezifische Anwendung | Umformtechnik Materialtransport Architecture without suspended/vertical or pulling loads |
Zusatzmerkmale |
| Sicherheitsfunktion | STO (Safe Torque Off) Sicher abgeschaltetes Drehmoment |
| Eingangstyp | CIP I/O 1 x Sicherheitseingang 1 x Safety output 1 x |
| Sicherheitsniveau | Type 2a Type 2b |
| Montagehalterung | Integrated in drive |
| Produktgewicht | 0,02 kg |
| Breite | 41 mm |
| Höhe | 109 mm |
| Tiefe | 23,25 mm | Montage |
| Normen | IEC/EN 61800-5-2 |
| Produktzertifizierungen | ODVA CT18-ES | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 6,600 cm |
| VPE 1 Breite | 13,000 cm |
| VPE 1 Länge | 19,000 cm |
| Verpackungsgewicht (Lbs) | 165,000 g |
| VPE 2 Art | S03 |
| VPE 2 Menge | 16 |
| VPE 2 Höhe | 30,000 cm |
| VPE 2 Breite | 30,000 cm |
| VPE 2 Länge | 40,000 cm |
| VPE 2 Gewicht | 3,372 kg | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 18 |
Nachhaltigkeit
Nachhaltigkeit
| Total lifecycle Carbon footprint | 121 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 10.03 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 10 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.020515 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 0 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.0066608 |
| CO₂-Fußabdruck der Installationsphase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 111.3 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 111 kg CO2 eq. |
Quecksilberfrei
|
Ja |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.069065 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 0.1 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 121 |
| Verpackung mit Recycling-Karton | Nein |
| Verpackung ohne Kunststoff | Nein |
|
EU-RoHS-Richtlinie
|
Übererfüllung der Konformität (außerhalb EU RoHS-Scope) EU-RoHS-Deklaration |
| SCIP-Nummer | 302b02b7-9c64-4061-a82e-b43846bf2bb6 |
| Rücknahme | Ja |
| EU-RoHS-Richtlinie | Freistellungskonform |
| REACh-Verordnung | Produkt beinhaltet besorgniserregende Stoffe (SVHC) über dem Schwellwert |
