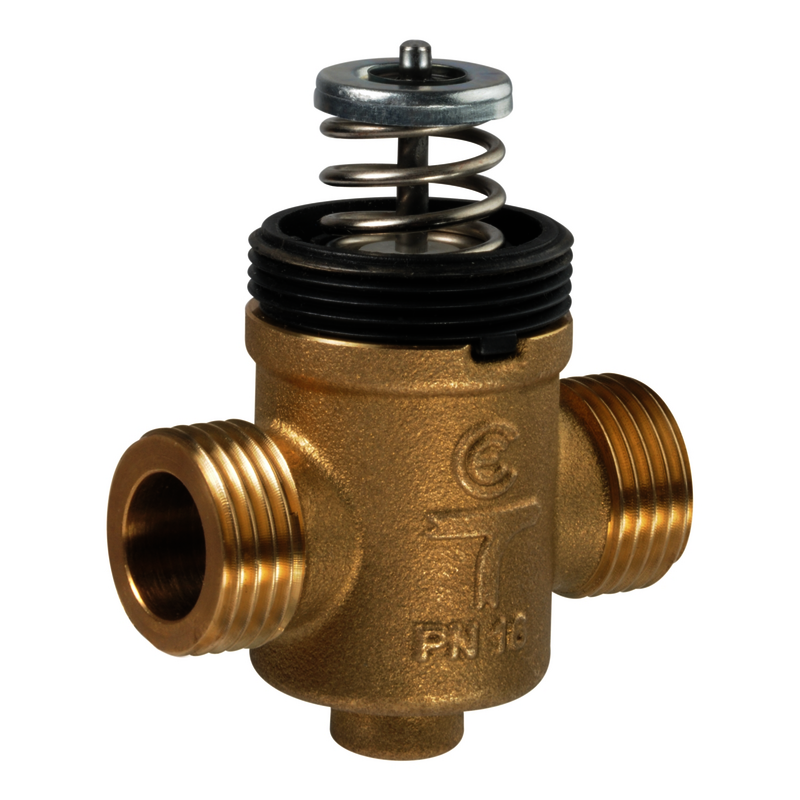

2-Wege-Zonenventil (DN15, G 1/2, 0,6 Kvs)
VZ208E-15BP03
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Specification guide
|
Download |
|
Environmental Disclosure
|
Download |
|
Instruction sheet
|
Download |
|
Specification sheet
|
Download |
Dieses Produkt ist kompatibel mit
Zubehörteile
Aktoren Spezifikationen
| Hauptmerkmale | |
|---|---|
| Produkt- oder Komponententyp | Ventil |
| Geräteanwendung | Gebläsekonvektoreinheit Kühldecke Endgerät |
| Medienkompatibilität | Glykol 25 % Glykol 30 % Wasser Glykol 50 % |
| Ventilanschlussgröße | G Außen |
| Ventilanschlussgröße | G 1/2A |
| Gehäusegröße | 15 mm (1/2 Zoll) |
| Rohrgröße | 15 mm |
| Durchfluss-Charakteristik | Uncharakterisiert |
| Durchflusskoeffizient | 0,6 kvs 0,69 cv |
| Druckklasse | PN16 |
| Druckflüssigkeit - max. Delta P leiser Betrieb | 62,05 kPa |
| Druckflüssigkeit - max. Delta P normale Lebensdauer | 255,1 kPa |
| Sitzleckage | Anschluss A: Klasse IV-S1 (0,005 %) |
| Schaftbewegung | Linear |
| Verkleidungsmaterial | Messing |
| Gehäusematerial | Messing |
| Schaftmaterial | Edelstahl AISI 303 |
| Sitzdichtungsmaterial | Anschluss A:EPDM (Ethylen-Propylen-Dien-Monomer) |
| Werkstoff der Spindeldichtung | EPDM (Ethylen-Propylen-Dien-Monomer) |
| Zielregion | Europa Asien-Pazifik. Australien. |
| Valve type | Zone |
| Valve configuration | 2-Wege | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 9,4 cm |
| VPE 1 Breite | 6,8 cm |
| VPE 1 Länge | 3,4 cm |
| Verpackungsgewicht (Lbs) | 140 g | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 18 |
Nachhaltigkeit
Nachhaltigkeit
| Total lifecycle Carbon footprint | 2 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 1.2841879825140388 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 1 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.03565981080366904 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 0 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.018711676758958785 |
| CO₂-Fußabdruck der Installationsphase [A5] | 0 kg CO2 eq. |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 0 kg CO2 eq. |
Quecksilberfrei
|
Ja |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.3674489839664857 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 0.4 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 2 |
| Verpackung mit Recycling-Karton | Ja |
| Verpackung ohne Kunststoff | Nein |
| Circular Econmomy-Eignung | Keine besonderen Recycling-Verfahren erforderlich |
| Rücknahme | Ja |
| EU-RoHS-Richtlinie | https://download.schneider-electric.com/files?p_Doc_Ref=VZ208E-15BP03_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.schneider-electric.com/files?p_Doc_Ref=VZ208E-15BP03_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 82 |
