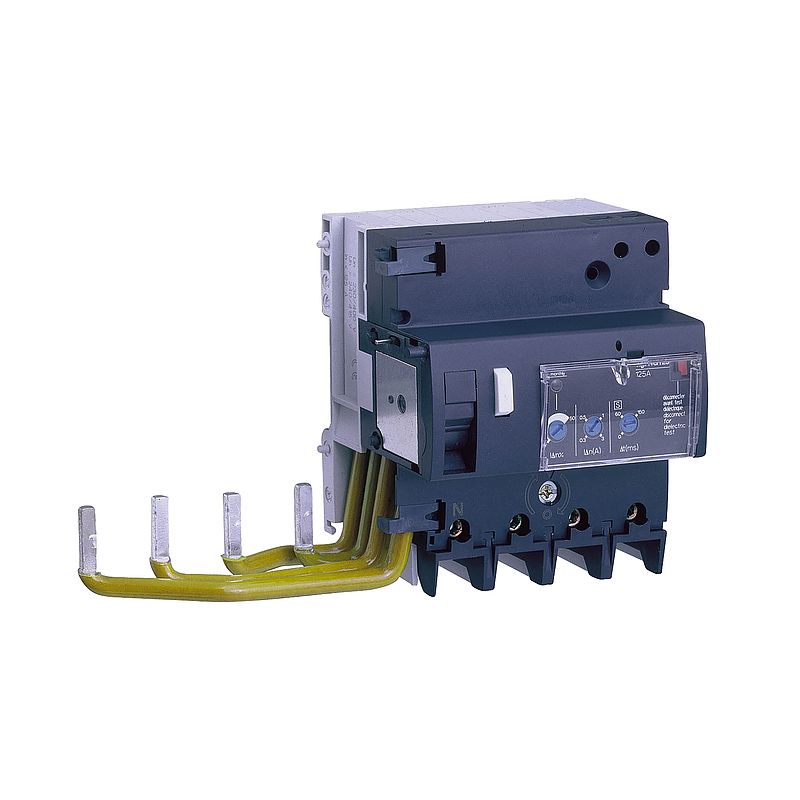

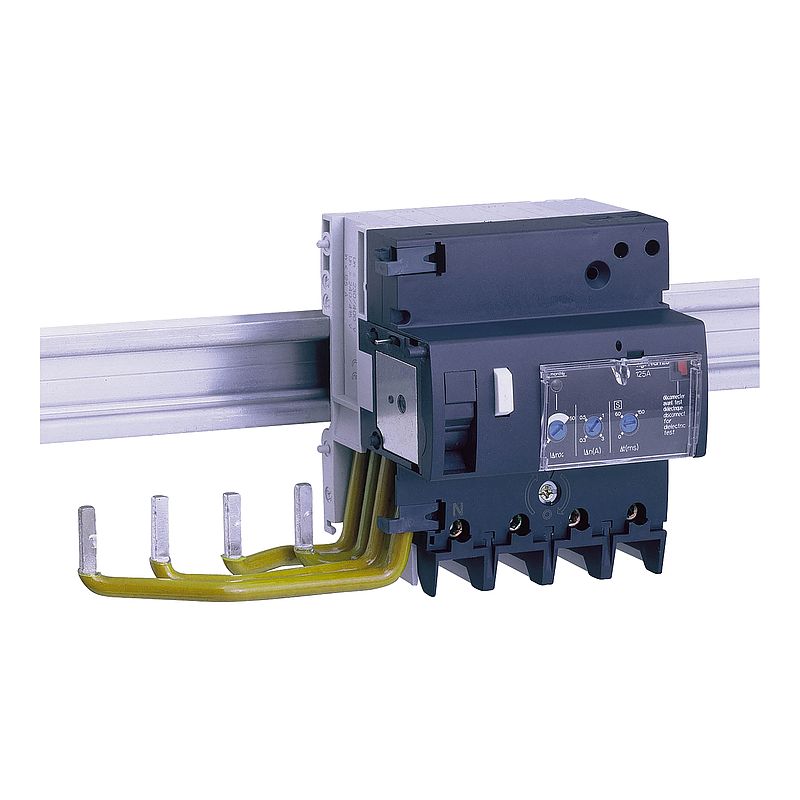

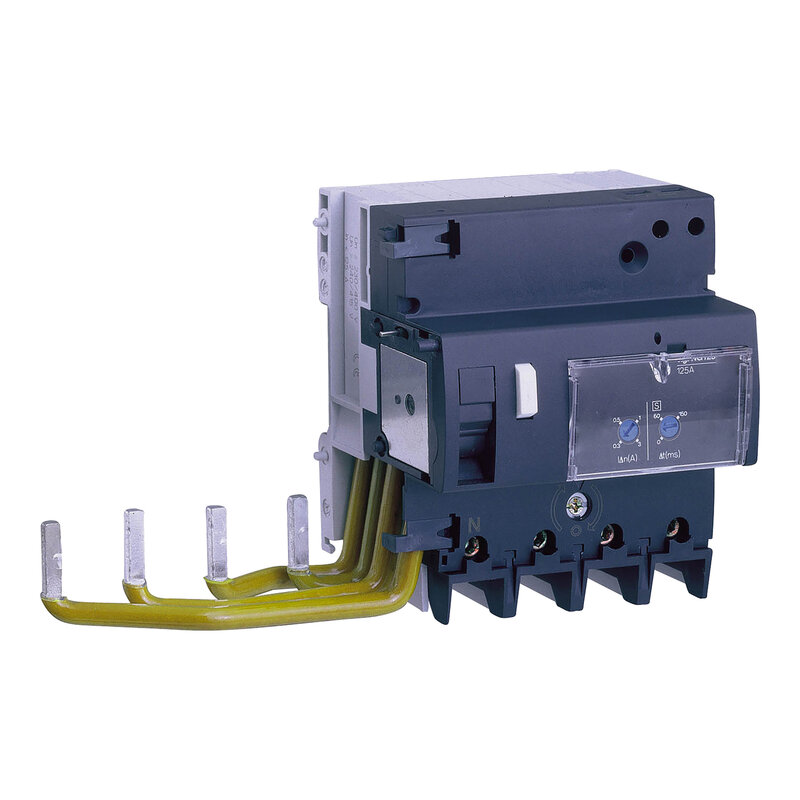

FI-Block Vigi NG125, 4P, 125A, 300-3000mA, Typ A

19049

Hauptdokumente

Produktdatenblatt Download
Declaration of Conformity (Sustainability) Download
Catalog Download
CAD Download
Environmental Disclosure Download
User guide Download
Circularity Profile Download

Dieses Produkt ist kompatibel mit


Spezifikationen

Hauptmerkmale
Produkt- oder Komponententyp Zusätzliche Fehlerstrom-Schutzeinrichtungen
Kurzbezeichnung des Geräts Vigi NG125
Beschreibung der Pole 4P
[In] Bemessungsstrom 125 A
Netzwerktyp AC
Erdschlussempfindlichkeit 300 mA
1000 mA
500 mA
3000 mA
Erdschlussschutz Zeitverzögerung Unverzögert/selektiv/verzögert
Erdschluss-Schutzklasse Typ A
Normen IEC/EN 60947-2:Annex B
Baureihe Acti9
Produktname Acti9 Vigi NG125
Zusatzmerkmale
Geräteposition im System Abgang
Gruppeneingang
Netzwerkfrequenz 50/60 Hz
[Ue] Betriebsbemessungsspannung 230 - 415 V AC 50/60 Hz
Fehlerstrom-Auslösetechnik Spannungsunabhängig
[Ui] Bemessungs-Isolationsspannung 690 V AC 50/60 Hz entspricht IEC/EN 60947-2
[Uimp] Bemessungs-Stoßspannungsfestigkeit 8 kV entspricht IEC/EN 60947-2
Montagehalterung 35 mm symmetrische DIN-Schiene
elektrischer Anschluss für LS-Schalter Mit Schrauben
9-mm-Raster 11
Höhe 118 mm
Breite 207 mm
Tiefe 81 mm
Produktgewicht 0,8 kg
Elektrische Lebensdauer 10000 Zyklen entspricht IEC/EN 60947-2
Anschlüsse - Klemmen Tunnelklemmen10…50 mm² flexibel
Tunnelklemmen16…70 mm² fest
Drahtabisolierungslänge 20 mm
[M] Anzugsdrehmoment 6 Nm
Montage
Schutzart (IP) IP40 entspricht IEC/EN 60947-2
Verschmutzungsgrad 3 entspricht IEC/EN 60947-2
Elektromagnetische Verträglichkeit 8/20 µs Impulswiderstand, 5000 A entspricht IEC/EN 60947-2
Tropentauglichkeit 2 entspricht IEC 60068-1
Relative Luftfeuchtigkeit 95 % bei 55 °C
Betriebshöhe 2.000 m
Verpackungseinheiten
VPE 1 Art PCE
Anzahl der Geräte pro Packung 1
Verpackungsgewicht (Lbs) 875,0 g
VPE 1 Höhe 9,0 cm
VPE 1 Breite 13,4 cm
VPE 1 Länge 25,0 cm
VPE 2 Art S03
VPE 2 Menge 8
VPE 2 Gewicht 7,488 kg
VPE 2 Höhe 30,0 cm
VPE 2 Breite 30,0 cm
VPE 2 Länge 40,0 cm
Vertragliche Gewährleistung
Gewährleistung 18 months

Nachhaltigkeit

Nachhaltigkeit
EU-RoHS-Richtlinie Konform mit Ausnahmen
EU-RoHS-Deklaration
Quecksilberfrei Ja
SCIP-Nummer 93d5f95e-203e-4b60-8a26-236a123bd123
Verpackung ohne Kunststoff Ja
Verpackung mit Recycling-Karton Nein
Rücknahme Nein
CO2-Bilanz (kg CO2 eq.) 73
Silikonfrei Nein
Total lifecycle Carbon footprint 73 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3] 5.929784473324454
CO2 Fußabdruck am Ende der Betriebsdauer ​ 6 kg CO2 eq.
Carbon footprint of the distribution phase [A4] 0.1139812970462831
Durchschnittlicher Prozentsatz der ReponsibleSteel zertifizierten Metalle 0.1 kg CO2 eq.
Carbon footprint of the installation phase [A5] 0.04834229040225234
CO2 Fußabdruck während der Einrichtung 0 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6] 64.628
Carbon footprint of the use phase [B2, B3, B4, B6] 65 kg CO2 eq.
Sustainable packaging Nein
Carbon footprint of the end-of-life phase [C1 to C4] 1.9635006740427272
Carbon footprint of the end-of-life phase [C1 to C4] 2 kg CO2 eq.
WEEE Label Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen.
