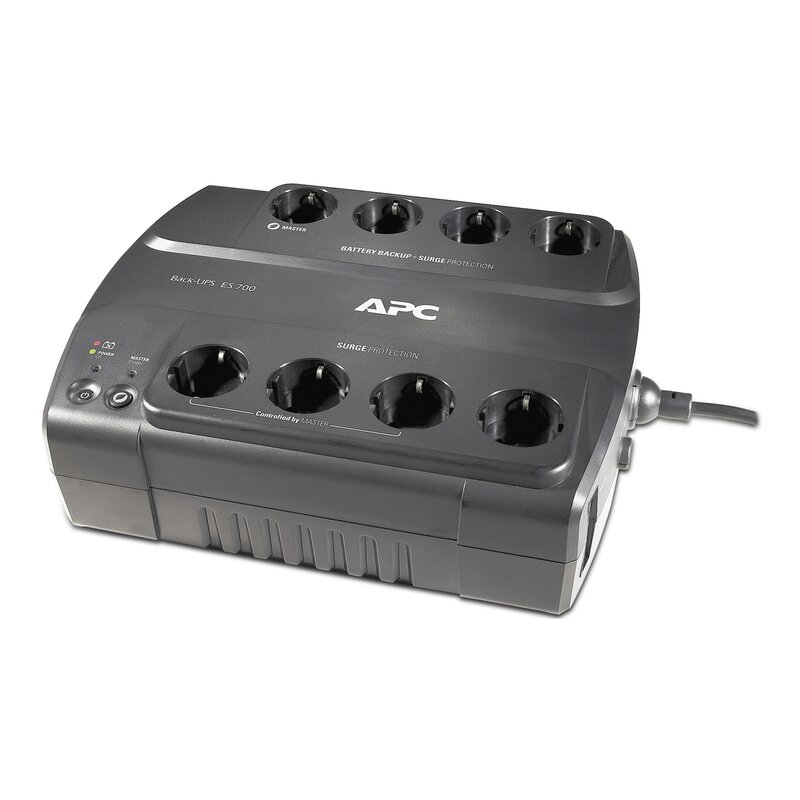

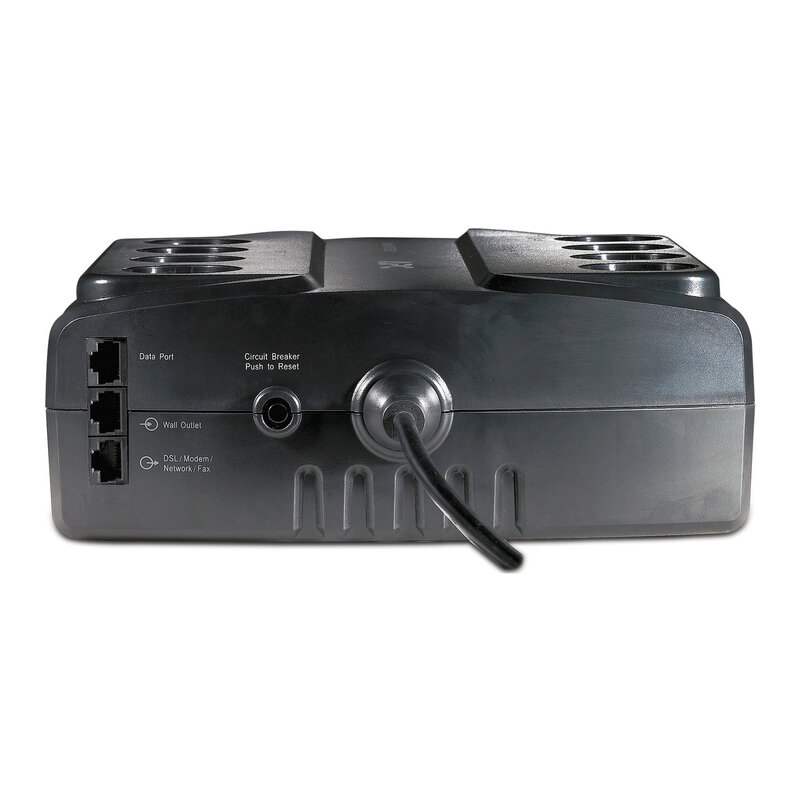

APC Power-Saving Back-UPS ES 700 VA, 230 V, 8 Ausgänge CEE 7/7, Batterie 12V, 9.0Ah
BE700G-GR
Hauptdokumente
 Produktdatenblatt |
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
Circularity Profile
|
Download |
|
Brochure
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Software - Release
|
Download |
|
Environmental Disclosure
|
Download |
Dieses Produkt ist kompatibel mit
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Softwares Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 230 V |
| Output voltage | 230 V |
| Rated power in W | 405 W |
| Rated power in VA | 700 VA |
| Input connection | CEE 7/7 |
| Output connection | 4 CEE 7/3 4 CEE 7/3 Spitze |
| Input frequency | 50/60 Hz +/-5 Hz automatische Erfassung |
| Efficiency at full load | 180 - 266 V |
| Maximum input current | 10 A |
| Switching current capacity | 10 A |
| Maximum configurable power in W | 405 W |
| Output frequency | 47 - 63 Hz Netzsynchronisation 50 Hz +/-0,1 % für 50 Hz Nominal nicht synchronisiert |
| UPS topology | Standby |
| Waveform type | Stufenweise Annäherung an eine Sinuswelle |
| Output voltage tolerance | +/-5 % statisch und 100 % Last |
| Maximum configurable power in VA | 700 VA |
| Transfer time | 6 ms typisch, 10 ms max. | Zusatzmerkmale |
| Cable length | 1,8 m |
| Provided equipment | CD mit Software Telefonkabel Benutzerhandbuch |
| Max runtime | 7 min. |
| Redundant | No |
| Color | Schwarz |
| Height | 89 mm |
| Width | 224 mm |
| Depth | 311 mm |
| Product weight | 6,93 kg |
| Mounting preference | No preference |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | Yes |
| Battery capacity | 9,0 AH |
| Surge energy rating | 310 J |
| Noise filtering | Mehrpolige Geräuschfilterung, 5 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: Gemäß UL1449 |
| Control panel | LED-Statusanzeige mit On-Line : auf Batteriebetrieb : Batterie und Überlastungsanzeigen ersetzen |
| Range of product | Back-UPS |
| Product or component type | Unterbrechungsfreie Stromversorgung | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Typical recharge time | 16 h |
| Battery voltage | 12 V |
| Battery charging power | 5 W bewertet |
| Battery life | 3…5 Jahre |
| RBC quantity | 1 | Montage |
| Product certification | CE |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for storage | -15…40 °C |
| Storage relative humidity | 0…95 % |
| Storage altitude | 0…15240 m |
| Acoustic level | 40 dBA | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 7,84 kg |
| VPE 1 Höhe | 12,7 cm |
| VPE 1 Breite | 40 cm |
| VPE 1 Länge | 27,9 cm |
| SCC14 | 10731304271700 |
| Verpackungseinheiten pro Palettenlage | 20 |
| Palettenlagen | 4 |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| SCIP-Nummer | 019b51cf-d7f1-4f06-ac85-1378fc94c7aa |
| CO2 Fußabdruck am Ende der Betriebsdauer | Energieeffizientes Produkt |
| Rücknahme | Ja |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=BE700G-GR_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Austauschbare Batterie | Vom Benutzer austauschbar |
