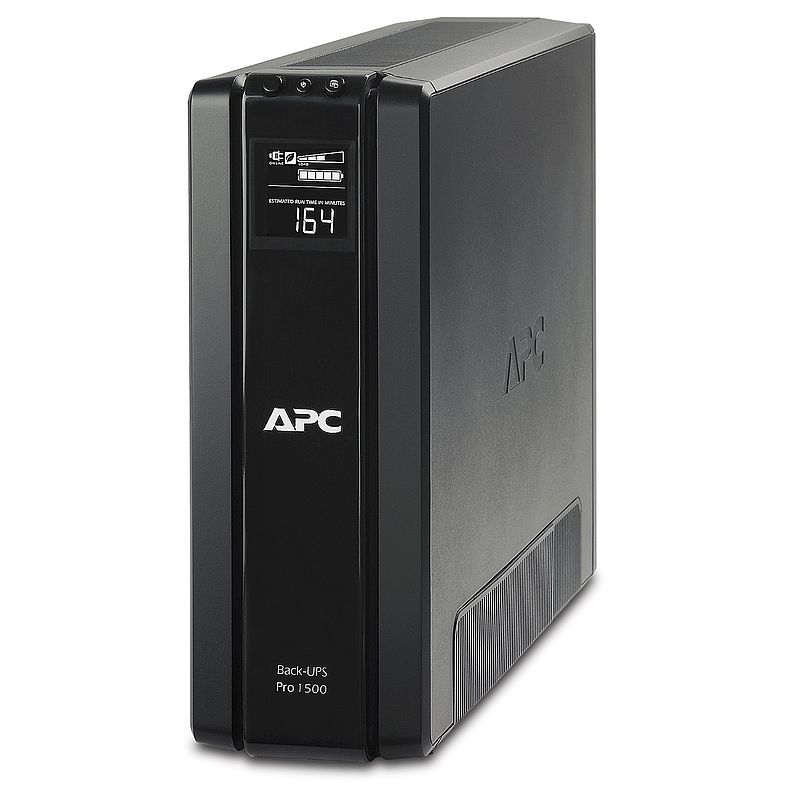

APC Power-Saving Back-UPS Pro 1500, 230 V, Schuko
BR1500G-GR
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
Circularity Profile
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Catalog
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
Batterien: Kompatible Produkte
Batterien (1)
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 230 V AC 1 Phase |
| Rated power in W | 865 W |
| Rated power in VA | 1500 VA |
| Output connection | 3 Schuko CEE 7 3 Schuko CEE 7 Spitze |
| Input frequency | 50 Hz +/-1 Hz 60 Hz +/-1 Hz |
| Efficiency at full load | 156 - 300 V einstellbar 176 - 294 V |
| Maximum configurable power in W | 865 W |
| Output frequency | 50/60 Hz +/-1 Hz Netzsynchronisation 50/60 Hz +/-1 Hz nicht synchronisiert |
| UPS topology | Line Interactive |
| Waveform type | Stufenweise Annäherung an eine Sinuswelle |
| Maximum configurable power in VA | 1500 VA |
| Transfer time | 10 ms typisch, 12 ms max. |
| Output voltage | 230 V AC 1 Phase |
| USB charging port | None | Zusatzmerkmale |
| Cable length | 1,5 m |
| Redundant | No |
| Height | 301 mm |
| Width | 112 mm |
| Depth | 382 mm |
| Product weight | 13 kg |
| Mounting preference | No preference |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | Yes |
| Battery capacity | 9,0 AH |
| Control panel | Multifunktions-LCD-Status- und Steuerkonsole |
| Surge energy rating | 441 J |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Data line protection | RJ11, Schutz für Modem/Fax/DSL (zwei Drähte, eine Leitung) |
| Range of product | Back-UPS Pro |
| UPS connectivity | USB port |
| Battery type | Lead-acid internal included |
| Mounting mode | Tower | Montage |
| Product certification | BSI 1363 CE NEMKO |
| Equipment protection policy | Kompletter Nutzungszeitraum: 200.000 AUD Kompletter Nutzungszeitraum: 150.000 Euro Kompletter Nutzungszeitraum: 75.000 GBP |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage relative humidity | 0…95 % |
| Storage altitude | 0…15240 m |
| Acoustic level | 45 dBA |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Batterien und Überbrückungszeit |
| Typical recharge time | 8 h |
| RBC quantity | 1 |
| Battery voltage | 24 V |
| Battery charging power | 23 W bewertet |
| Battery life | 3…5 Jahre |
| Battery type | Bleisäurebatterie | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 13,880 kg |
| VPE 1 Höhe | 24,000 cm |
| VPE 1 Breite | 39,000 cm |
| VPE 1 Länge | 48,500 cm |
| SCC14 | 10731304286872 |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 2 Art | P12 |
| VPE 2 Menge | 6 |
| VPE 2 Höhe | 90,000 cm |
| VPE 2 Breite | 80,000 cm |
| VPE 2 Länge | 120,000 cm |
| VPE 2 Gewicht | 95,280 kg | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| SCIP-Nummer | 019b51cf-d7f1-4f06-ac85-1378fc94c7aa |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| CO2 Fußabdruck am Ende der Betriebsdauer | Energieeffizientes Produkt |
| Rücknahme | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| Total lifecycle Carbon footprint | 495 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 132.99563636363635 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 133 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 1.4334254545454543 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 1 kg CO2 eq. |
| CO₂-Fußabdruck der Installationsphase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 358.35636363636365 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 358 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 1.2643418181818182 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 1 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 495 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=BR1500G-GR_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=BR1500G-GR_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 62 |
