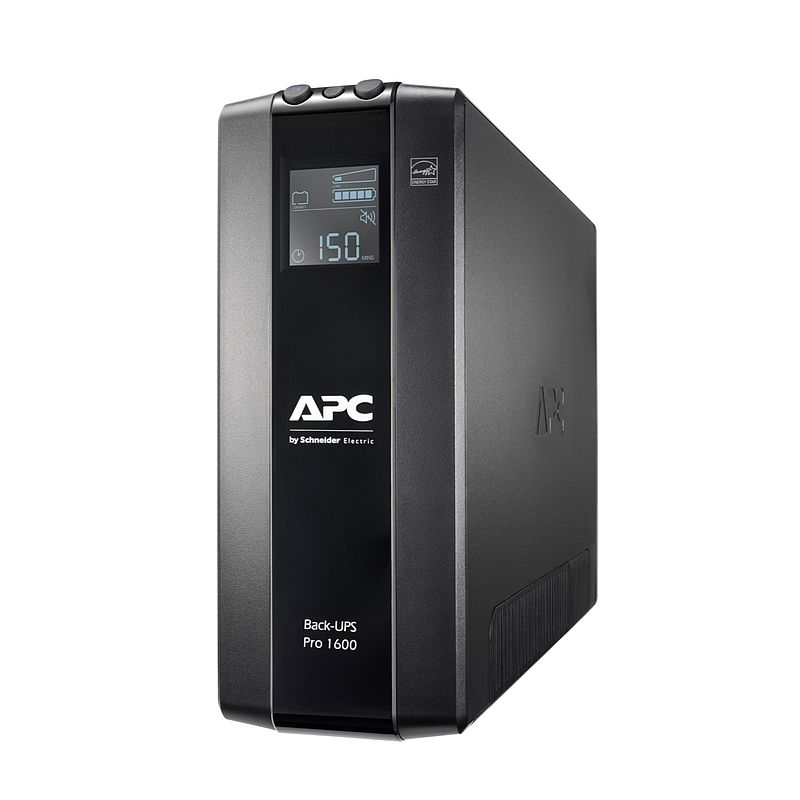

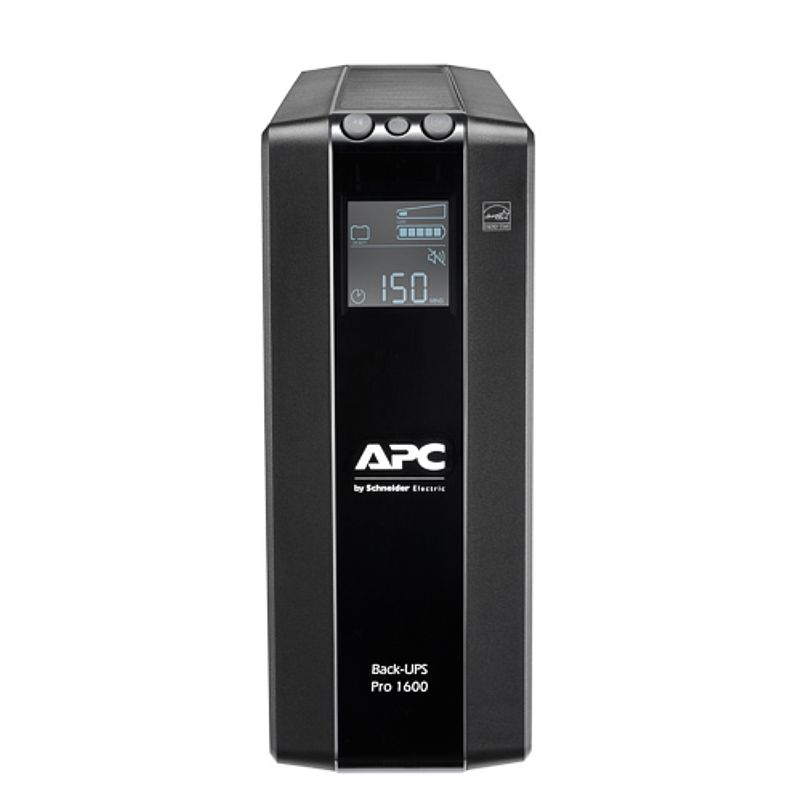

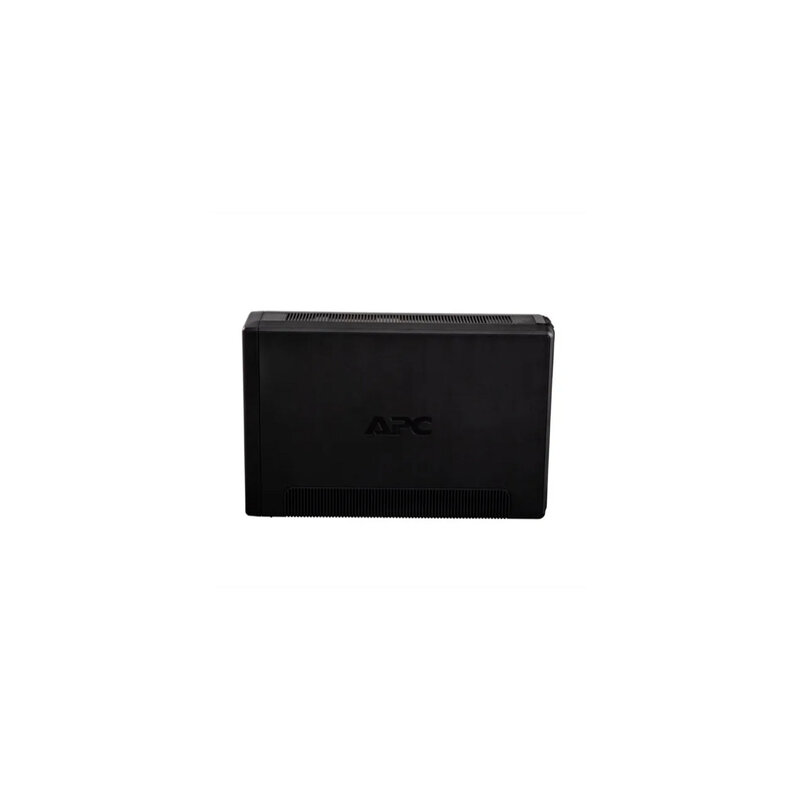

Back UPS Pro BR 1600 VA, 8 Ausgänge, AVR, LCD-Schnittstelle
BR1600MI
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
Circularity Profile
|
Download |
|
Brochure
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Catalog
|
Download |
|
Environmental Disclosure
|
Download |
|
Instruction sheet
|
Download |
|
Quick start guide
|
Download |
Dieses Produkt ist kompatibel mit
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 230 V AC 1 Phase |
| Rated power in W | 960 W |
| Rated power in VA | 1600 VA |

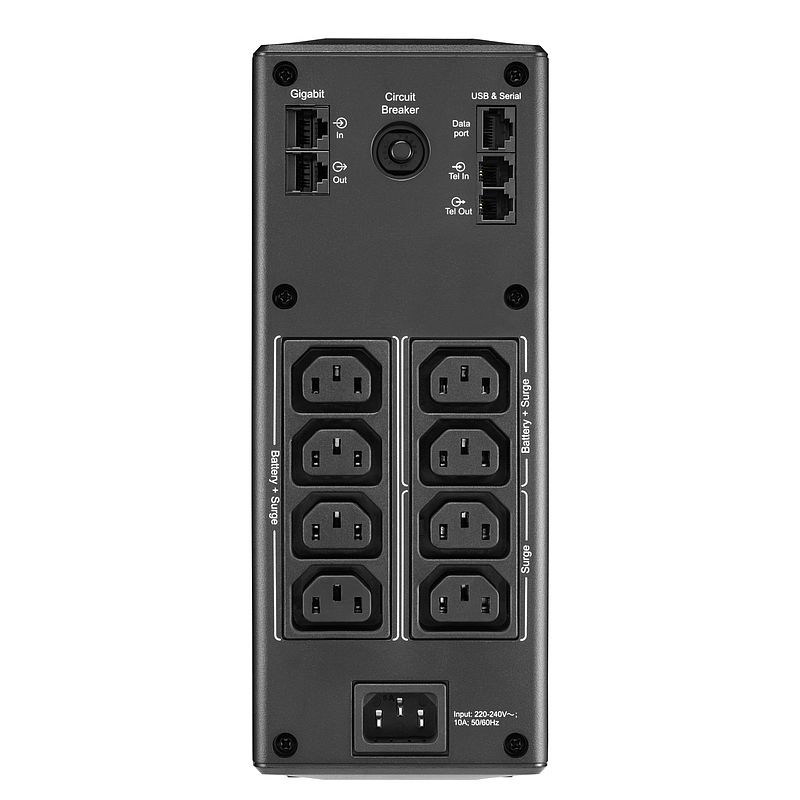

| Output connection | 6 IEC 60320 C13 2 IEC 60320 C13 Spitze |
| Input frequency | 50/60 Hz +/-3 Hz automatische Erfassung |
| Efficiency at full load | 176 - 294 V |
| Maximum input current | 10 A |
| Switching current capacity | 10 A |
| Maximum configurable power in W | 960 W |
| Output frequency | 50/60 Hz +/-1 Hz Netzsynchronisation |
| UPS topology | Line Interactive |
| Maximum configurable power in VA | 1600 VA |
| Output voltage | 230 V AC 1 Phase |
| Input connection | IEC 60320 C14 |
| Type of USB power supply | None | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Typical recharge time | 16 h |
| RBC quantity | 1 |
| Battery voltage | 24 V |
| Battery charging power | 11 W bewertet |
| Battery life | 3…5 Jahre | Zusatzmerkmale |
| Redundant | No |
| Color | Schwarz |
| Height | 250 mm |
| Width | 100 mm |
| Depth | 382 mm |
| Product weight | 10,9 kg |
| Mounting preference | No preference |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | Yes |
| Battery capacity | 9,0 AH |
| Control panel | Multifunktions-LCD-Status- und Steuerkonsole |
| Surge energy rating | 509 J |
| Noise filtering | Mehrpolige Geräuschfilterung, 10 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: unverzögert |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : Überlast-Dauertonalarm |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Back-UPS Pro |
| UPS connectivity | USB port |
| Battery type | Lead-acid internal included |
| Mounting mode | Tower | Montage |
| Product certification | A-Tick C-Tick CE EAC RCM TISI |
| Marking | GS-Zeichen |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15240 m |
| Acoustic level | 45 dBA |
| Heat dissipation | 21,5 Btu/h |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 11,65 kg |
| VPE 1 Höhe | 33 cm |
| VPE 1 Breite | 22,5 cm |
| VPE 1 Länge | 48,5 cm |
| SCC14 | 10731304346910 |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
| SCIP-Nummer | 019b51cf-d7f1-4f06-ac85-1378fc94c7aa |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| CO2 Fußabdruck am Ende der Betriebsdauer | Energieeffizientes Produkt |
| Rücknahme | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| Total lifecycle Carbon footprint | 415 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 111.62818181818182 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 112 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 1.2031272727272726 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 1 kg CO2 eq. |
| CO₂-Fußabdruck der Installationsphase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 300.7818181818182 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 301 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 1.0612090909090908 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 1 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 415 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=BR1600MI_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=BR1600MI_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 62 |
