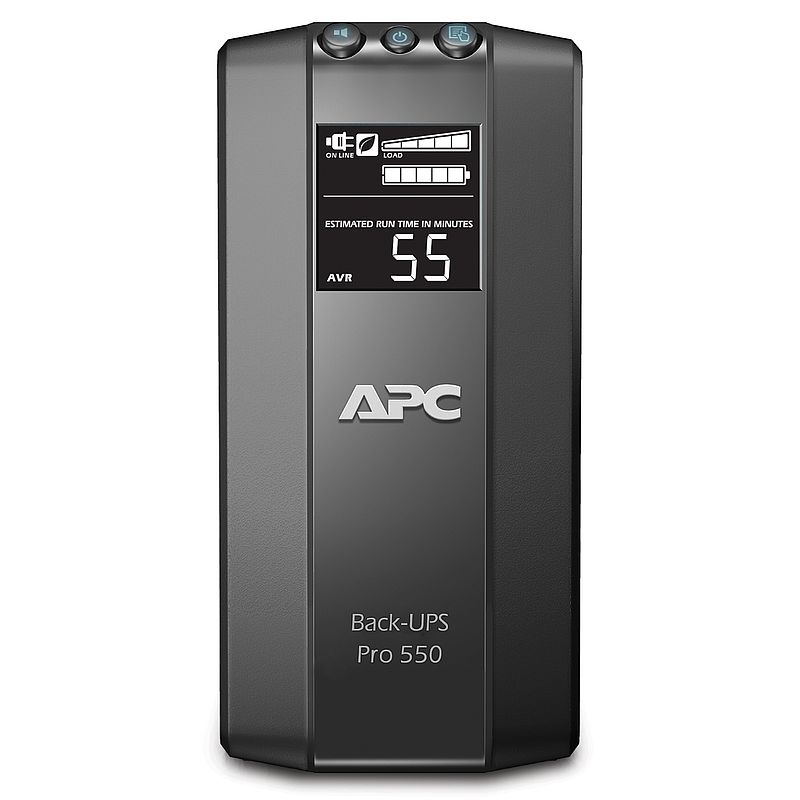

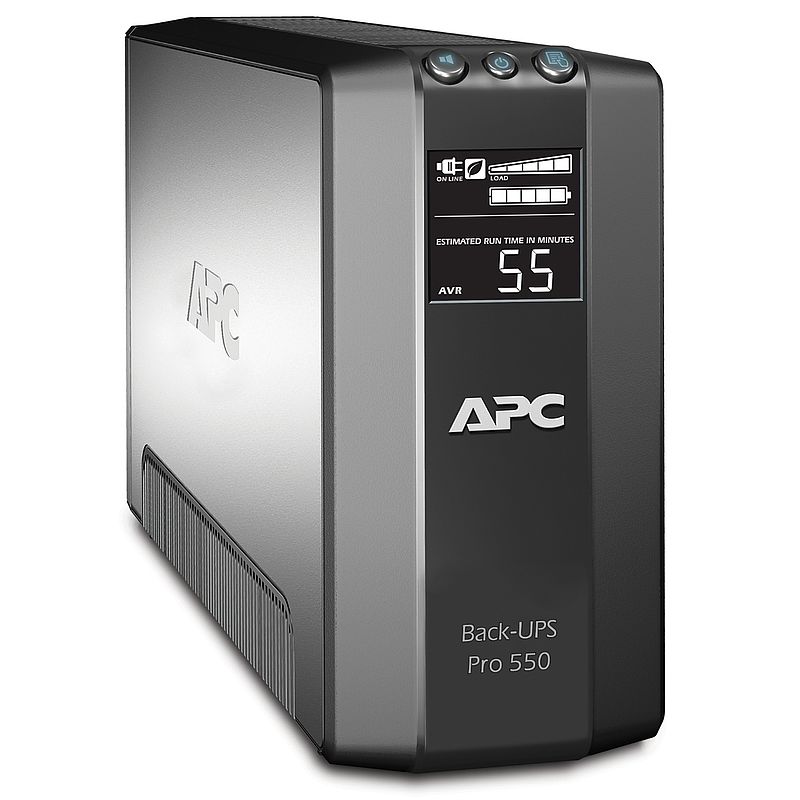

Stromsparende APC-Back-UPS Pro 550, Batterie 12V, 7.0Ah
BR550GI
Hauptdokumente
 Produktdatenblatt |
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
Circularity Profile
|
Download |
|
Brochure
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Handout
|
Download |
|
Instruction sheet
|
Download |
|
User guide
|
Download |
|
Catalog
|
Download |
|
Certificate
|
Download |
|
Environmental Disclosure
|
Download |
Dieses Produkt ist kompatibel mit
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 230 V |
| Rated power in W | 330 W |
| Rated power in VA | 550 VA |

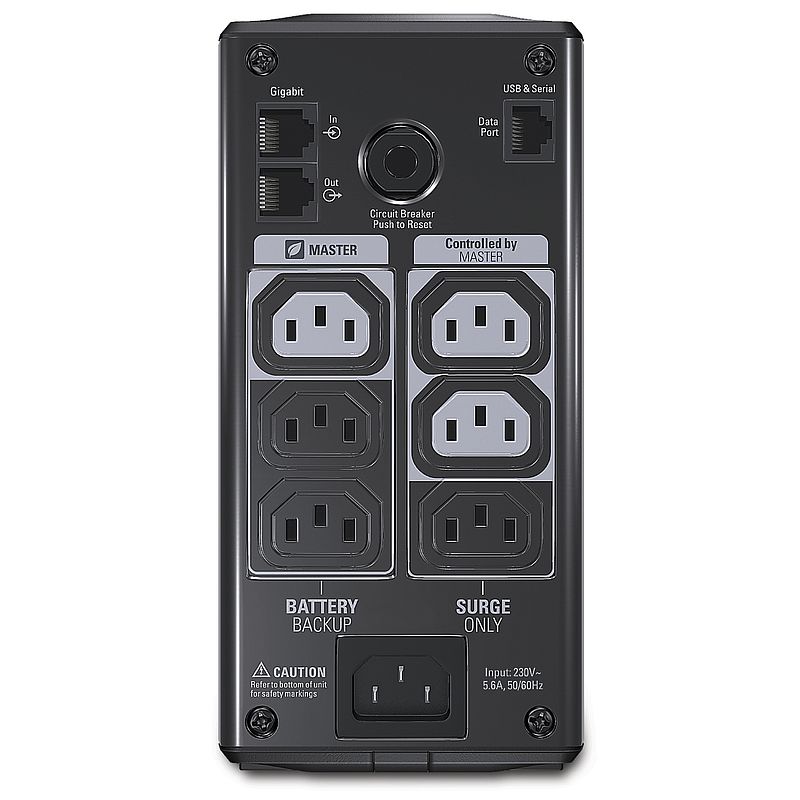

| Output connection | 3 IEC 60320 C13 3 IEC 60320 C13 Spitze 2 IEC-Steckbrücken Spitze |
| Input frequency | 50/60 Hz +/-3 Hz automatische Erfassung |
| Efficiency at full load | 155 - 290 V einstellbar 176 - 282 V |
| Maximum input current | 6 A |
| Switching current capacity | 7 A |
| Maximum configurable power in W | 330 W |
| Output frequency | 50 Hz Netzsynchronisation |
| UPS topology | Line Interactive |
| Waveform type | Stufenweise Annäherung an eine Sinuswelle |
| Maximum configurable power in VA | 550 VA |
| Transfer time | 6 ms typisch, 10 ms max. | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Typical recharge time | 12 h |
| RBC quantity | 1 |
| Battery voltage | 12 V |
| Battery charging power | 5 W bewertet |
| Battery life | 3…5 Jahre |
| Battery graph comment | Dieses Diagramm basiert auf gemessenen Autonomiezeitangaben. Alle Messungen wurden mit neuen, vollständig geladenen Batterien bei ohmscher Ausgangslast (LF = 1,0) durchgeführt. Die tatsächliche Autonomiezeit kann von den Werten in diesem Diagramm abweichen. Die tatsächliche Autonomiezeit ist abhängig von verschiedenen Variablen wie Alter der Batterie, Batterieladezustand, Umgebungsbedingungen und Eigenschaften der angeschlossenen Last | Zusatzmerkmale |
| Redundant | No |
| Color | Schwarz |
| Height | 19 cm |
| Width | 9,1 cm |
| Depth | 31 cm |
| Product weight | 6,53 kg |
| Mounting preference | No preference |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | No |
| Battery capacity | 7,0 AH |
| Control panel | Multifunktions-LCD-Status- und Steuerkonsole |
| Surge energy rating | 420 J |
| Noise filtering | Mehrpolige Geräuschfilterung, 10 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: unverzögert |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : Überlast-Dauertonalarm | Montage |
| Product certification | A-Tick C-Tick CE GOST |
| Marking | GS-Zeichen |
| Equipment protection policy | Kompletter Nutzungszeitraum: 200.000 AUD Kompletter Nutzungszeitraum: 150.000 Euro Kompletter Nutzungszeitraum: 75.000 GBP |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage relative humidity | 0…95 % |
| Storage altitude | 0…15240 m |
| Acoustic level | 45 dBA | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 7,71 kg |
| VPE 1 Höhe | 25,2 cm |
| VPE 1 Breite | 44,2 cm |
| VPE 1 Länge | 13,8 cm |
| SCC14 | 10731304266881 |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| SCIP-Nummer | 019b51cf-d7f1-4f06-ac85-1378fc94c7aa |
| CO2 Fußabdruck am Ende der Betriebsdauer | Energieeffizientes Produkt |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=BR550GI_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Rücknahme | Ja |
